Need a guide for the meaning of each OID in the MIB and its tree/relations

[Islam Abulaynain]

is there a guide for all proxysg or SSLV OIDs and its relations/tree

trap OID, polling OID

For example: how to know which OID is mapped to the sensor name of the CPU temperature and which OIDs is mapped for the CPU temprature units and value



Thanks in advance,

Islam

[Migration User]

Hi Islam,



                  You can download the MIBs for the device and then use any freely available MIB browser to open the tree. Each entry have a comment to let you know what it means and the expected value types.

[Aboonaim Golandaz]

Dear Islam, Refer this link http://www.circitor.fr/Mibs/Html/B/BLUECOAT-SG-PROXY-MIB.php

[Islam Abulaynain]

i have already did that but i need to know the relations between these OID.. for example there are different OIDs for the temprature value, tempature unit, temprature sensor name  .....another example: attack name, attack value ....and the comment for each OID in the MIB file has no info regarding this relationship

the question here ...how to get know this relation between different OIDs that discribe the same object

[Islam Abulaynain]

i aleady haven the device mib file but i need to know the relations between these OID.. for example there are different OIDs for the temprature value, tempature unit, temprature sensor name  .....another example: attack name, attack value ....and the comment for each OID in the MIB file has no info regarding this relationship

the question here ...how to get know this relation between different OIDs that discribe the same object

[Migration User]

Hi Islam,

                Can you explain a bit on your query ? Each OID points to a specific information only and is not expected to have a relation with another unless you are expecting to combine the outcomes of multiple queries and then come out with a different value altogether.



[Islam Abulaynain]

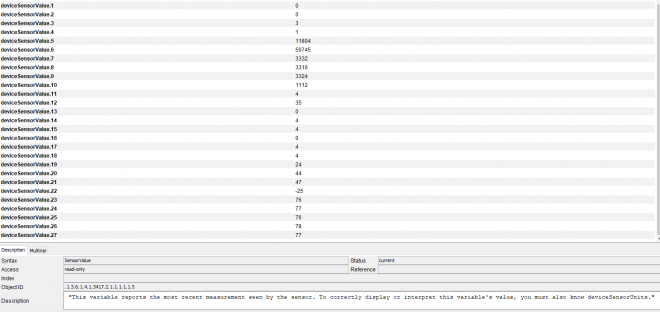

As shown in above screenshot, the OID ".1.3.6.1.4.1.3417.2.1.1.1.1.1.5" with name "deviceSensorValue" on the SSLVA can return all these values

the same for the below objects:



the question is:

what is the mapping between the several values returtned from each of the above objects? it's supposed that the each value from the deviceSensorName should be mapped to its relevant of the unit, status, code,  ...etc



[Migration User]

Hi Islam,



                 Yes, each of these values will be that of the respective deviceSensorName. If you do a SNMP get bulk in each of sub branch, you will get to see all of this as in below screenshot. I did for deviceSensorName, deviceSensorValue and deviceSensorUnits to get this
