In this Article I will show you how to use a custom data type within the Script Component.

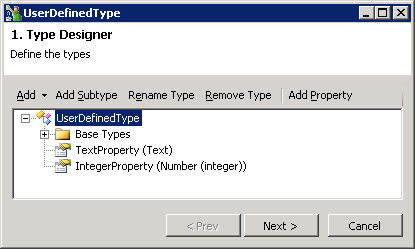

So you've created a "User Defined Type" from the Authoring section in a  Workflow Integration Component

 UserDefinedType
   TextProperty (Text)
   IntegerProperty (Number (integer))

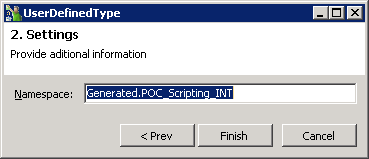

Make sure to note the Namespace:

 Generators
   UserDefinedType
     UserDefinedType

Now create a Workflow.

Use an  Add Data Element and create a element of your new Data Type.

Add some values

Search for a  Script Component. The Library may not have been added so should show in the  Unloaded Libraries section.

You could also add "LogicBase.Components.Scripting.dll" in the Libraries tab of the Project section.

Join this to your previous component.

Double click on this to start up the Wizard.

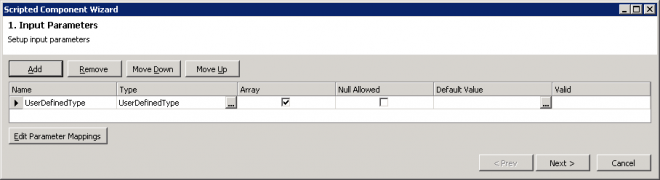

Add your variable name and choose it's Type:

Click on Edit Parameter Mappings.

Select the Parameter then choose the Data Source:

Click OK then Next.

Choose your "Result variable type" and "Result variable name":

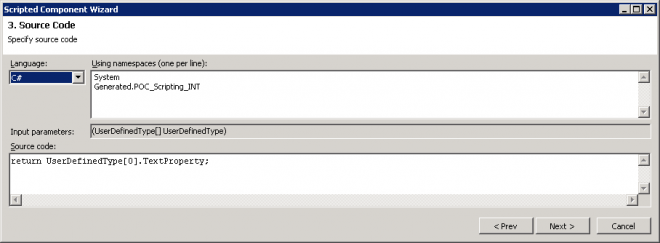

Now to the Source Code.

You can choose which one you prefer. (C#, VB.NET, JScript)

Here is where you need to add your previous namespace.

Now you can use your Type in the code:

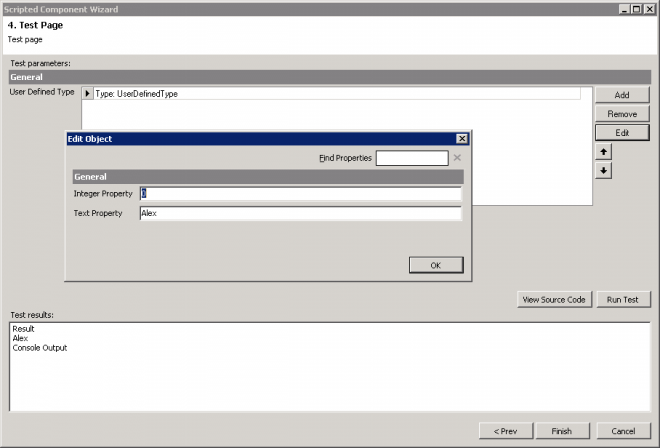

There is a handy test you can perform at the end to check it is working.
