VMware Player を起動するとすぐに終了してしまいます

  • 1.  VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 09, 2020 11:46 AM

    ホストをUbuntu20 として、VMware Workstation Player16のLinux版をインストールしました。

    インストールそのものは問題なく、起動も正常で、仮想マシンも正常に作成できました。

    ただ、その仮想マシンを起動すると、一瞬で消えてしまいます。

    動作の様子は動画に保存してみました。

    ハードウェアはDellのPowerEdge T110 II SASの1Tハードディスクと、16GBのメモリを積んでいます。

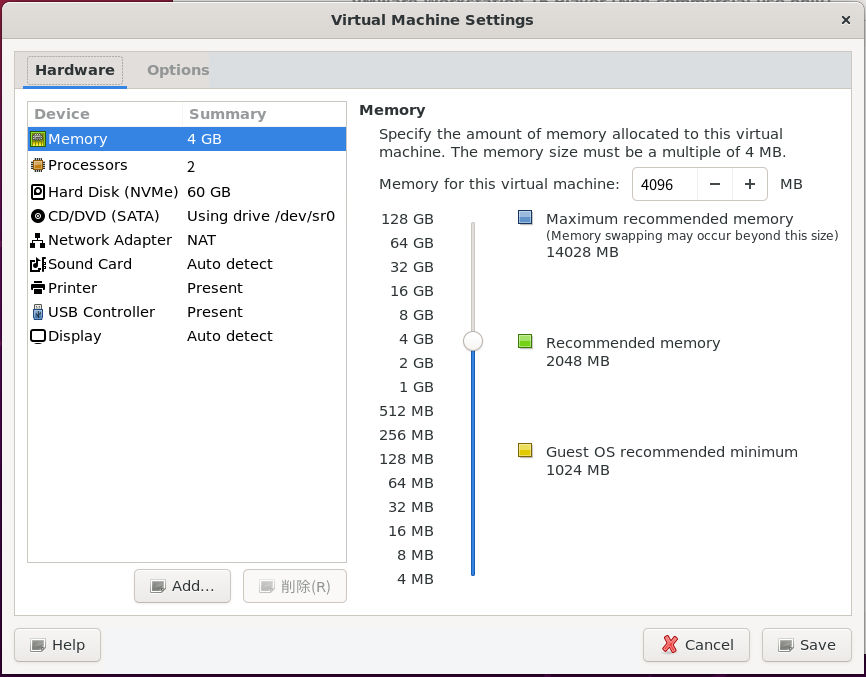

    仮想マシンの設定についてはこのように、60GBのストレージと、プロセッサは2つ、メモリは4GBを指定しましたので、Winndows10のみをテストするには不足はないと思います。






    この画面の仮想マシンは新たに作成しましたが、上記の動画のようにすぐに消えてしまうのを不審に思い、VMware Player 12の入った古いサーバーを持っていますので、こちらで起動した仮想のwindows10 を持ってきても、同様に起動せず、瞬時で消えてしまいました。

    何かこのように起動した途端に仮想マシンが消えてしまう現象を解決する方法は無いでしょうか？

    よろしくお願いします。



  • 2.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 09, 2020 07:10 PM

    こんにちは。

    起動した仮想マシンのウインドウが消えてしまう様子からは原因になりそうなヒントが少なそうなので、起動したタイミングで、何かログファイルに原因が記録されていないか確認してみるとよいかもしれません。

    VMware Workstationのログファイルは、/var/log/vmware ディレクトリの配下に出力されるはずです。

    参考KB： VMware Workstation の診断情報を収集する (1346)
    https://kb.vmware.com/s/article/1346?lang=ja

    また、仮想マシンごとのディレクトリに出力される vmware.log ファイルも確認してみるとよいと思います。

    以上です。ご参考まで。





  • 3.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 10, 2020 12:43 PM

    ありがとうございます。

    ログはみつかりました。

    内容によると/usr/lib/vmware/settingsが無いとのメッセージがありました。

    たしかのそのディレクトリはないのですが、これは何かセッティングをミスしたという事でしょうか？

    2020-11-09T19:20:55.200+09:00| usbArb| I005: Log for VMware USB Arbitration Service pid=608 version=e.x.p build=build-16739231 option=Release
    2020-11-09T19:20:55.200+09:00| usbArb| I005: The host is 64-bit.
    2020-11-09T19:20:55.200+09:00| usbArb| I005: Host codepage=UTF-8 encoding=UTF-8
    2020-11-09T19:20:55.200+09:00| usbArb| I005: Host is Linux 5.4.0-52-generic Ubuntu 20.04.1 LTS
    2020-11-09T19:20:53.287+09:00| usbArb| I005: VTHREAD 140054231085888 "usbArb" tid 608
    2020-11-09T19:20:54.712+09:00| usbArb| I005: DictionaryLoad: Cannot open file "/usr/lib/vmware/settings": No such file or directory.
    2020-11-09T19:20:54.712+09:00| usbArb| I005: [msg.dictionary.load.openFailed] Cannot open file "/usr/lib/vmware/settings": No such file or directory.
    2020-11-09T19:20:54.712+09:00| usbArb| I005: PREF Optional preferences file not found at /usr/lib/vmware/settings. Using default values.
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT --- GLOBAL SETTINGS /usr/lib/vmware/settings
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT --- NON PERSISTENT (null)
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT --- HOST DEFAULTS /etc/vmware/config
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT telemetryUUID = "794e14b5-165c-11eb-b7be-d4ae52bcd1bc"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT installerDefaults.autoSoftwareUpdateEnabled.epoch = "7088107763"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT installerDefaults.dataCollectionEnabled.epoch = "3557384424"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT installerDefaults.componentDownloadEnabled = "yes"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT installerDefaults.transferVersion = "1"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT product.name = "VMware Player"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT product.version = "16.0.0"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT installerDefaults.autoSoftwareUpdateEnabled = "yes"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT libdir = "/usr/lib/vmware"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT bindir = "/usr/bin"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT initscriptdir = "/etc/init.d"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT gksu.rootMethod = "su"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT NETWORKING = "yes"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT authd.fullpath = "/usr/sbin/vmware-authd"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT product.buildNumber = "16894299"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT player.product.version = "16.0.0"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT vix.config.version = "1"
    2020-11-09T19:21:01.352+09:00| usbArb| I005: DICT acceptEULA = "yes"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT acceptOVFEULA = "yes"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT installerDefaults.dataCollectionEnabled = "no"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT installerDefaults.dataCollectionEnabled.initialized = "yes"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT --- SITE DEFAULTS /usr/lib/vmware/config
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.help = "introduction.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.configurationEditor = "config_editor_newvm.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.ideConfig = "devices_virtualdrive.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.floppyConfig = "devices_floppy.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.mouseConfig = "devices_mouse.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.netConfig = "devices_netadapter.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.parallelConfig = "devices_parallel.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.serialConfig = "devices_serial.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.soundConfig = "devices_sound.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.memConfig = "configvm_memory.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.miscConfig = "configvm.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.usbConfig = "devices_usb.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.displayConfig = "configvm_display-problems.htm"
    2020-11-09T19:21:01.353+09:00| usbArb| I005: DICT tag.tools = "vmtools.htm"
    2020-11-09T19:21:01.529+09:00| usbArb| I005: USBArbRuleStore: Loading device rules from rules file.
    2020-11-09T19:21:01.529+09:00| usbArb| I005: VMware USB Arbitration Service Version 19.9.0
    2020-11-09T19:21:01.529+09:00| usbArb| I005: USBGL: USB Sysfs found at /dev/bus/usb
    2020-11-09T19:21:01.529+09:00| usbArb| I005: USBArb: Attempting to connect to existing arbitrator on /var/run/vmware/usbarbitrator-socket.
    2020-11-09T19:21:01.529+09:00| usbArb| I005: SOCKET creating new socket, connecting to /var/run/vmware/usbarbitrator-socket
    2020-11-09T19:21:01.529+09:00| usbArb| I005: SOCKET connect failed, error 2: No such file or directory
    2020-11-09T19:21:01.529+09:00| usbArb| I005: USBArb: No other USB arbitrator instance is currently running.
    2020-11-09T19:21:01.530+09:00| usbArb| I005: USBArb: listening socket 12 created successfully
    2020-11-09T19:21:01.530+09:00| usbArb| I005: USBArb: adding listening socket 12 to poll queue
    2020-11-10T21:12:44.290+09:00| usbArb| I005: USBArb: new socket connection estibalished: socket 4
    2020-11-10T21:12:44.290+09:00| usbArb| I004: USBArb: new client 55CDA9BDEED0 created, socket 4 added to poll queue
    2020-11-10T21:12:48.014+09:00| usbArb| I005: USBArb: Client 14575 connected (version:
    2020-11-10T21:13:01.465+09:00| usbArb| I004: USBArb: pipe 4 closed by client 55CDA9BDEED0
    2020-11-10T21:13:01.465+09:00| usbArb| I004: USBArb: removing client 55CDA9BDEED0: pid=14575, pipe=4
    2020-11-10T21:13:01.465+09:00| usbArb| I005: USBArb: Client 14575 disconnected



  • 4.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 13, 2020 12:10 AM

    こんにちは。

    私の環境では、Ubuntu 20.04.1 desktop をインストールして、そこに VMware Workstation Player 16 をインストールしてみたところ、仮想マシンのを起動することはできました。

    その場合でも、/var/log/vmware/vmware-usbarb-数字.log ファイルには Cannot open file "/usr/lib/vmware/settings": No such file or directory. はログファイルに出力されていたので、このエラー自体は直接関係なそうに見えました。

    一方、下記は私の環境では出てなかったので、もしかしたら何か関係しているかもしれません。

    2020-11-09T19:21:01.529+09:00| usbArb| I005: SOCKET creating new socket, connecting to /var/run/vmware/usbarbitrator-socket
    2020-11-09T19:21:01.529+09:00| usbArb| I005: SOCKET connect failed, error 2: No such file or directory

    ちなみに私の環境は、ubuntu インストール直後に、build-essential と libaio1 だけ apt install してから、Workstation Player をインストールしています。

    $ sudo apt install build-essential
    $ sudo apt install libaio1

    仮想マシンのディレクトリにある vmware.log の方には、何か出力されていなそうでしょうか？



  • 5.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 15, 2020 05:11 AM

    ありがとうございます。

    試して頂いて申し訳ありません。

    /var/run/vmware/usbarbitrator-socket　でGoogle検索してみましたが、名前の通りUSBに関するもののようです。

    build-essential と libaio1は試してみましたが、

    # apt install build-essential
    パッケージリストを読み込んでいます... 完了
    依存関係ツリーを作成しています
    状態情報を読み取っています... 完了
    build-essential はすでに最新バージョン (12.8ubuntu1.1) です。
    以下のパッケージが自動でインストールされましたが、もう必要とされていません:
    libfprint-2-tod1
    これを削除するには 'apt autoremove' を利用してください。
    アップグレード: 0 個、新規インストール: 0 個、削除: 0 個、保留: 13 個。
    # apt install libaio1
    パッケージリストを読み込んでいます... 完了
    依存関係ツリーを作成しています
    状態情報を読み取っています... 完了
    libaio1 はすでに最新バージョン (0.3.112-5) です。
    libaio1 は手動でインストールしたと設定されました。
    以下のパッケージが自動でインストールされましたが、もう必要とされていません:
    libfprint-2-tod1
    これを削除するには 'apt autoremove' を利用してください。
    アップグレード: 0 個、新規インストール: 0 個、削除: 0 個、保留: 13 個。


    私の方は、最小インストールだったと思います。

    起動した時のログは仮想マシンを作ったディレクトリにありました。

    2020-11-15T09:34:04.475+09:00| vmx| I005: Log for VMware Player pid=13771 version=16.0.0 build=build-16894299 option=Release
    2020-11-15T09:34:04.475+09:00| vmx| I005: The host is 64-bit.
    2020-11-15T09:34:04.475+09:00| vmx| I005: Host codepage=UTF-8 encoding=UTF-8
    2020-11-15T09:34:04.475+09:00| vmx| I005: Host is Linux 5.4.0-53-generic Ubuntu 20.04.1 LTS
    2020-11-15T09:34:04.458+09:00| vmx| I005: VTHREAD 140326766734272 "vmx" tid 13771
    2020-11-15T09:34:04.458+09:00| vmx| I005: DictionaryLoad: Cannot open file "/etc/vmware/vsphereFeatures/techPreview.cfg": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/etc/vmware/vsphereFeatures/techPreview.cfg": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: FeatureStateLib: Error while loading tech preview config file: /etc/vmware/vsphereFeatures/techPreview.cfg, using default (disabled) for all Tech Preview features.
    2020-11-15T09:34:04.458+09:00| vmx| I005: LOCALE ja_JP.UTF-8 -> ja
    2020-11-15T09:34:04.458+09:00| vmx| I005: Msg_SetLocaleEx: HostLocale=UTF-8 UserLocale=ja
    2020-11-15T09:34:04.458+09:00| vmx| I005: PREF early PreferenceGet(libdir), using default
    2020-11-15T09:34:04.458+09:00| vmx| I005: DictionaryLoad: Cannot open file "/usr/lib/vmware/messages/ja/vmware.vmsg": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/usr/lib/vmware/messages/ja/vmware.vmsg": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| W003: Cannot load message dictionary "/usr/lib/vmware/messages/ja/vmware.vmsg".
    2020-11-15T09:34:04.458+09:00| vmx| I005: DictionaryLoad: Cannot open file "/usr/lib/vmware/settings": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: Msg_Reset:
    2020-11-15T09:34:04.458+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/usr/lib/vmware/settings": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: ----------------------------------------
    2020-11-15T09:34:04.458+09:00| vmx| I005: ConfigDB: Failed to load /usr/lib/vmware/settings
    2020-11-15T09:34:04.458+09:00| vmx| I005: DictionaryLoad: Cannot open file "/home/kazuhiro/.vmware/config": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: Msg_Reset:
    2020-11-15T09:34:04.458+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/home/kazuhiro/.vmware/config": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: ----------------------------------------
    2020-11-15T09:34:04.458+09:00| vmx| I005: ConfigDB: Failed to load ~/.vmware/config
    2020-11-15T09:34:04.458+09:00| vmx| I005: OBJLIB-LIB: Objlib initialized.
    2020-11-15T09:34:04.458+09:00| vmx| I005: DictionaryLoad: Cannot open file "/usr/lib/vmware/settings": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/usr/lib/vmware/settings": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: PREF Optional preferences file not found at /usr/lib/vmware/settings. Using default values.
    2020-11-15T09:34:04.458+09:00| vmx| I005: DictionaryLoad: Cannot open file "/home/kazuhiro/.vmware/config": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/home/kazuhiro/.vmware/config": No such file or directory.
    2020-11-15T09:34:04.458+09:00| vmx| I005: PREF Optional preferences file not found at /home/kazuhiro/.vmware/config. Using default values.
    2020-11-15T09:34:04.459+09:00| vmx| I005: Fail to realpath: /usr/lib/vmware/lib/libcrypto.so.1.0.2-x86-64/libcrypto.so.1.0.2, errno=2
    2020-11-15T09:34:04.459+09:00| vmx| I005: Denied library: /usr/lib/vmware/lib/libcrypto.so.1.0.2-x86-64/libcrypto.so.1.0.2
    2020-11-15T09:34:04.469+09:00| vmx| I005: lib/ssl: OpenSSL using FIPS_drbg for RAND
    2020-11-15T09:34:04.469+09:00| vmx| I005: lib/ssl: protocol list tls1.2
    2020-11-15T09:34:04.469+09:00| vmx| I005: lib/ssl: protocol list tls1.2 (openssl flags 0x17000000)
    2020-11-15T09:34:04.469+09:00| vmx| I005: lib/ssl: cipher list ECDHE+AESGCM:RSA+AESGCM:ECDHE+AES:RSA+AES
    2020-11-15T09:34:04.469+09:00| vmx| I005: lib/ssl: curves list prime256v1:secp384r1:secp521r1
    2020-11-15T09:34:04.580+09:00| vmx| I005: Hostname=PowerEdge-T110-II
    2020-11-15T09:34:04.580+09:00| vmx| I005: IP=127.0.0.1 (lo)
    2020-11-15T09:34:04.580+09:00| vmx| I005: IP=192.168.1.27 (eno1)
    2020-11-15T09:34:04.580+09:00| vmx| I005: IP=172.16.40.1 (vmnet1)
    2020-11-15T09:34:04.580+09:00| vmx| I005: IP=172.16.195.1 (vmnet8)
    2020-11-15T09:34:04.580+09:00| vmx| I005: System uptime 1877030000 us
    2020-11-15T09:34:04.580+09:00| vmx| I005: Command line: "/usr/lib/vmware/bin/vmware-vmx" "-ssnapshot.numRollingTiers=0" "-s" "vmx.stdio.keep=TRUE" "-#" "product=4;name=VMware Player;version=16.0.0;buildnumber=16894299;licensename=VMware Player;licenseversion=16.0;" "-@" "duplex=3;msgs=ui" "/home/Data/Virtual Machine/Windows 10 x64/Windows 10 x64.vmx"
    2020-11-15T09:34:04.580+09:00| vmx| I005: Msg_SetLocaleEx: HostLocale=UTF-8 UserLocale=ja
    2020-11-15T09:34:04.580+09:00| vmx| I005: DictionaryLoad: Cannot open file "/usr/lib/vmware/messages/ja/vmware.vmsg": No such file or directory.
    2020-11-15T09:34:04.580+09:00| vmx| I005: [msg.dictionary.load.openFailed] Cannot open file "/usr/lib/vmware/messages/ja/vmware.vmsg": No such file or directory.
    2020-11-15T09:34:04.580+09:00| vmx| W003: Cannot load message dictionary "/usr/lib/vmware/messages/ja/vmware.vmsg".
    2020-11-15T09:34:04.580+09:00| vmx| I005: Duplex socket: 3
    2020-11-15T09:34:04.602+09:00| vmx| I005: WQPoolAllocPoll : pollIx = 1, signalHandle = 9
    2020-11-15T09:34:04.602+09:00| vmx| I005: WQPoolAllocPoll : pollIx = 2, signalHandle = 11
    2020-11-15T09:34:04.602+09:00| vmx| I005: VigorTransport listening on fd 12
    2020-11-15T09:34:04.602+09:00| vmx| I005: Vigor_Init 1
    2020-11-15T09:34:04.602+09:00| vmx| I005: Connecting 'ui' to fd '3' with user '(null)'
    2020-11-15T09:34:04.602+09:00| vmx| I005: VmdbAddConnection: cnxPath=/db/connection/#1/, cnxIx=1
    2020-11-15T09:34:04.627+09:00| vmx| I005: /home/Data/Virtual Machine/Windows 10 x64/Windows 10 x64.vmx: Setup symlink /var/run/vmware/e0981f495320fab289016d7aeb2cf5df -> /var/run/vmware/1000/1877030000_13771
    2020-11-15T09:34:04.627+09:00| vmx| I005: Vix: [mainDispatch.c:486]: VMAutomation: Initializing VMAutomation.
    2020-11-15T09:34:04.627+09:00| vmx| I005: Vix: [mainDispatch.c:738]: VMAutomationOpenListenerSocket() listening
    2020-11-15T09:34:04.630+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1870, success=1 additionalError=0
    2020-11-15T09:34:04.630+09:00| vmx| I005: Transitioned vmx/execState/val to poweredOff
    2020-11-15T09:34:04.630+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 additionalError=0
    2020-11-15T09:34:04.630+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=2, newAppState=1877, success=1 additionalError=0
    2020-11-15T09:34:04.630+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=3, newAppState=1881, success=1 additionalError=0
    2020-11-15T09:34:04.630+09:00| vmx| I005: FeatureCompat: No EVC masks.
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID vendor: GenuineIntel
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID family: 0x6 model: 0x2a stepping: 0x7
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID codename: Sandy Bridge
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID name: Intel(R) Xeon(R) CPU E31220 @ 3.10GHz
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000000, 0: 0x0000000d 0x756e6547 0x6c65746e 0x49656e69
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000001, 0: 0x000206a7 0x02100800 0x1fbae3ff 0xbfebfbff
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000002, 0: 0x76035a01 0x00f0b0ff 0x00000000 0x00ca0000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000003, 0: 0x00000000 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000004, 0: 0x1c004121 0x01c0003f 0x0000003f 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000004, 1: 0x1c004122 0x01c0003f 0x0000003f 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000004, 2: 0x1c004143 0x01c0003f 0x000001ff 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000004, 3: 0x1c03c163 0x03c0003f 0x00001fff 0x00000006
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000004, 4: 0x00000000 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000005, 0: 0x00000040 0x00000040 0x00000003 0x00001120
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000006, 0: 0x00000077 0x00000002 0x00000009 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000007, 0: 0x00000000 0x00000000 0x00000000 0x9c000400
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000008, 0: 0x00000000 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 00000009, 0: 0x00000000 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000a, 0: 0x07300803 0x00000000 0x00000000 0x00000603
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000b, 0: 0x00000001 0x00000001 0x00000100 0x00000002
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000b, 1: 0x00000004 0x00000004 0x00000201 0x00000002
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000b, 2: 0x00000000 0x00000000 0x00000002 0x00000002
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000c, 0: 0x00000000 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000d, 0: 0x00000007 0x00000340 0x00000340 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000d, 1: 0x00000001 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 0000000d, 2: 0x00000100 0x00000240 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000000, 0: 0x80000008 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000001, 0: 0x00000000 0x00000000 0x00000001 0x28100800
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000002, 0: 0x20202020 0x20202020 0x6e492020 0x286c6574
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000003, 0: 0x58202952 0x286e6f65 0x43202952 0x45205550
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000004, 0: 0x32323133 0x20402030 0x30312e33 0x007a4847
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000005, 0: 0x00000000 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000006, 0: 0x00000000 0x00000000 0x01006040 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000007, 0: 0x00000000 0x00000000 0x00000000 0x00000100
    2020-11-15T09:34:04.631+09:00| vmx| I005: hostCPUID level 80000008, 0: 0x00003024 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: CPUID differences from hostCPUID.
    2020-11-15T09:34:04.631+09:00| vmx| I005: Physical APIC IDs: 0,2,4,6
    2020-11-15T09:34:04.631+09:00| vmx| I005: Physical X2APIC IDs: 0,2,4,6
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x3a = 0x1
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x480 = 0xda040000000010
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x481 = 0x7f00000016
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x482 = 0xfff9fffe0401e172
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x483 = 0x7fffff00036dff
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x484 = 0xffff000011ff
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x485 = 0x100401e5
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x486 = 0x80000021
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x487 = 0xffffffff
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x488 = 0x2000
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x489 = 0x667ff
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x48a = 0x2a
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x48b = 0xff00000000
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x48c = 0xf0106114141
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x48d = 0x7f00000016
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x48e = 0xfff9fffe04006172
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x48f = 0x7fffff00036dfb
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x490 = 0xffff000011fb
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x491 = 0
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0xc0010114 = 0
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0xce = 0x100060011f00
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x10a = 0
    2020-11-15T09:34:04.631+09:00| vmx| I005: Common: MSR 0x122 = 0
    2020-11-15T09:34:04.631+09:00| vmx| I005: UTIL: Current file descriptor limit: soft 16384, hard 1048576.
    2020-11-15T09:34:04.631+09:00| vmx| I005: VMMon_GetkHzEstimate: Calculated 3092973 kHz
    2020-11-15T09:34:04.631+09:00| vmx| I005: TSC kHz estimates: vmmon 3092973, cpuinfo 3073449, cpufreq 3400000 sysctlfreq 0. Using 3092973 kHz
    2020-11-15T09:34:04.632+09:00| vmx| I005: TSC first measured delta 74
    2020-11-15T09:34:04.632+09:00| vmx| I005: TSC min delta 74
    2020-11-15T09:34:04.632+09:00| vmx| I005: PTSC: RefClockToPTSC 0 @ 1000000Hz -> 0 @ 3092973000Hz
    2020-11-15T09:34:04.632+09:00| vmx| I005: PTSC: RefClockToPTSC ((x * 3243217256) >> 20) + -2976979596201
    2020-11-15T09:34:04.632+09:00| vmx| I005: PTSC: tscOffset -6483647007688
    2020-11-15T09:34:04.632+09:00| vmx| I005: PTSC: using TSC
    2020-11-15T09:34:04.632+09:00| vmx| I005: PTSC: hardware TSCs are synchronized.
    2020-11-15T09:34:04.632+09:00| vmx| I005: PTSC: current PTSC=103109
    2020-11-15T09:34:04.632+09:00| vmx| I005: WQPoolAllocPoll : pollIx = 3, signalHandle = 17
    2020-11-15T09:34:04.632+09:00| vmx| I005: MKSXlib: Initialized thread-safe Xlib
    2020-11-15T09:34:04.633+09:00| vmx| I005: [0x55995A18B000-0x55995AE9FC3A): /usr/lib/vmware/bin/vmware-vmx
    2020-11-15T09:34:05.354+09:00| vmx| I005: ConfigCheck: No rules file found. Checks are disabled.
    2020-11-15T09:34:05.354+09:00| vmx| I005: changing directory to /home/Data/Virtual Machine/Windows 10 x64/.
    2020-11-15T09:34:05.354+09:00| vmx| I005: Config file: /home/Data/Virtual Machine/Windows 10 x64/Windows 10 x64.vmx
    2020-11-15T09:34:05.354+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 additionalError=0
    2020-11-15T09:34:05.354+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=2, newAppState=1878, success=1 additionalError=0
    2020-11-15T09:34:05.397+09:00| vmx| W003: PowerOn
    2020-11-15T09:34:05.397+09:00| vmx| I005: VMX_PowerOn: VMX build 16894299, UI build 16894299
    2020-11-15T09:34:05.397+09:00| vmx| I005: libnuma.so found and in use.
    2020-11-15T09:34:05.399+09:00| vmx| I005: NUMA topology found.
    2020-11-15T09:34:05.399+09:00| vmx| I005: NUMA node 0: 16001MB, cpus 0x0000000f 0x00000000 0x00000000 0x00000000
    2020-11-15T09:34:05.403+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1871, success=1 additionalError=0
    2020-11-15T09:34:05.404+09:00| vmx| I005: HOST sysname Linux, nodename PowerEdge-T110-II, release 5.4.0-53-generic, version #59-Ubuntu SMP Wed Oct 21 09:38:44 UTC 2020, machine x86_64
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- GLOBAL SETTINGS /usr/lib/vmware/settings
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- NON PERSISTENT (null)
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- USER PREFERENCES /home/kazuhiro/.vmware/preferences
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.autoSoftwareUpdatePermission.epoch = "7088107763"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.autoSoftwareUpdatePermission = "allow"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.lastUpdateCheckSec = "1605399992"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.keyboardAndMouse.vmHotKey.enabled = "FALSE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.keyboardAndMouse.vmHotKey.count = "0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.vmplayer.firstRunDismissedVersion = "16.0.0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.updatesVersionIgnore.numItems = "1"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.updatesVersionIgnore0.key = <not printed>
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.updatesVersionIgnore0.value = "f30d77ee-85bc-4382-9f5c-f426fa67b772"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmWizard.guestKey = "windows9-64"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmWizard.installMediaType = "later"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmWizard.isoLocationMRU.count = "1"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmWizard.isoLocationMRU0.location = "/home/Data/Virtual Machine/iso/Win10_1903_V2_Japanese_x64.iso"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.dataCollectionEnabled.epoch = "3557384424"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pref.vmplayer.dataCollectionEnabled = "FALSE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- USER DEFAULTS /home/kazuhiro/.vmware/config



  • 6.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 15, 2020 05:11 AM


    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- HOST DEFAULTS /etc/vmware/config
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT telemetryUUID = "794e14b5-165c-11eb-b7be-d4ae52bcd1bc"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.autoSoftwareUpdateEnabled.epoch = "7088107763"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.dataCollectionEnabled.epoch = "3557384424"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.componentDownloadEnabled = "yes"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.transferVersion = "1"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT product.name = "VMware Player"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT product.version = "16.0.0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.autoSoftwareUpdateEnabled = "yes"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT libdir = "/usr/lib/vmware"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT bindir = "/usr/bin"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT initscriptdir = "/etc/init.d"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT gksu.rootMethod = "su"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT NETWORKING = "yes"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT authd.fullpath = "/usr/sbin/vmware-authd"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT product.buildNumber = "16894299"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT player.product.version = "16.0.0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vix.config.version = "1"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT acceptEULA = "yes"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT acceptOVFEULA = "yes"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.dataCollectionEnabled = "no"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT installerDefaults.dataCollectionEnabled.initialized = "yes"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- SITE DEFAULTS /usr/lib/vmware/config
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.help = "introduction.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.configurationEditor = "config_editor_newvm.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.ideConfig = "devices_virtualdrive.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.floppyConfig = "devices_floppy.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.mouseConfig = "devices_mouse.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.netConfig = "devices_netadapter.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.parallelConfig = "devices_parallel.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.serialConfig = "devices_serial.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.soundConfig = "devices_sound.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.memConfig = "configvm_memory.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.miscConfig = "configvm.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.usbConfig = "devices_usb.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.displayConfig = "configvm_display-problems.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT tag.tools = "vmtools.htm"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- NONPERSISTENT
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT snapshot.numRollingTiers = "0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmx.stdio.keep = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT gui.available = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- COMMAND LINE
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT snapshot.numRollingTiers = "0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmx.stdio.keep = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT gui.available = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- RECORDING
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT snapshot.numRollingTiers = "0"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT vmx.stdio.keep = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT gui.available = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT --- CONFIGURATION /home/Data/Virtual Machine/Windows 10 x64/Windows 10 x64.vmx
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT config.version = "8"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT virtualHW.version = "18"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT mks.enable3d = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pciBridge0.present = "TRUE"
    2020-11-15T09:34:05.404+09:00| vmx| I005: DICT pciBridge4.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge4.virtualDev = "pcieRootPort"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge4.functions = "8"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge5.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge5.virtualDev = "pcieRootPort"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge5.functions = "8"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge6.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge6.virtualDev = "pcieRootPort"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge6.functions = "8"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge7.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge7.virtualDev = "pcieRootPort"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT pciBridge7.functions = "8"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT vmci0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT hpet0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT nvram = "Windows 10 x64.nvram"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT virtualHW.productCompatibility = "hosted"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT gui.exitOnCLIHLT = "FALSE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT powerType.powerOff = "soft"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT powerType.powerOn = "soft"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT powerType.suspend = "soft"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT powerType.reset = "soft"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT displayName = "Windows 10 x64"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT usb.vbluetooth.startConnected = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT firmware = "efi"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.accelerometer = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.ambientLight = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.compass = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.gyrometer = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.inclinometer = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.location = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sensor.orientation = "pass-through"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT guestOS = "windows9-64"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tools.syncTime = "FALSE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sound.startConnected = "FALSE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sound.autoDetect = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sound.virtualDev = "hdaudio"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sound.fileName = "-1"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sound.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT numvcpus = "2"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT cpuid.coresPerSocket = "2"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT memsize = "4096"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT mem.hotadd = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sata0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT nvme0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT nvme0:0.fileName = "Windows 10 x64.vmdk"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT nvme0:0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sata0:1.deviceType = "cdrom-raw"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sata0:1.fileName = "/dev/sr0"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT sata0:1.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT usb.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT ehci.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT usb_xhci.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT svga.graphicsMemoryKB = "8388608"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT ethernet0.connectionType = "nat"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT ethernet0.addressType = "generated"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT ethernet0.virtualDev = "e1000e"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT serial0.fileType = "thinprint"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT serial0.fileName = "thinprint"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT ethernet0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT serial0.present = "TRUE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT extendedConfigFile = "Windows 10 x64.vmxf"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT floppy0.present = "FALSE"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT --- USER DEFAULTS ~/.vmware/config
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT --- HOST DEFAULTS /etc/vmware/config
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT telemetryUUID = "794e14b5-165c-11eb-b7be-d4ae52bcd1bc"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.autoSoftwareUpdateEnabled.epoch = "7088107763"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.dataCollectionEnabled.epoch = "3557384424"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.componentDownloadEnabled = "yes"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.transferVersion = "1"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT product.name = "VMware Player"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT product.version = "16.0.0"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.autoSoftwareUpdateEnabled = "yes"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT libdir = "/usr/lib/vmware"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT bindir = "/usr/bin"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT initscriptdir = "/etc/init.d"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT gksu.rootMethod = "su"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT NETWORKING = "yes"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT authd.fullpath = "/usr/sbin/vmware-authd"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT product.buildNumber = "16894299"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT player.product.version = "16.0.0"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT vix.config.version = "1"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT acceptEULA = "yes"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT acceptOVFEULA = "yes"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.dataCollectionEnabled = "no"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT installerDefaults.dataCollectionEnabled.initialized = "yes"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT --- SITE DEFAULTS /usr/lib/vmware/config
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.help = "introduction.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.configurationEditor = "config_editor_newvm.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.ideConfig = "devices_virtualdrive.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.floppyConfig = "devices_floppy.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.mouseConfig = "devices_mouse.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.netConfig = "devices_netadapter.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.parallelConfig = "devices_parallel.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.serialConfig = "devices_serial.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.soundConfig = "devices_sound.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.memConfig = "configvm_memory.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.miscConfig = "configvm.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.usbConfig = "devices_usb.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.displayConfig = "configvm_display-problems.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT tag.tools = "vmtools.htm"
    2020-11-15T09:34:05.405+09:00| vmx| I005: DICT --- GLOBAL SETTINGS /usr/lib/vmware/settings
    2020-11-15T09:34:05.405+09:00| vmx| I005: ToolsISO: open of /usr/lib/vmware/isoimages/isoimages_manifest.txt.sig failed: Could not find the file
    2020-11-15T09:34:05.405+09:00| vmx| I005: ToolsISO: Unable to read signature file '/usr/lib/vmware/isoimages/isoimages_manifest.txt.sig', ignoring.
    2020-11-15T09:34:05.405+09:00| vmx| I005: ToolsISO: Updated cached value for imageName to 'windows.iso'.
    2020-11-15T09:34:05.405+09:00| vmx| I005: ToolsISO: Selected Tools ISO 'windows.iso' for 'windows9-64' guest.
    2020-11-15T09:34:05.406+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 additionalError=0
    2020-11-15T09:34:05.407+09:00| vmx| I005: The following VT-x features are required for VT-x support in VMware Player; however, these features are not available on this host:
    2020-11-15T09:34:05.407+09:00| vmx| I005: Module 'MonitorMode' power on failed.
    2020-11-15T09:34:05.407+09:00| vmx| I005: VMX_PowerOn: ModuleTable_PowerOn = 0
    2020-11-15T09:34:05.407+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 additionalError=0
    2020-11-15T09:34:05.407+09:00| vmx| I005:
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Power on failure messages: This host supports Intel VT-x, but Intel VT-x is disabled.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Intel VT-x might be disabled if it has been disabled in the BIOS/firmware settings or the host has not been power-cycled since changing this setting.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (1) Verify that the BIOS/firmware settings enable Intel VT-x and disable 'trusted execution.'
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (2) Power-cycle the host if either of these BIOS/firmware settings have been changed.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (3) Power-cycle the host if you have not done so since installing VMware Player.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (4) Update the host's BIOS/firmware to the latest version.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ This host does not support "Intel EPT" hardware assisted MMU virtualization.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ VMware Player does not support the user level monitor on this host.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Module 'MonitorMode' power on failed.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Failed to start the virtual machine.
    2020-11-15T09:34:05.407+09:00| vmx| I005+
    2020-11-15T09:34:05.407+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1870, success=1 additionalError=0
    2020-11-15T09:34:05.407+09:00| vmx| I005: Transitioned vmx/execState/val to poweredOff
    2020-11-15T09:34:05.407+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1870, success=0 additionalError=0
    2020-11-15T09:34:05.407+09:00| vmx| I005: Vix: [mainDispatch.c:4242]: Error VIX_E_FAIL in VMAutomation_ReportPowerOpFinished(): Unknown error
    2020-11-15T09:34:05.407+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1870, success=1 additionalError=0
    2020-11-15T09:34:05.407+09:00| vmx| I005: Transitioned vmx/execState/val to poweredOff
    2020-11-15T09:34:05.407+09:00| vmx| I005: WQPoolFreePoll : pollIx = 3, signalHandle = 17
    2020-11-15T09:34:05.408+09:00| vmx| I005: Vix: [mainDispatch.c:815]: VMAutomation_LateShutdown()
    2020-11-15T09:34:05.408+09:00| vmx| I005: Vix: [mainDispatch.c:770]: VMAutomationCloseListenerSocket. Closing listener socket.
    2020-11-15T09:34:05.408+09:00| vmx| I005: Flushing VMX VMDB connections
    2020-11-15T09:34:05.408+09:00| vmx| I005: VmdbDbRemoveCnx: Removing Cnx from Db for '/db/connection/#1/'
    2020-11-15T09:34:05.408+09:00| vmx| I005: VmdbCnxDisconnect: Disconnect: closed pipe for pub cnx '/db/connection/#1/' (0)
    2020-11-15T09:34:05.408+09:00| vmx| I005: VigorTransport_ServerDestroy: server destroyed.
    2020-11-15T09:34:05.408+09:00| vmx| I005: WQPoolFreePoll : pollIx = 2, signalHandle = 8
    2020-11-15T09:34:05.408+09:00| vmx| I005: WQPoolFreePoll : pollIx = 1, signalHandle = 9
    2020-11-15T09:34:05.411+09:00| vmx| I005: VMX exit (0).
    2020-11-15T09:34:05.411+09:00| vmx| I005: OBJLIB-LIB: ObjLib cleanup done.

    ErroeやcannotはGoogleであたってみましたが、英語のものが多く、いまのところ判っていません。



  • 7.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 15, 2020 05:49 AM

    こんにちは。

    ログファイル（おそらく vmware.log）には、下記のようなメッセージが出力されているので、CPU の仮想化支援機能（VT-x）がBIOSで有効になっていなくて、VMの起動に失敗しているように見えました。

    2020-11-15T09:34:05.407+09:00| vmx| I005: The following VT-x features are required for VT-x support in VMware Player; however, these features are not available on this host:
    2020-11-15T09:34:05.407+09:00| vmx| I005: Module 'MonitorMode' power on failed.
    2020-11-15T09:34:05.407+09:00| vmx| I005: VMX_PowerOn: ModuleTable_PowerOn = 0
    2020-11-15T09:34:05.407+09:00| vmx| I005: Vix: [mainDispatch.c:4204]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 additionalError=0
    2020-11-15T09:34:05.407+09:00| vmx| I005:
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Power on failure messages: This host supports Intel VT-x, but Intel VT-x is disabled.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Intel VT-x might be disabled if it has been disabled in the BIOS/firmware settings or the host has not been power-cycled since changing this setting.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (1) Verify that the BIOS/firmware settings enable Intel VT-x and disable 'trusted execution.'
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (2) Power-cycle the host if either of these BIOS/firmware settings have been changed.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (3) Power-cycle the host if you have not done so since installing VMware Player.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (4) Update the host's BIOS/firmware to the latest version.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ This host does not support "Intel EPT" hardware assisted MMU virtualization.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ VMware Player does not support the user level monitor on this host.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Module 'MonitorMode' power on failed.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Failed to start the virtual machine.



    CPU の仮想化支援機能が無効化された状態であれば、BIOS で有効化してみると VM が起動できるようになりそうです。

    ホストのマシンは Dell PowerEdge T110 II とのことなので、
    オーナーズマニュアル P.30 あたりに記載がある、Virtualization Technology が Enabled になっているか確認してみるとよいと思いました。

    https://downloads.dell.com/manuals/all-products/esuprt_ser_stor_net/esuprt_poweredge/poweredge-t110-2_owner%27s%20manual_ja-jp.pdf

    以上です。ご参考まで。



  • 8.  RE: VMware Player を起動するとすぐに終了してしまいます
    Best Answer

    Posted Nov 18, 2020 01:58 AM

    This is the error.

    2020-11-15T09:34:05.407+09:00| vmx| I005+ Power on failure messages: This host supports Intel VT-x, but Intel VT-x is disabled.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ Intel VT-x might be disabled if it has been disabled in the BIOS/firmware settings or the host has not been power-cycled since changing this setting.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (1) Verify that the BIOS/firmware settings enable Intel VT-x and disable 'trusted execution.'
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (2) Power-cycle the host if either of these BIOS/firmware settings have been changed.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (3) Power-cycle the host if you have not done so since installing VMware Player.
    2020-11-15T09:34:05.407+09:00| vmx| I005+ (4) Update the host's BIOS/firmware to the latest version.

    Make sure that "Virtualization Technology" is enabled in the Processor settings of the PowerEdge T110 ii BIOS

    http://downloads.dell.com/manuals/all-products/esuprt_ser_stor_net/esuprt_poweredge/poweredge-t110-2_owner's%20manual_ja-jp.pdf#page=30&zoom=auto,-187,694



  • 9.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 18, 2020 03:21 AM

    （日本語にて補足します）Workstation Player ホストのマシンが Dell PowerEdge T110 II とのことなので、Virtualization Technology （PDFの P.30 にある設定）が Enabled になっているか、設定を見直してみるとよいと思います。



  • 10.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 21, 2020 08:31 AM

    luefirestorm さん

    ありがとうございました。

    使用しているDELL PowerEdge T110 II　は「Intel VT」が初期設定で無効になっているとの情報がありました。
    BIOSに入り「Virtualization Technology」を有効にしてから起動したところ、仮想マシンが無事に起動しました。

    問題解決にご協力いただき、感謝いたします。

    bluefirestorm

    Thank you.

    I was informed that my Dell PowerEdge T110 II has "Intel VT" disabled by default.
    I went into the BIOS and enabled "Virtualization Technology" and then booted it, and the virtual machine booted successfully.

    Thank you for your help in solving the problem.

    （Translated into English at DeepL）



  • 11.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 21, 2020 08:52 AM

    bluefirestorm さん

    ありがとうございました。

    BIOSに入り「Virtualization Technology」を有効にしてから起動したところ、仮想マシンが無事に起動しました。

    問題解決にご協力いただき、感謝いたします。

    bluefirestorm

    Thank you.

    I went into the BIOS and enabled "Virtualization Technology" and then booted it, and the virtual machine booted successfully.

    Thank you for your help in solving the problem.

    Translated into English at DeepL



  • 12.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 22, 2020 05:08 AM

    bluefirestorm さん

    ありがとうございました。

    BIOSに入り「Virtualization Technology」を有効にしてから起動したところ、仮想マシンが無事に起動しました。

    問題解決にご協力いただき、感謝いたします。

    bluefirestorm

    Thank you.

    I went into the BIOS and enabled "Virtualization Technology" and then booted it, and the virtual machine booted successfully.

    Thank you for your help in solving the problem.

    （Translated into English at DeepL）



  • 13.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 22, 2020 05:12 AM

    bluefirestorm さん

    ありがとうございました。

    BIOSに入り「Virtualization Technology」を有効にしてから起動したところ、仮想マシンが無事に起動しました。

    問題解決にご協力いただき、感謝いたします。

    bluefirestorm

    Thank you.

    I went into the BIOS and enabled "Virtualization Technology" and then booted it, and the virtual machine booted successfully.

    Thank you for your help in solving the problem.



  • 14.  RE: VMware Player を起動するとすぐに終了してしまいます

    Posted Nov 21, 2020 08:24 AM

    bluefirestorm さん

    ありがとうございました。

    使用しているDELL PowerEdge T110 II　は「Intel VT」が初期設定で無効になっているとの情報がありました。
    BIOSに入り「Virtualization Technology」を有効にしてから起動したところ、仮想マシンが無事に起動しました。

    問題解決にご協力いただき、感謝いたします。

    bluefirestorm

    Thank you.

    I was informed that my Dell PowerEdge T110 II has "Intel VT" disabled by default.
    I went into the BIOS and enabled "Virtualization Technology" and then booted it, and the virtual machine booted successfully.

    Thank you for your help in solving the problem.

    （Translated into English at DeepL）
