Tech Tip - CA Single Sign-On:Federation: How to Integrate Amazon Web Services (Service Provider) with Siteminder (Identity Provider)

05-10-2017 12:22 PM

Problem Summary:
Steps to configure the federation partnership to achieve SSO (Single-Sign-On) between CA Single Sign-On, acting as the Identity Provider (IDP), and Amazon Web Services acting as the Service Provider (SP).


Configuration Overview:
1. Configure Identity Provider and Service Provider Entities

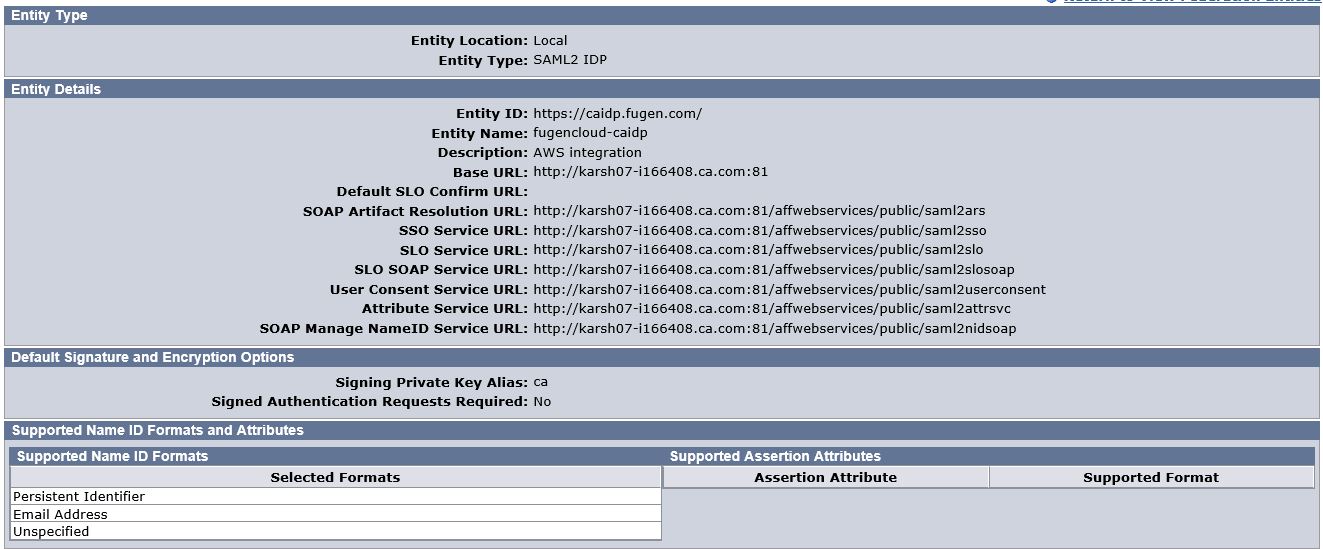

a. Local Entity Creation at CA Single Sign-On

   Admin UI --> Federation --> Partnership Federation --> Entities

   Select Create Entity

  • Entity Location: Local
  • Entity Type: SAML 2 IDP
  • Entity ID - universal identifier, preferably a domain name / endpoint
  • Entity Name
  • Base URL - IDP server where SSO Federation components are installed
  • (Be sure to click the down arrow to expose next fields):
  • Signing Private Key Alias
  • Supported NameID format: Persistent Identifier, email address, unspecified



b. Local Entity Metadata Export

Select above created Local Entity --> Action --> Select Export metadata



Fill the following fields:

  • Partnership Name – Any (e.g. AWS-console)
  • Description – Any
  • Valid days – Validation period for the metadata(e.g. 180)
  • Select Export & Save the file
  • Exported Metadata file will be uploaded on AWS.


c. Remote Entity Creation

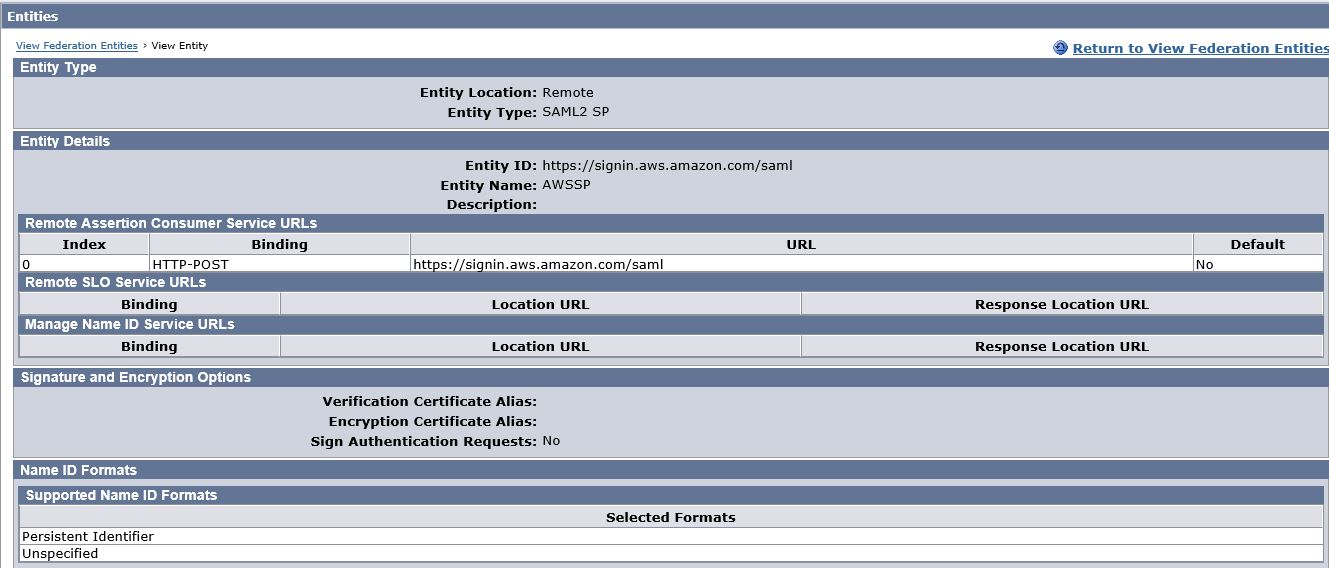

Uploaded Metadata will look as shown below:



2. Configure Federation Partnership between CA –SiteMinder (IDP) & Amazon Web Services (SP)

a. Login to CA SiteMinder and navigate to Federation --> Partnership Federation

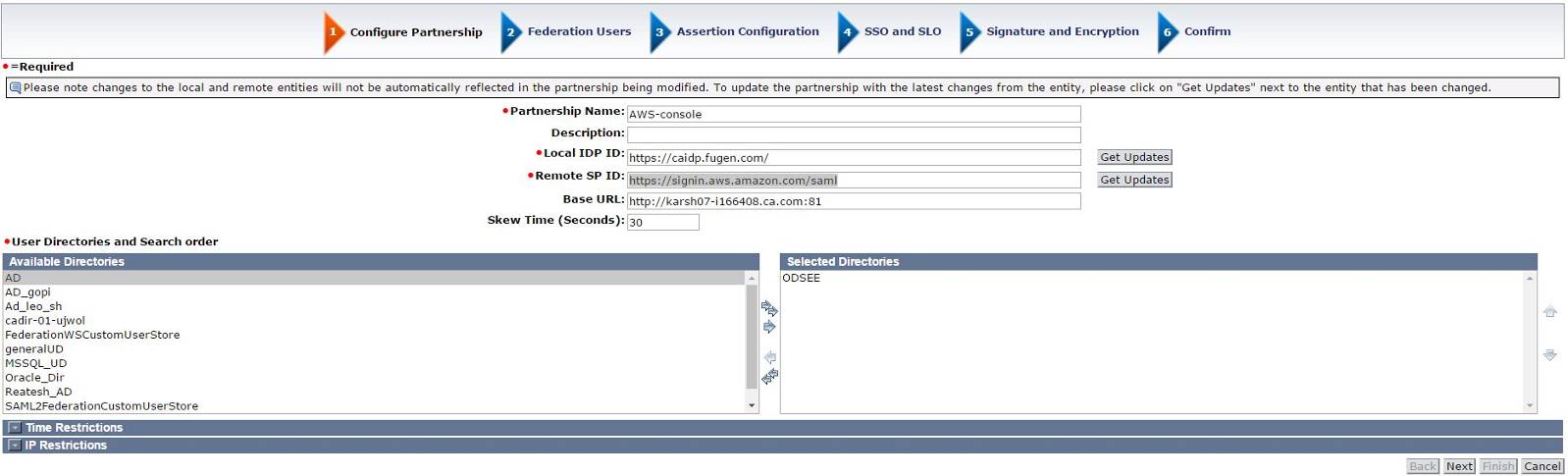

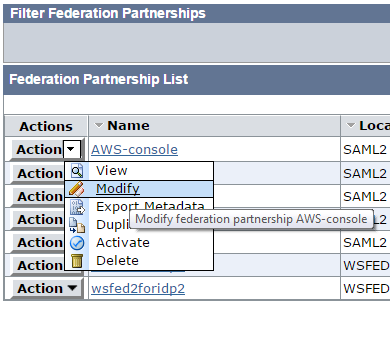

b. Modify the partnership created while exporting the metadata

c. Select Remote Partner ID (e.g. which you imported in step#1c.

d. Select one or more User Directories in desired search order.

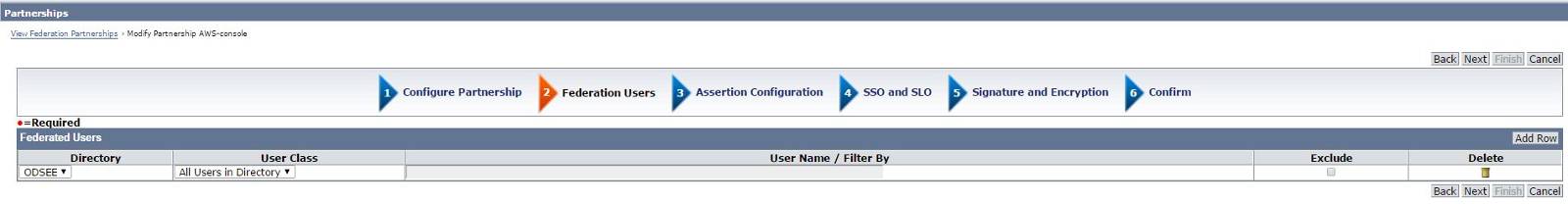

e. Select users that should be allowed to federate(e.g. All Users in Directory)

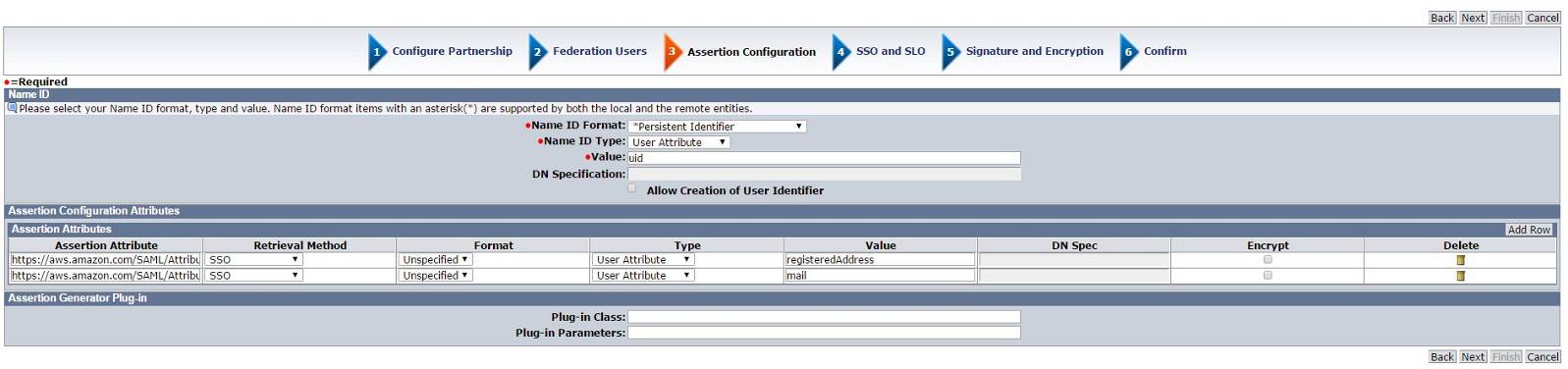

f. Assertion Configuration
 Name ID Format – Persistent Identifier
 Name ID Type – User Attribute
 Value – Should be the name of the user attribute which matches with the Amazon

Assertion Attributes:
 Assertion Attribute –

The value of the Name attribute in the Attribute tag is case-sensitive. It must be set to exactly.

o Format – Unspecified
o Type – User Attribute
o Value –Attribute containing one or more comma separated AWS's IAM roles mapped for this user. AWS's IAM roles are in Amazon Resource Names(ARNs) format.


This element contains one or more AttributeValue elements that list the IAM role and SAML identity provider to which the user is mapped by IdP. The role and identity provider are specified as a comma-delimited pair of ARNs in the same format as the RoleArn and PrincipalArn parameters that are passed to AssumeRoleWithSAML. This element must contain at least one role-provider pair—that is, at least one AttributeValue element—and can contain multiple pairs. If the element contains multiple pairs, then the user is asked to select which role to assume when he or she uses WebSSO to sign into the AWS Management Console.

For Example:

<Attribute Name="">


 Assertion Attribute –

The value of the Name attribute in the Attribute tag is case-sensitive. It must be set to exactly.

o Format – Unspecified
o Type – User Attribute
o Value – Attribute containing the username or the email that will be used by AWS as a display name of the federated user.


This element contains one AttributeValue element that provides an identifier for the AWS temporary credentials that are issued for SSO and is used to display user information in the AWS Management Console. The value in the AttributeValue element must be between 2 and 64 characters long, can contain only alphanumeric characters, underscores, and the following characters: + (plus sign), = (equals sign), , (comma), . (period), @ (at symbol), and - (hyphen). It cannot contain spaces. The value is typically a user ID (bobsmith) or an email address ( It should not be a value that includes a space, like a user's display name (Bob Smith).

For example:

<Attribute Name="">

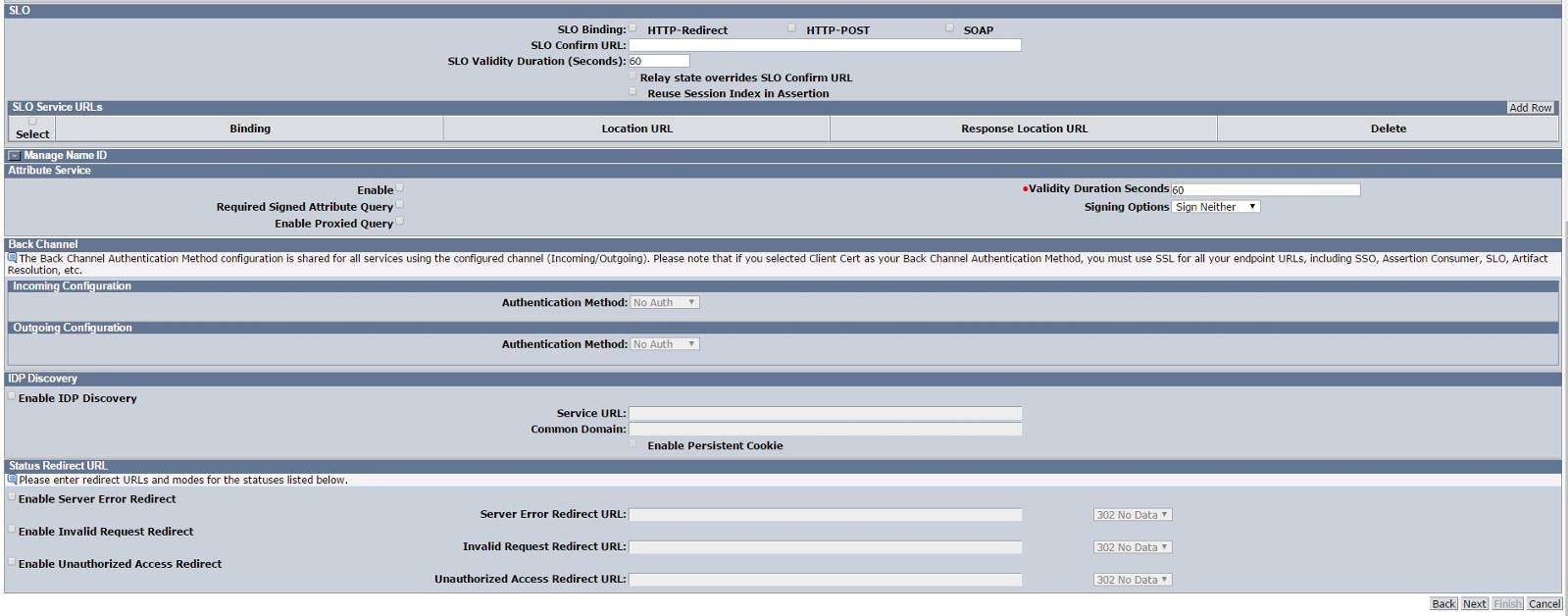

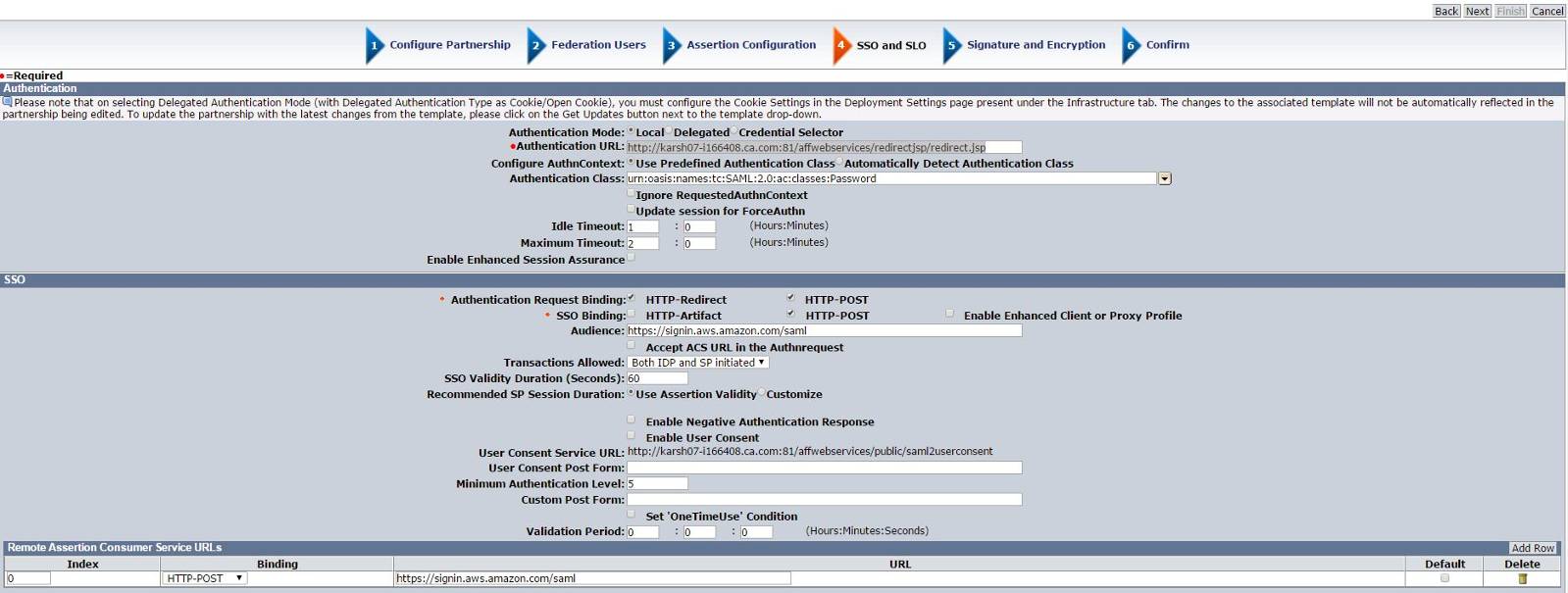

g. Single Sign-On and Sign-Out


Note: Single Logout functionality is not supported in this version of Amazon Web
Services. Hence only Single Sign-on functionality has been configured for Amazon
Web Services.



h. Configure Signature and Encryption

Signing Private Key Alias – Select the alias for the imported private key (

i. Confirmation Page
Confirm the values and save the Partnership


j. Partnership Activation
Activate the Partnership



3. Configuring Service Provider - Configure SAML 2.0 SSO in Amazon Web Services

a. Login to AWS Management Console(
b. After login to console Click on IAM link under Security, identity & Compliance


c. Select Identity Provider from the left and Click Create SAML Provider on the top

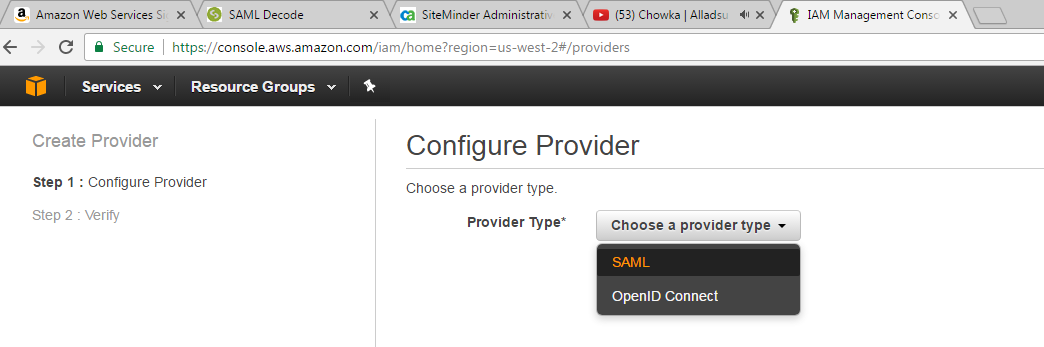

d. Click on Create SAML Provider ans select the provider type as SAML



e. Enter name for the provider (e.g. fugenidp) and Click Choose file button and upload the Identity Provider Metadata file which was exported from IDP and click Next Step.

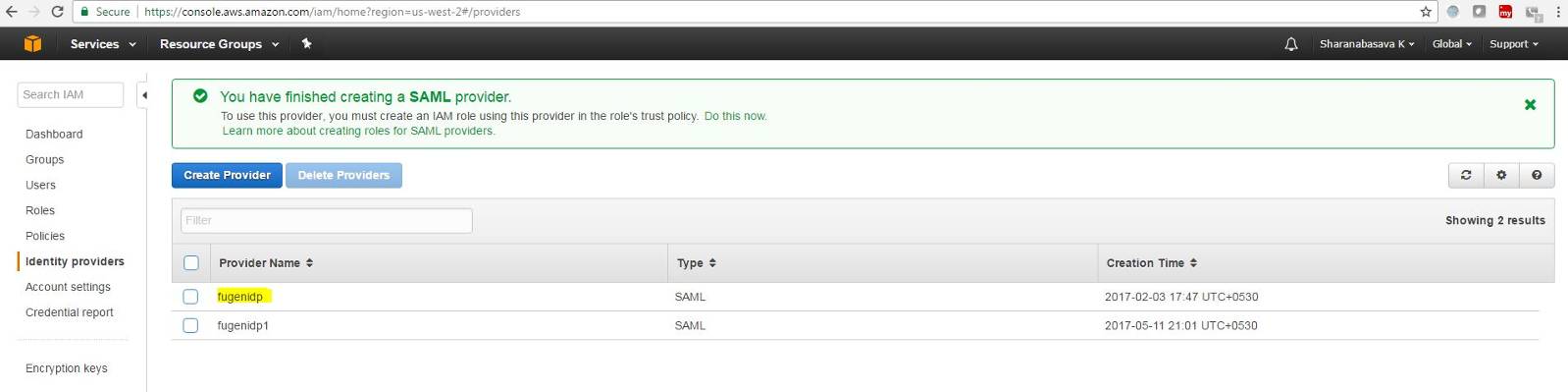

f. SAML Provider is created.



g. Configure Role in Amazon Web Services

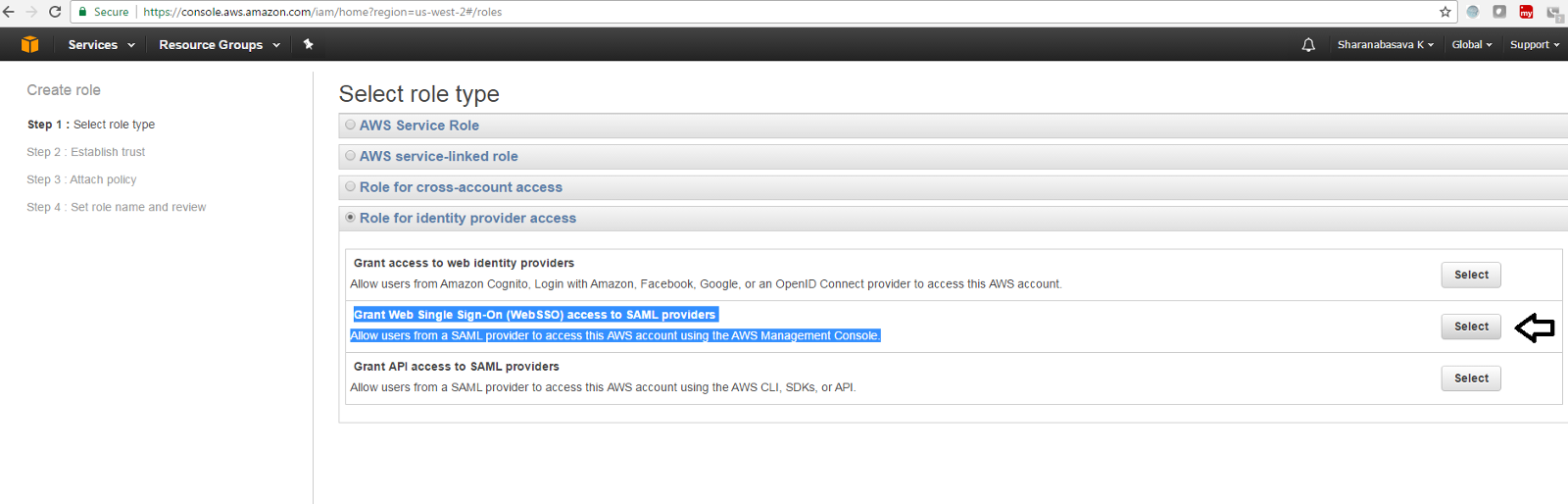

h. Click on Create new role and Choose Role type as Role for Identity Provider Access and Select Grant Web Single Sign-on (WebSSO) access to SAML Providers

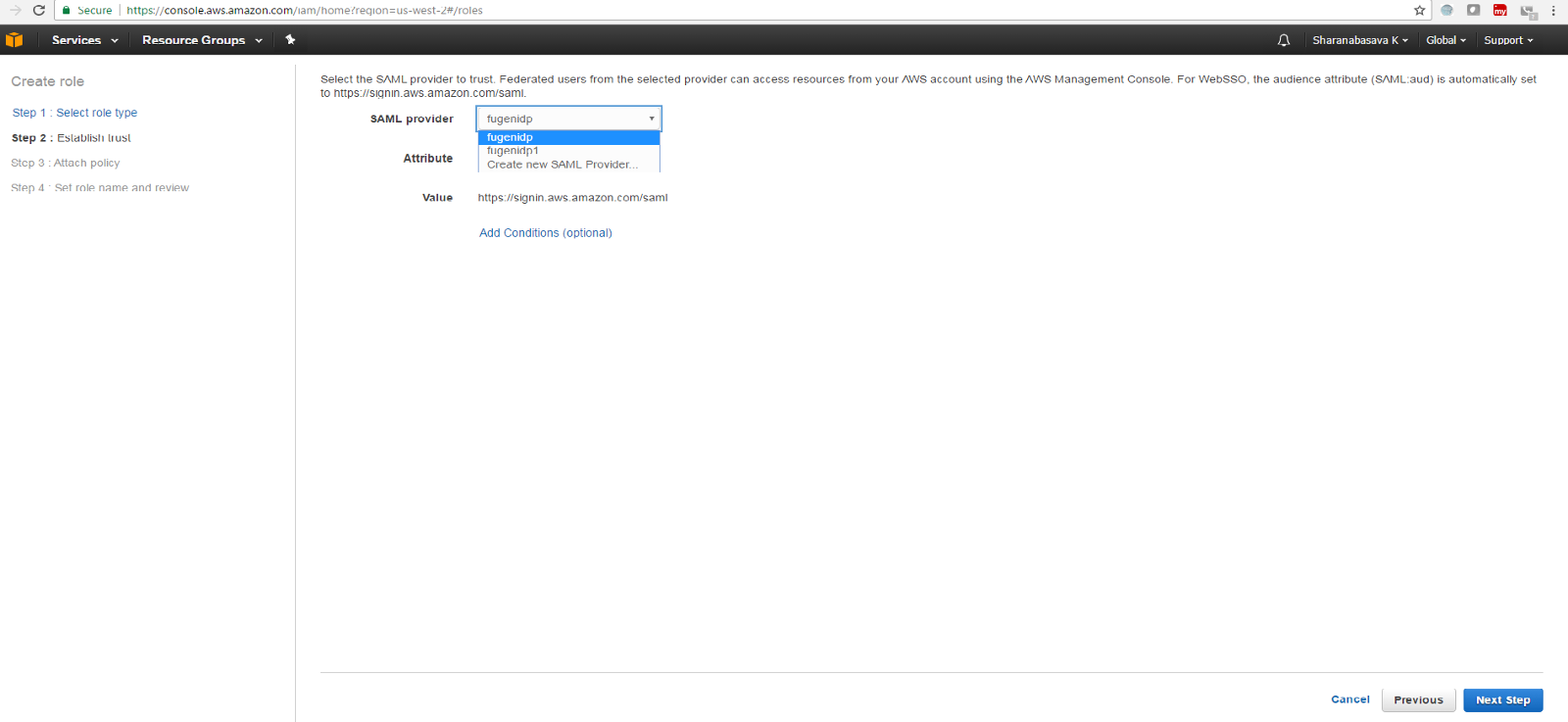

i. Select the SAML provider to trust.

Federated users from the selected provider can access resources from your AWS account using the AWS Management Console. For WebSSO, the audience attribute (SAML:aud) is automatically set to



j. Verify Role Trust document and Click Continue

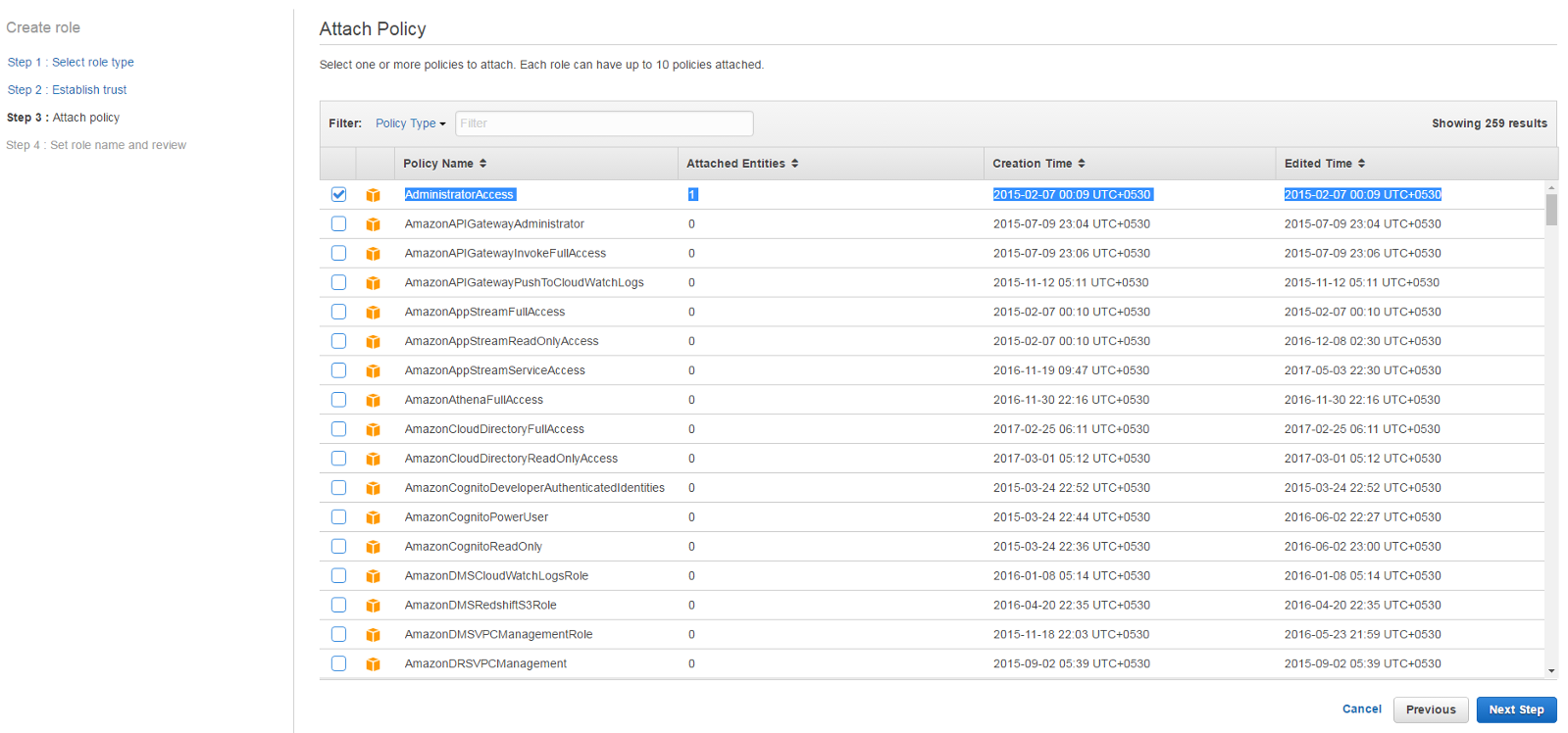

k. Select Permissions for this role



l. Enter the role name and Role description, verify the Trusted entities and policies.



m. click on create role and the role will be created. To view the created role, In AWS console Navigate to IAM--->roles--->click on created role(e.g. fugenidpprovider).




4. Federation Testing

In the case of Amazon Web Services, Identity Provider initiated Scenario was tested.

a. Access the IDP Initiated URL.

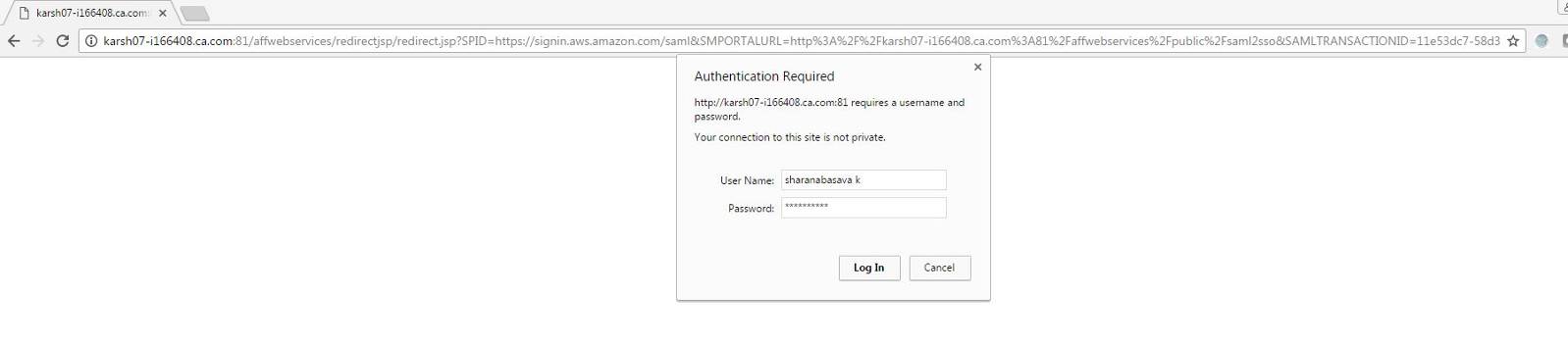

b. The User is asked to enter the credentials.

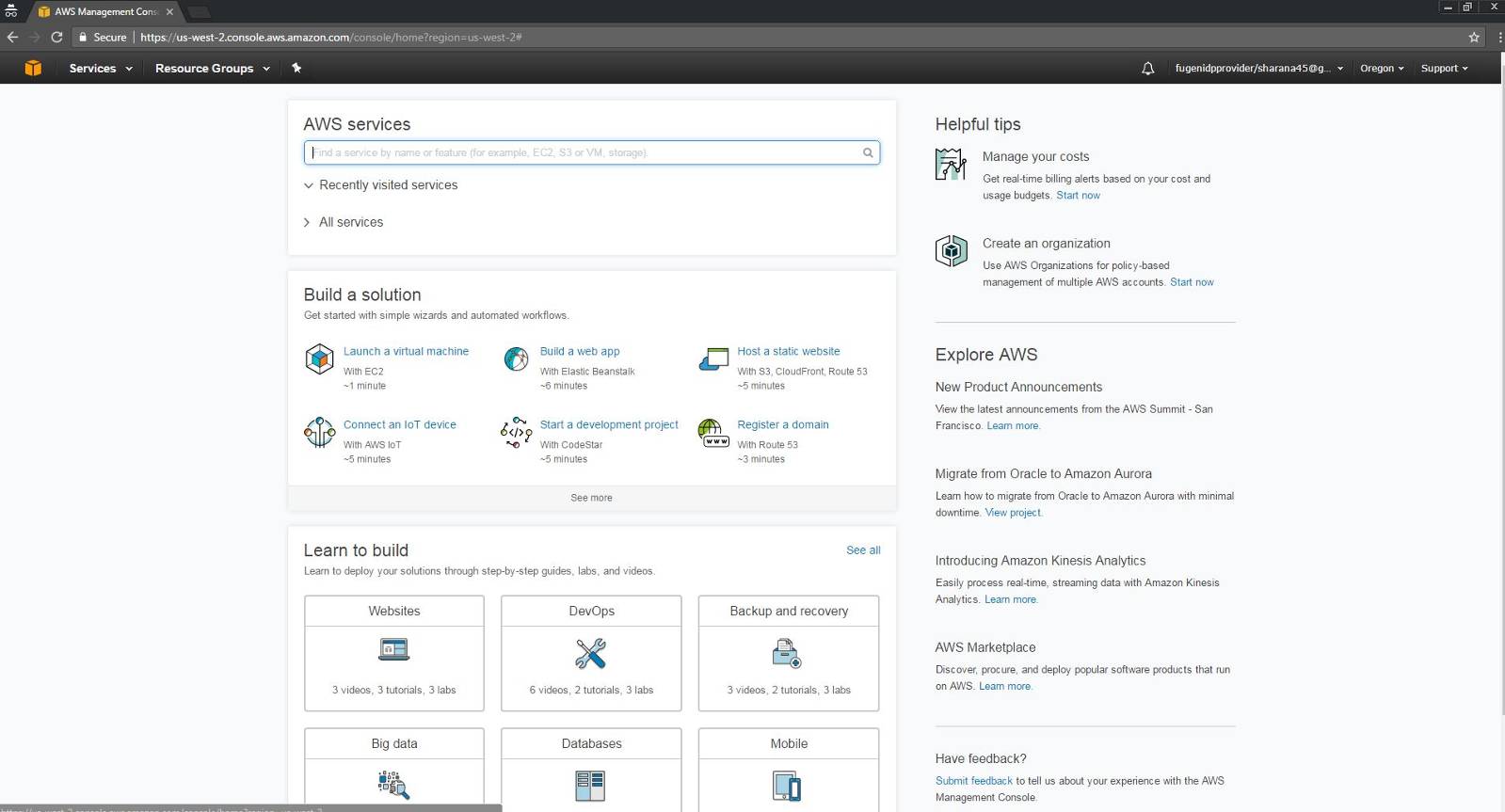

c. After the successful login, the user is redirected to the Amazon Web Services home page





5. Exceptions

a. When SiteMinder Partnership is Inactive

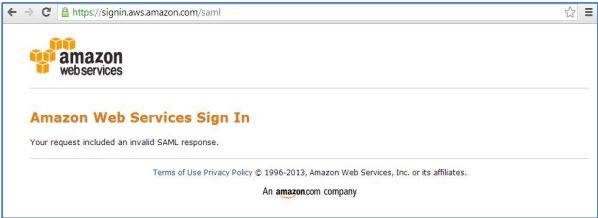

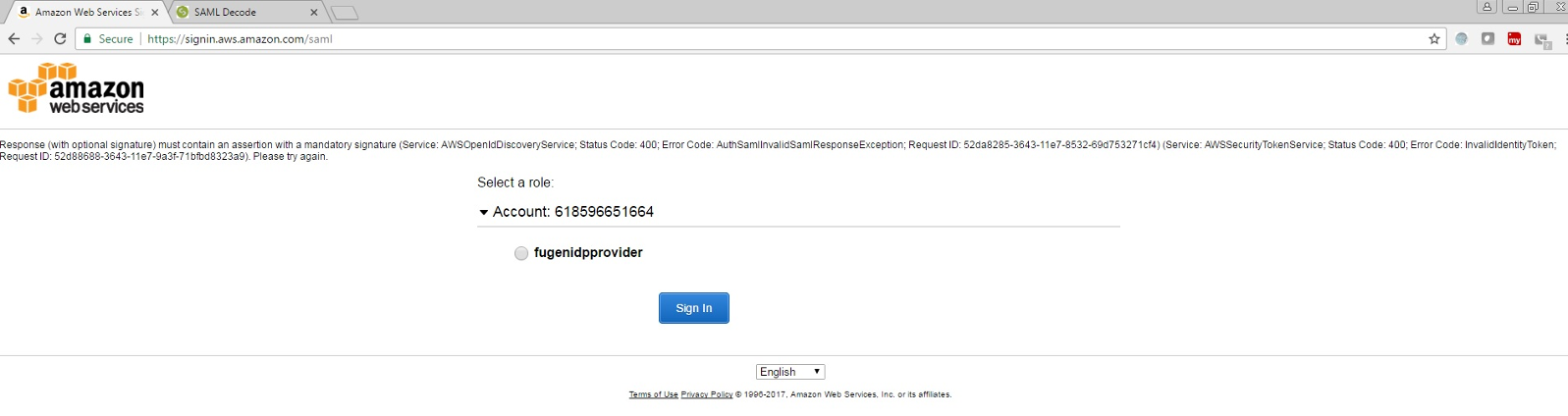

b. Amazon Web services requires signed assertion, if you dont enable digital signature processing then you will get below error at Amazon web services end.

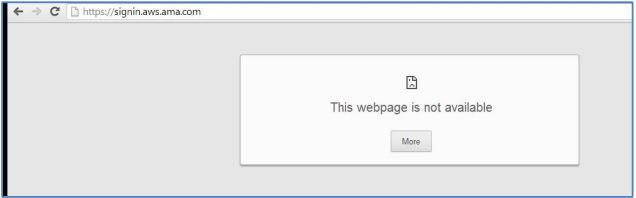

c. When the Assertion Consumer Service URL is given wrong in SiteMinder side

Assertion Consumer Service URL in the Amazon Web Services -->
Assertion Consumer Service URL given in SiteMinder -->
Test Assertion Consumer Service URL given in SiteMinder --> Result --> Authentication at the Identity Provider side and gives following error:



d. here we get same results for two conditions.

1. When SiteMinder Authenticated User who is not in Amazon Web Services trying to login through SiteMinder.
This is a user that is authenticated to SiteMinder but not provisioned to Amazon Web Services.
User ID used --> xyztest

2. SiteMinder User who doesn’t have desired attributes in the user store.
UserID --> abcuser
This user doesn’t have the registered address attribute which is the Assertion Attribute used in the Partnership.


Below screenshot having registeredAddress which is having the value of role and identity provider specified as a comma-delimited pair of ARNs in the same format as the RoleArn and PrincipalArn parameters that are passed to AssumeRoleWithSAML.


If any one of them are missing then you will get below error.

Result --> After authentication following error page appears at Amazon Web Services.



And for more exceptions, Please refer below mentioned runbook and refer Chapter 5: Exception Handling.


SAP Portal Services

1 Favorited
1 Files
zip file   148K   1 version
Uploaded - 05-29-2019

Tags and Keywords


07-11-2019 11:38 AM

I know this post is old but looks like the question was never answered.

How are others formatting the assertion attribute/value in the following format when using active directory?


is regex an option?  that is what ADFS uses.



12-19-2017 08:48 PM

Will recommend FMATTR.


When searching docops, SSO 12.52 SP1 there was a defect for FMATTR fixed in CR8.  Need to  validate customer's exact version.



12-19-2017 06:21 PM



Have we tried using FMATTR. Something similar to this blog at the end

12-19-2017 06:16 PM

Can we map a multi-valued attribute to the "Role" attribute?  Will this be formatted as individual lines in the assertion or will it be delimited list that requires further manipulation?  Could we use an expression to break up a delimited list?


The only way I can think to accomplish this would be to write a plugin.  My customer does not want to write a plugin.

06-09-2017 08:06 AM

Hi Richard,


I tested IDP (Siteminder) Initiated flow with the below URL.


after entering the credentials at siteminder, I can directly login into AWS console without re-entering the credentials.


And for login to AWS console directly then I used my email ID ( and password.




06-09-2017 08:02 AM

Sharana, thanks for confirmation, can you also confirm you login to your directly AWS account using, not via SSO.

06-09-2017 07:39 AM

Hi Richard,


Yes, I manually added these values in my ODSEE directory.

If you dont want to add then you can use static assertion attributes and directly add the values in the partnership.




06-08-2017 04:16 PM


Thanks for the article:


You successfully logged into AWS through SAML.


<ns2:Attribute Name="" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
<ns2:Attribute Name="" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">


are you having these attributes in your ODSEE?


05-17-2017 04:10 PM

I'd be really interested in how you handle the role assertion with dynamic groups from the directory.-- "Assertion Attributes:
 Assertion Attribute –"


We had to use ADFS to integrate with AWS since we couldn't modify the assertion to dynamically build the proper role returns based on the user groups at the IDP. At least not without a custom assertion plugin. If there's some other way to do this it would be great to know...cause OOB it seemed like we could only send static values which doesn't meet the requirement for the IDP to manage roles and send ones the user has access to (since AWS console trusts this and doesn't store local mappings).
