Reporting on Occurrences field in DX NetOps Spectrum Report Manager

  • 1.  Reporting on Occurrences field in DX NetOps Spectrum Report Manager

    Broadcom Employee
    Posted Sep 29, 2022 02:48 AM

    With the release of DX NetOps 22.2.2 release, the Spectrum users will now have the ability to report on the "Occurrences" attribute for alarms using the ad-hoc reports.

    The "Occurrences" attribute provides the count of number of times a particular alarm has been raised before it was cleared. While this information is available in OneClick, it was lost when the alarm is cleared from the OneClick.

    It was a constant ask from the customers to have the visibility into the "Occurrences" attribute for the historic reporting. With this data in reports, the management team can now take necessary actions to improvise the performance of the operations team based on the number of "Occurrences" it took to clear the alarm.

    The below navigation can be adopted to generate an ad-hoc report with the newly introduced attribute – "Alarm OCCURRENCES"


    1. In the CABI Console, navigate to Menu bar and select Create -> Ad Hoc View.
    2. Select Alarm Domain from the available domains.
    3. You will observe that there is a new field add "Alarm OCCURRENCES".
    4. Select and drag it to the Selected Fields pane.
    5. You can choose to select additional fields as well.
    6. Click OK, Align the selected fields in Tabular format.
    7. Run or Save the report.

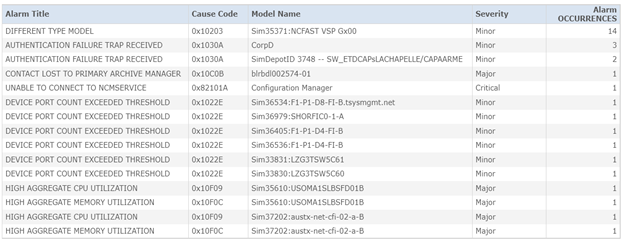

    Sample report showing number of Occurrences for each of the listed alarms.

    Please do visit the Release Notes for Spectrum 22.2 for more information.

    Pankaj Agarwal
    Senior Product Manager | DX NetOps
    Broadcom Software
