SPECTRUM - Need to create a locater filter or a GC by attribute "ifadminstatus" (10e3f)

[Vasco Pereira]

Hi Guys,

Need some help in creating a Locater search in interfaces of some devices by attribute IfAdminStatus, but couldn´t find that attribute in the available list to build the filter, do you have any idea of how to achieve that?

Another way i was trying is to create a GC with all the interfaces of those devices but filtered by adminstatus, again didn´t find that attribute.

Any ideas?

thanks for your attention.

BR

[Silvio Okamoto]

Hi Vasco,

Note that ifAdminStatus is an external attribute. Use this search with caution to avoid performance issues.

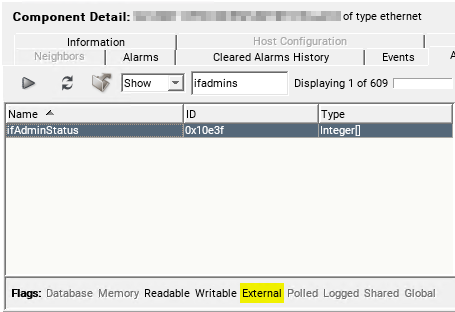

You can find the ifAdminStatus (0x10e3f) attribute ID under the Port Gen_IF_Port model type:


------------------------------
Technical Support Engineer IV
Broadcom Inc
------------------------------

[Vasco Pereira]

Hi Silvio



Thanks again for your attention and advise ��

I´ve been searching only at root of ports folder thinking that should get all attributes of all subfolders like the GEN_IF_PORT, but understood now that I need to go  into all categories to search inside them .



Thanks again.



BR

Cmpts

___________________________________________________________________________________________





Vasco Lobão Pereira Operations Support Systems   M: [phone]

AVISO: A informação contida neste e-mail e ficheiros anexos são confidenciais e deverão ser lidos exclusivamente pela pessoa ou entidade a quem se dirigem. Se recebeu esta comunicação por engano, por favor, informe de imediato o remetente e apague a mensagem e os ficheiros anexos sem os ler, copiar, gravar, distribuir ou divulgar ou fazer qualquer outro uso da informação. Lembre-se da sua Responsabilidade Social Ambiental antes de decidir imprimir este e-mail.





[Catalin Farcasanu]

I would advise you not to create a search based on an external attribute. As Silvio was showing, Memory Attributes should be used first, then Database Attributes.

------------------------------
Senior Consultant
SolvIT Networks
------------------------------
