property field label and value display on list form

Jump to Best Answer
  • 1.  property field label and value display on list form

    Posted 03-24-2016 01:00 PM

    I don't have a luck to display the property field label and value on request list form. If this is possible to display then please advise of a solution or workaround.



  • 2.  Re: property field label and value display on list form

    Posted 03-28-2016 01:52 AM

    Hi,



    Could you elaborate this a little more? Maybe I can suggest something.



    Regards,

    Hemant



  • 3.  Re: property field label and value display on list form

    Posted 03-28-2016 09:30 AM

    Hi Hemant -- To be able to search by property labels and values on the request list form as search filters and also to display them as columns on the grid list. Thank You!



  • 4.  Re: property field label and value display on list form

    Posted 03-28-2016 03:13 AM

    Hi,

    if I understood your goal, you can try to achieve this in this way:

    <PDM_MACRO name=lsWrite text="var zprps = '';">

    <PDM_MACRO name=lsWrite text="<PDM_LIST SOURCE=list.properties PREFIX=prps>">

    <PDM_MACRO name=lsWrite text="zprps += '<br>' + @{prps.label} + ' : ' @{prps.value};">

    <PDM_MACRO name=lsWrite text="</PDM_LIST>">

    <PDM_MACRO NAME=lsCol hdr="prps" attr="id" fmtfunc=showPrps>



    function showPrps(value) {

    rs.data(zprps);

    }



  • 5.  Re: property field label and value display on list form

    Posted 03-28-2016 09:31 AM

    Hi cdtj -- I will give this a try and let you know. Thank You!!



  • 6.  Re: property field label and value display on list form

    Posted 03-28-2016 11:08 AM

    Hi cdtj -- I have added your lines of code after Request# column which inserted a new column 'prps' but doesn't display a value, though the request tickets had a property field. Any thoughts and suggestions?



  • 7.  Re: property field label and value display on list form

    Posted 03-28-2016 11:17 AM

    I got some luck with the below code but have to run an extended testing.



    <PDM_MACRO name=lsCol hdr="properties Label" attr=properties.label>
    <PDM_MACRO name=lsCol hdr="properties Value" attr=properties.value>



  • 8.  Re: property field label and value display on list form

    Posted 03-28-2016 12:05 PM

    Works partially as it broke the request list form after adding the above.

    The only time it works is when I use the properties search string in the Additional Arguments field.



  • 9.  Re: property field label and value display on list form
    Best Answer

    Posted 03-28-2016 11:20 PM

    okay, try this code then:

    <PDM_MACRO name=lsWrite text="var zprps = '';">
    <PDM_MACRO name=lsWrite text="<PDM_LIST ESC_STYLE=C FACTORY=cr_prp WHERE=\"owning_cr = '@{list.persistent_id}'\" PREFIX=prps>">
    <PDM_MACRO name=lsWrite text="zprps += '<br>' + '<i>@{prps.label}</i>' + ' : ' + '@{prps.value}';">
    <PDM_MACRO name=lsWrite text="</PDM_LIST>">

    function showPrps(value) {
      rs.data(zprps);
    }

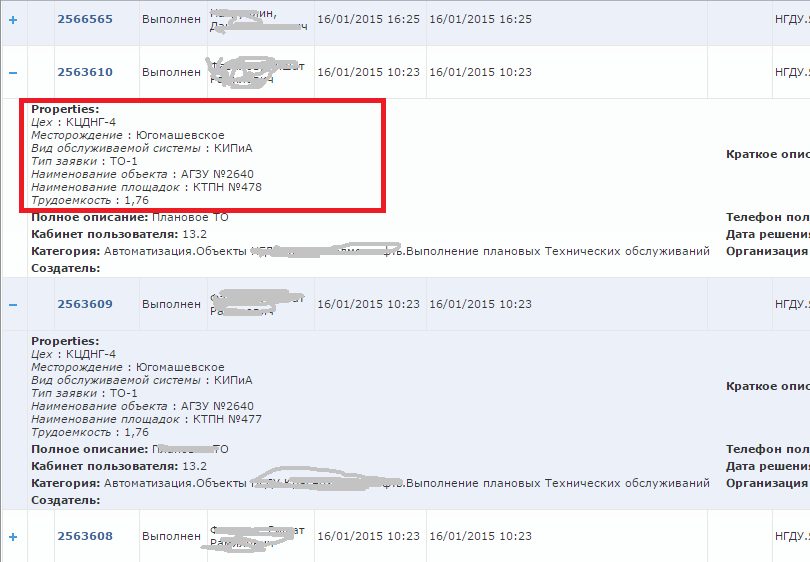

    Adding some html code styling could make them looking like this:



  • 10.  Re: property field label and value display on list form

    Posted 03-29-2016 01:46 PM

    This works like a Charm.Thank You, cdtj!!
