APM Integration with EEM

Jump to Best Answer

Haruhiko Davis08-10-2016 02:46 AM

anuranjan.kumar08-10-2016 08:11 AM

  • 1.  APM Integration with EEM

    Posted 08-09-2016 01:58 AM


    Hi Team,



    I am integrating CA APM (10.3) with CA EEM (12.5) version.

    Unable to login into APM .

    Please guide me in integrating CA APM with CA EEM.



    For integration, i am following this guide

    CA Tuesday Tip: EEM for APM Important Reminders

    But unable to integrate EEM with APM

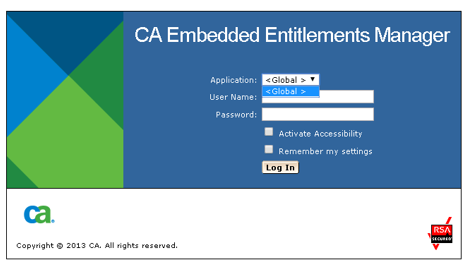

    Here in EEM, APM is not coming in drop-down.



    Regards,

    AnuRanjan Kumar



  • 2.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-09-2016 02:05 AM

    Hi AnuRanjan,

    It sounds like you may have not run the Safex scripts to register the APM resources into the EEM instance?

    This section of the wiki has more details of the complete process to secure Introscope with EEM

    Securing Introscope using CA EEM - CA Application Performance Management - 10.3 - CA Technologies Documentation



    Hope that helps. If not please let us know.



    Regards,



    Lynn



  • 3.  Re: APM Integration with EEM

    Posted 08-09-2016 08:25 AM

    Hi Lynn,



    I have run the safex command, but showing error.

    Due to this error APM is not coming in EEM window

    Please suggest me for successful integration.

    Thanks for quick response.

    Regards,

    AnuRanjan Kumar





  • 4.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-09-2016 08:35 AM

    Hi AnuRanjan:

         I see two other instances of this error. It appears to be a permissions error. Can you add the -v flag (verbose) and see what additional information appears ?



    Thanks

    Hal German



    Safex Command Line Reference - CA Embedded Entitlements Manager - 12.51 - CA Technologies Documentation



  • 5.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-09-2016 06:46 PM

    It looks like spaces in the full path (-f parameter) caused that error.

    Please use double quotes around the full path file name for the -f parameter



  • 6.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-09-2016 07:53 AM

    Dear AnuRanjan:

    Did Lynn's response help resolve this issue and the thread may be marked as answered? Or do you have additional questions/need additional assistance/ Please let us know



    Thanks

    Hal German



  • 7.  Re: APM Integration with EEM

    Posted 08-09-2016 08:32 AM

    Hi Hal,



    In executing safex command, getting error message.

    Screenshot of error message is attached.

    Please suggest the next steps for resolving the error.

    Thanks for your response.



    Regards,

    AnuRanjan Kumar



  • 8.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-09-2016 08:39 AM

    Hi AnuRanjan:

    See my last note where I ask to turn on the -v flag and see if it is a permissions error

    Thanks

    Hal German



  • 9.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-09-2016 09:59 AM

    Also ensure that eem.register.app.xml is in that directory you are running safex from.  If not, you must specify the path.



  • 10.  Re: APM Integration with EEM

    Posted 08-10-2016 02:20 AM

    Hi Musma,

    Running the safex from the same directory and it worked.





    But throwing error



    Please guide  me for next steps.

    Thanks



    Regards,

    AnuRanjan Kumar



  • 11.  Re: APM Integration with EEM

    Posted 08-10-2016 02:27 AM

    Screenshots for the safex command

    Error message



  • 12.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-10-2016 02:29 AM

    Have you altered the file at all from its original configuration in the "examples" directory under the Enterprise Manager?



  • 13.  Re: APM Integration with EEM

    Posted 08-10-2016 02:44 AM

    Hi Haruhiko,



    Yes i have altered the file configuration in examples directory.

    Thanks



  • 14.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-10-2016 02:46 AM

    Try using the default one



  • 15.  Re: APM Integration with EEM
    Best Answer

    Posted 08-10-2016 02:52 AM

    Hi All,

    safex command has run successfully by placing the register file in safex directory.

    Application name is added to EEM.

    Now working on next steps & will update for next steps.

    Thanks to all







  • 16.  Re: APM Integration with EEM

    Broadcom Employee
    Posted 08-10-2016 07:33 AM

    Hi Anuranjan:

    Thanks for your update and glad to hear of your success. Marking your response as the answer.

    Take care

    Hal German



  • 17.  Re: APM Integration with EEM

    Posted 08-10-2016 08:11 AM

    Hi Hal,

    Thanks alot ..



    Regards,

    AnuRanjan Kumar
