XOG and write restrictions

  • 1.  XOG and write restrictions

    Posted Dec 18, 2017 07:29 AM

    I am aware that my question is about a probably unsupported method but i am still interested in the information.


    First of all, I know that the 1st control/restriction for xog is in the local folder xsd (i.e .\xogclient14_x\xsd\nikuxog_application.xsd)
    Secondly, I understand that there is a 2nd control in the server side. (i.e ./webroot/WEB-INF/xog/\xsd\nikuxog_application.xsd)

    However after modifying the xsd  in both sides, XOG is still failing with following error,

    where are the other additional controls/restrictions?

        <Description>[Error] :0:0: attribute "technology" has a bad value: the value is not a member of the enumeration.
        Invalid attribute in input document. Please remove all instances of attribute from document elements and try again.
        [Element : Application, Attribute : technology ].
        <Exception type="java.lang.Exception">Invalid xml data</Exception>


    My specific problem is a restriction for the attribute "technology" in nikuxog_application.xsd.

    In fact this restriction seems a defect since it is not a system restricted lookup and even the restriction was removed from the xsd in v15.

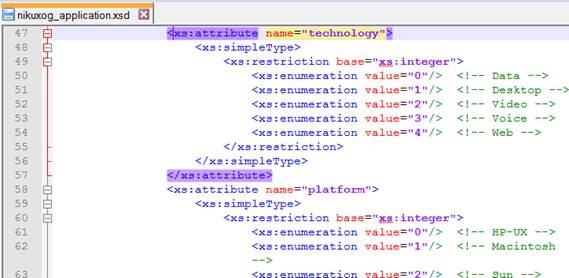

    Technology attrib. in nikuxog_application.xsd
