Partition and Partition Association Mode not visible on object attribute definition page

Jump to Best Answer
  • 1.  Partition and Partition Association Mode not visible on object attribute definition page

    Posted 08-27-2015 06:54 AM

    Greetings.



    The version of CA PPM is 13.3.0 on demand.

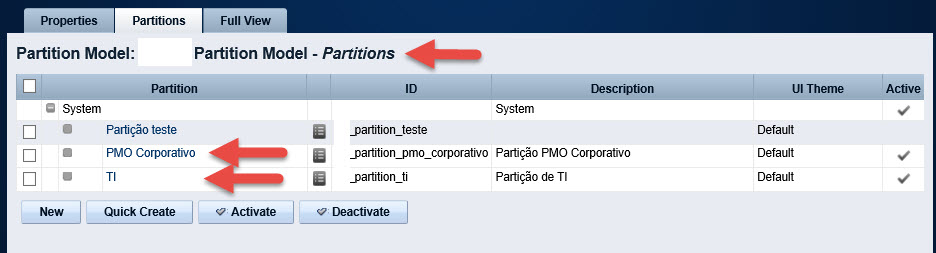

    I setup one partition model with two partitions, as you can see below.

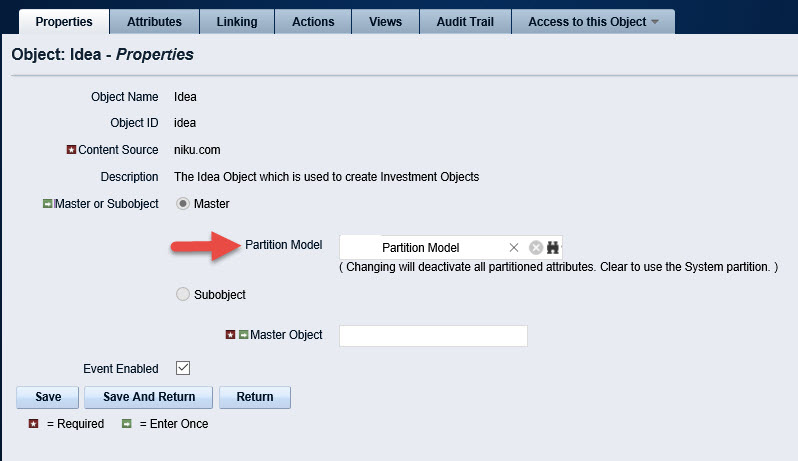

    I also associated the Idea object to my newly created partition model, as show below:

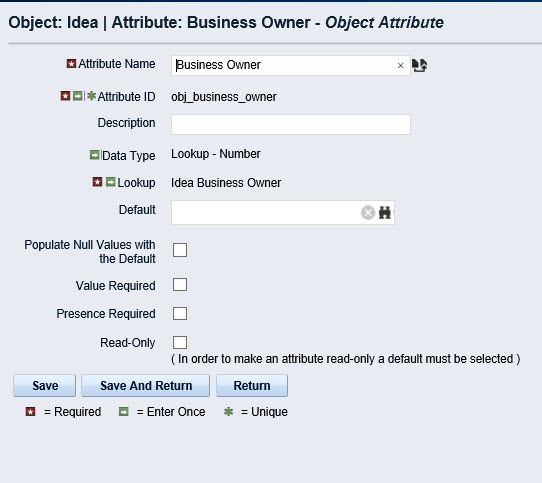

    My problem is when I try to associate the attributes to a partition.



    Partition and Partition Association Mode fields are not visible on object attribute definition page, as Clarity PPM Studio Delevoper Guide instructs at chapter 3, so I can´t define different partitions to attributes.




    My user has all administration rights, including: Administration - Studio and Adminitration - Partition Models.



    I also purged system cache.



    Is there a trick to make this works?



    Thank you.



  • 2.  Re: Partition and Partition Association Mode not visible on object attribute definition page

    Posted 08-27-2015 07:13 AM

    Access the object from the admin page.



    Click on Attributes tab.



    On the top, you should see the Partition (in a drop-down). Change the drop-down from System to the defined partition. You should then be able to see the attributes belonging to the custom partition.



    NJ



  • 3.  Re: Partition and Partition Association Mode not visible on object attribute definition page
    Best Answer

    Posted 08-27-2015 07:23 AM

    Hi  AntonioMatheuATinoco62351557



    You might not be partition member of the partitions.

    Make yourself part of it and then you should start seeing the dropdown for partition and association mode.





    Regards

    Nitin



  • 4.  Re: Partition and Partition Association Mode not visible on object attribute definition page

    Posted 08-27-2015 09:10 AM

    Thank you very much.

    You were right!



  • 5.  Re: Partition and Partition Association Mode not visible on object attribute definition page

    Posted 08-27-2015 07:37 AM

    Bom dia, tudo beleza?

    I think that you're not member of all partitions



  • 6.  Re: Partition and Partition Association Mode not visible on object attribute definition page

    Posted 08-27-2015 09:13 AM

    Obrigado!

    As you said, it worked after I became a member of the partitions.



  • 7.  Re: Partition and Partition Association Mode not visible on object attribute definition page

    Posted 08-27-2015 09:15 AM

    até mais sir!
