Interfaces report

Jump to Best Answer
  • 1.  Interfaces report

    Posted 09-21-2018 09:08 AM

    Hi,



    We are starting to migrate from eHealth to PM 3.5 and we are not being able to create an availability report with more than 15 Interfaces.

    Once a month we send a report from eHealth with the availability per interface to an external supplier and we need to reproduce this report in PM.

    We have already opened a Support ticket with this question but we have no luck.

    How can we do this in PM?



    Example report:

    Interface name             Availability

    i1                                       100%

    i2                                       95%

    i3                                       75%

    i4                                       45%

    i5                                       35%

    ..... and 37 more



    Thanks,

    Facundo



  • 2.  Re: Interfaces report

    Broadcom Employee
    Posted 09-21-2018 04:04 PM

    Hi Facundo,



               Does the report allow you to have multiple pages, with 15 on each page?

    You mentioned that you have a support ticket open. Do you have the ticket #?. I could check on it



    Regards,

    Tom Hughes



  • 3.  Re: Interfaces report
    Best Answer

    Broadcom Employee
    Posted 09-21-2018 04:15 PM

    If you are dealing with an On-Demand report, you can increase the limit of 15 items, but there may be performance issues, if you set this too high



    <CAPC>:8181/pc/center/admin/debug/attrs

    OnDemand.MaxItemsSelected.Limit   default 15

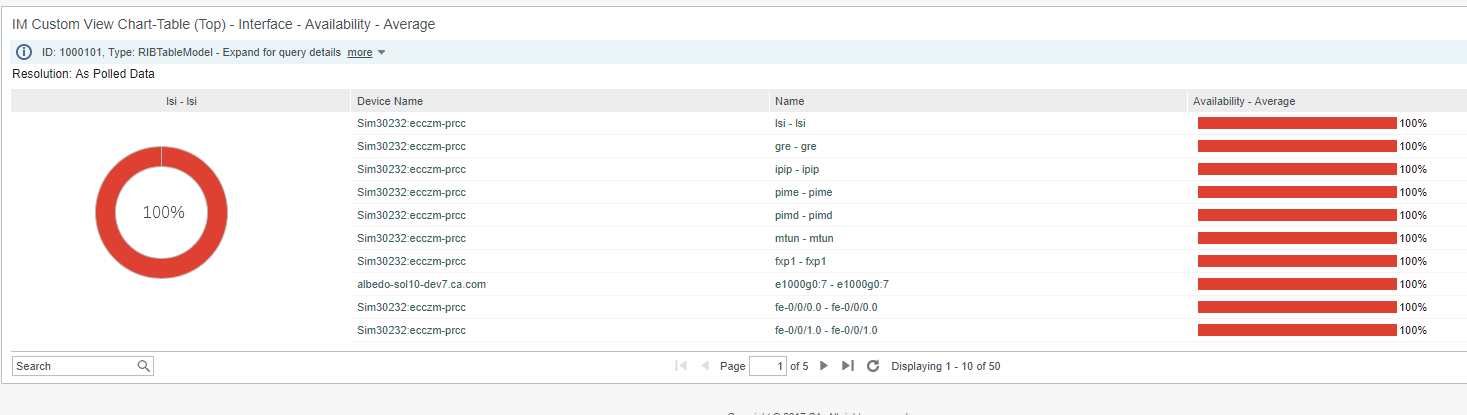

    If this is an "IM Customer View Chart - Table (Top)" view, using the "Interface" metric family, you should be able to display more items, on multiple pages



    Notice the page is 1 of 5



  • 4.  Re: Interfaces report

    Posted 09-21-2018 04:35 PM

    Thanks Thomas! This is exactly what i needed.

    (The support ticket is 01175735)



  • 5.  Re: Interfaces report

    Broadcom Employee
    Posted 09-21-2018 04:28 PM

    Facundo,



    I think what would work best for you is using the CA Business Intelligence (CABI) and CA Performance Management (CAPM) integration.  CABI is able to do a TopN style report just like eHealth could.  Here is an example ( this is one of 4 pages )



    CABI_TopN_Report



  • 6.  Re: Interfaces report

    Posted 09-21-2018 04:35 PM

    Thanks Troy, this tip is very helpful too.

    I will install Jasper reports (CA CABI) soon and test this solution.
