Customize SPECTRUMGTW integration alarms

Jump to Best Answer
  • 1.  Customize SPECTRUMGTW integration alarms

    Posted 05-23-2017 05:41 PM

    Hello everyone!



    Guys, I have a need to customize an alarm coming from the database from the UIM.



    When we used the SNMPGTW probe to integrate with Spectrum, the process was simple: Customize the OID that arrives in Spectrum and create the procedure according to my need, in this case, create an "eventmodel" for each instance of the database.



    Now, with the integration being done with webservice "SPECTRUMGTW", I could not identify how it is done by Spectrum to create the logic ...



    Has anyone had this need or could you tell me how communication is done when using the new probe?



  • 2.  Re: Customize SPECTRUMGTW integration alarms
    Best Answer

    Posted 05-24-2017 10:20 AM

    Hi Flavio,



    If you set the spectrumgtw probe in debug level 5 you should see something like this the spectrumgtw.log file:

    spectrumgtw.log file

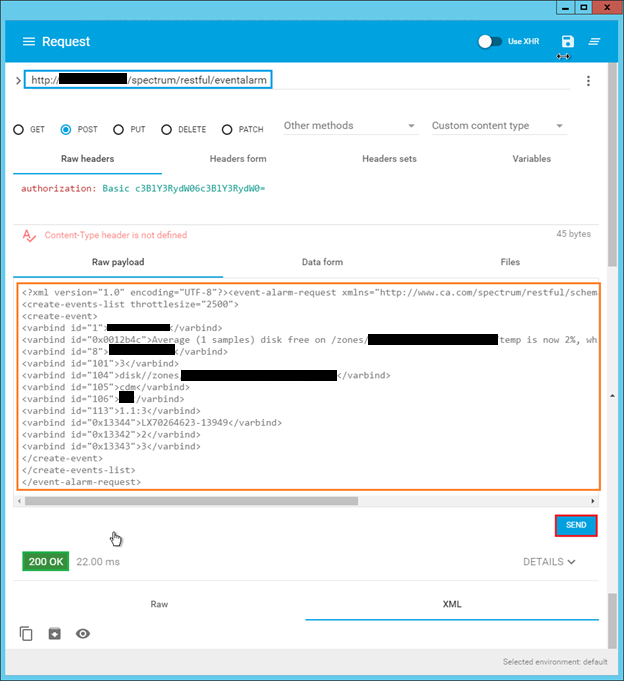

    And with that you can manually generate an alarm in Spectrum via Advanced REST Client.

    Creating an alarm via Advanced REST Client



    Look at the $SPECROOT/SS/CsVendor/gen_app_gw/EventDisp file.



    First the 0x6330071 event code is generated and stored in the Historical database (Archive Manager - ddmdb).



    0x06330071 R CA.EventCondition, \
    "(regexp({v 0x0012b4c}, {S \"true\"}) && regexp({v 104}, {S \".IsInMaintenanceMode\"}))" , "0x6330066 -:-", \
    "(regexp({v 0x0012b4c}, {S \"entered maintenance\"}) && regexp({v 104}, {S \".Event\"}))" , "0x6330066 -:-", \
    "(regexp({v 0x0012b4c}, {S \"OK\"}) && regexp({v 104}, {S \".IsInMaintenanceMode\"}))" , "0x6330067 -:-", \
    "(regexp({v 0x0012b4c}, {S \"exited maintenance\"}) && regexp({v 104}, {S \".Event\"}))" , "0x6330067 -:-", \
    "({v 113} == {S \"4.2:51\"})" , "0x06330077 -:-", \
    "({v 113} == {S \"4.2:1\"})" , "0x06330078 -:-", \
    "({v 113} == {S \"4.2:57\"})" , "0x06330079 -:-", \
    "({v 113} == {S \"4.2:2\"})" , "0x0633007a -:-", \
    "({v 113} == {S \"4.2:3\"})" , "0x0633007b -:-", \
    "({v 113} == {S \"4.2:4\"})" , "0x0633007c -:-", \
    "({v 113} == {S \"4.2:5\"})" , "0x0633007d -:-", \
    "({v 113} == {S \"4.2:48\"})" , "0x0633007e -:-", \
    "({v 113} == {S \"4.2:6\"})" , "0x0633007f -:-", \
    "({v 113} == {S \"4.2:7\"})" , "0x06330080 -:-", \
    "({v 113} == {S \"4.2:8\"})" , "0x06330081 -:-", \
    "({v 113} == {S \"4.2:9\"})" , "0x06330082 -:-", \

    .

    .

    .

    "({v 113} == {S \"1.1:3\"})" , "0x063300cc  -:-", \



    Then the 0x63300cc event code is generated if the <varbind id="113">1.1:3</varbind> matches.







    Appendix. Event Management using spectrumgtw probe - CA Spectrum - 10.2 and 10.2.1 - CA Technologies Documentation



    CA Spectrum- CA UIM Bidirectional Events:
    CA Spectrum receives alarms from spectrumgtw probe, an originating event 0x06330071, is used in Spectrum to raise events based on event conditions.

    Event Condition

    Generated event Code

    Severity

    Cleared Cause Codes

    if UIM Model has entered maintenance state

    0x6330066

    Maintenance



    if UIM Model has exited maintenance state

    0x6330067

    Clear

    0x06330066

    if UIM Model maintenance state is true

    0x6330066

    Maintenance



    if UIM Model maintenance state is OK

    0x6330067

    Clear

    0x06330066


    Minor, Major, Critical alarms will be raised based on severity varbind {S 101).

    Event

    Generated event Code

    Severity

    Cleared Cause Codes

    If Minor event raised

    0x0633006e

    Minor

    0x0633006f, 0x06330070

    If Major event is raised

    0x0633006f

    Major

    0x0633006e, 0x06330070

    If Critical Event is raised

    0x06330070

    Critical

    0x0633006e, 0x0633006f

    Default (If we receive an event from UIM and no event condition or severity is matched)

    0x06330076





    Note: No event/alarm will be raised on Spectrum using 0x06330071, this is used for internal event condition mapping.

     Events Codes for unidirectional and bidirectional UIM Integration

     Severity

    Using SouthBound Gateway Functionality (Unidirectional Integration)

    Using Spectrum Gateway (Bidirectional Integration)

    Major

    0x6330066, 0x06330032,0x06330042, 0x06330052, 0x06330002

    0x0633006f

    Minor

    0x06330031, 0x06330041, 0x06330051, 0x06330001

    0x0633006e

    Critical

    0x06330064 , 0x6330058, 0x06330056, 0x06330060, 0x06330061, 0x06330059, 0x06330064, 0x06330033, 0x06330043, 0x06330053, 0x06330003

    0x06330070, 0x06330072, 0x06330074

    Clear

    Refer below

    Cleared using IH



    event Code

    Cause Codes cleared



     0x06330062

    0x06330058, 0x06330059



    0x06330057

    0x06330056



    0x06330063

    0x06330060, 0x06330061



    0x06330065

    0x06330064



    0x06330065

    0x06330064

    For Clear

    0x06330065

    0x06330064



    0x06330065

    0x06330064



    0x06330062

    0x06330058, 0x06330059



    0x06330067

    0x06330066



    0x06330000

    0x06330001, 0x06330002, 0x06330003



    0x06330030

    0x63300031, 0x63300041, 0x63300051,



    0x06330040

    0x63300032, 0x63300042, 0x63300052,



    0x06330050

    0x63300033, 0x63300043, 0x63300053,

    Thanks,

    Silvio



  • 3.  Re: Customize SPECTRUMGTW integration alarms

    Posted 05-24-2017 10:46 AM

    One thing to keep in mind when modifying events in the Southbound Gateway (SBGW) gen_app_gw directory is that the EventDisp and Alertmap files in that directory and its sub-directories are dynamically created at Spectrum install time by concatenating the *.evd and *.amp files located in the associated components directories into the EventDisp and AlerMap files that are used by the SBGW. So if you are going to make any changes to those EventDisp and AlertMap files, you should also update (or create new/custom) *.evd and *.amp files with those same entries. Otherwise your changes may be lost the next time you upgrade your Spectrum install.



    For more information on how this works, please review the Southbound Gateway Toolkit documentation:

    Southbound Gateway Toolkit - CA Spectrum - 10.2 and 10.2.1 - CA Technologies Documentation



  • 4.  Re: Customize SPECTRUMGTW integration alarms

    Posted 01-04-2018 01:48 PM

    Hello,



    That is one of the issues that was raised with the WebService integration - you no longer have control over the Variable ID that Varbinds are sent in on. You cannot Chose to place the Varbind in {1} vs. it coming in as Name(7) or IP (8).



    Just to be clear you can certainly assign what was in vars 7 / 8 to 1 but 7 / 8 will not be Nulled and will still be used, ignoring your wish to create an Event Model vs. looking for a modeled device.



    This was identified as an issue with all Remote Probes.



    Don
