  • 1.  Alarms source from Performance Center

    Posted Mar 22, 2017 04:42 PM

    Good afternoon !

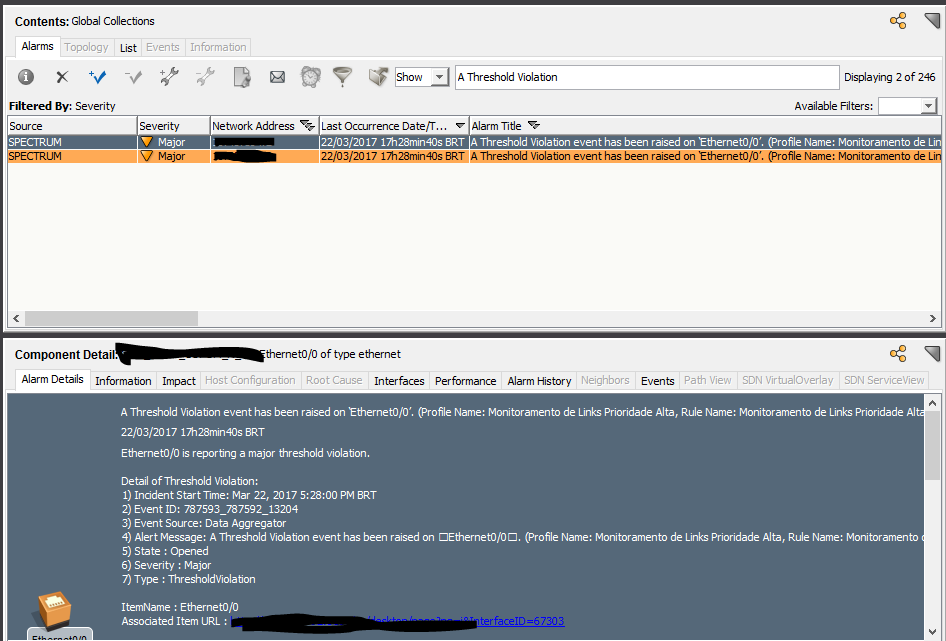

    In my environment Spectrum is integrated with Performance Center, I verified that the alarms generated by the performance center appears in the Spectrum with the field Source = Spectrum according to the image below.





    The correct one would not be the Source = Performance Center?



  • 2.  Re: Alarms source from Performance Center
    Best Answer

    Broadcom Employee
    Posted Mar 22, 2017 04:49 PM

    Someone can correct me but the source field is relevant for the bidirectional alarm integration with UIM to help identify which alarms came from Spectrum originally and which came from UIM.  This way, we don't have a Spectrum sourced alarm being pushed to UIM and then come back to Spectrum as part of the sync.



  • 3.  Re: Alarms source from Performance Center

    Posted Mar 23, 2017 05:22 AM

    Yes, I second this. The Source is a Spectrum field, it's not "sent" by PM. So I would say it is correct as it is.
