NFA traps with trap OID different of the MIB

Jump to Best Answer
  • 1.  NFA traps with trap OID different of the MIB

    Posted 01-22-2016 02:12 PM

    I configure the traps of NFA to be send to Spectrum but the traps send are with a trap OID different of that in the reporter mib



    1.3.6.1.4.1.4498.10.1.6.2 -> This is the oid that are being send



    traps received.JPG



    Below are the traps disponibles in the reporter mib




    I'm using spectrum 10.0 and NFA 9.3.1



  • 2.  Re: NFA traps with trap OID different of the MIB

    Broadcom Employee
    Posted 01-22-2016 02:35 PM

    Do you have NPC or CAPC?
    If so you can add spectrum as a data source, then have NFA send the traps to the NFA Console's IP address.

    They will then sync up to CAPC/NPC via Event Manager, and get displayed in the Events report pages.

    Then they will sync over to spectrum.



    Otherwise you may need to edit the OID in spectrum, there are a couple of threads below on this.



    NFA alerts to Spectrum Alarms

    RE: No events from NFA



  • 3.  Re: NFA traps with trap OID different of the MIB
    Best Answer

    Posted 01-22-2016 02:45 PM

    Resolved, apparently there was any incompatibility between the reporter and the MIB compiler of this version of the spectrum.



    I realized two errors in the MIB:



    1 macros NOTIFICATION-TYPE, MODULE-IDENTITY had not been imported from SNMPv2-SMI MIB.



    2 The legacy traps the TRAP-TYPE type are not compatible with SMIv2 MIB files



    Solution: I edited the MIB, added the two macros above to the import statement and removed the legacy traps of TRAP-TYPE type from file.



    Below the result

    traps solved.JPG

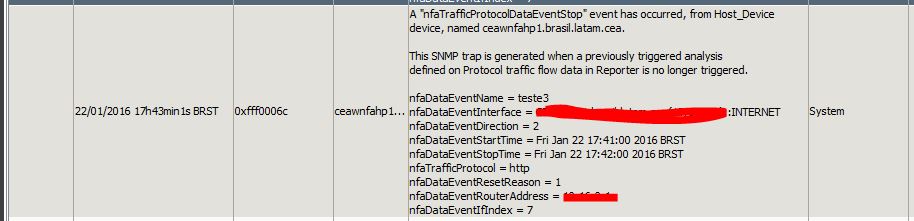

    traps received solved.JPG



  • 4.  Re: NFA traps with trap OID different of the MIB

    Posted 10-04-2017 10:28 AM

    Did CA bless your version of the MIB? Can you post your edited version of the MIB? I'm having the exact same problem.



  • 5.  Re: NFA traps with trap OID different of the MIB

    Posted 10-04-2017 10:56 AM

    I did the following to the MIB that came with my NFA installation:

    1. Change line 6 to read

    OBJECT-TYPE, NOTIFICATION-TYPE, MODULE-IDENTITY FROM SNMPv2-SMI;

    2. Search and replace "TRAP-TYPE" with "NOTIFICATION-TYPE"

    3. Remove lines 416 to the end, leaving the last line with "END"



    It compiled, but the trap type still doesn't match the OID coming in from NFA.



  • 6.  Re: NFA traps with trap OID different of the MIB

    Posted 10-04-2017 11:05 AM

    Stuart,



    It is not uncommon to see the compiled mib show one trap OID but the actual trap from the device show a different trap OID for the same trap. The one that counts is the one that comes from the device.



    I have actually seen two of the same type of devices but with different firmware installed send two different trap OID's for the same trap.



    Joe



  • 7.  Re: NFA traps with trap OID different of the MIB

    Posted 10-04-2017 04:03 PM

    Yeah, so the problem is that Spectrum still registers the event as an unknown alarm even though the MIBs suggested by Chris are compiled in. The MIB is not actually required to receive the trap, but in order to provide labels for the OID bindings, you need the trap defined in a MIB, that MIB compiled, and the traptype OID must match.



  • 8.  Re: NFA traps with trap OID different of the MIB

    Posted 10-04-2017 04:18 PM

    The other problem is that as long as the trap comes in as an "unknown alert" (which happens because there is no compiled mib that has a trap definition with a matching traptype OID) the event type is 0x10801, which is the "Unknown alert received" event. I want to have spectrum generate an alarm to be processed by my SANM policy, but I don't want to do it for every "unknown alert received" event. I want the trap definition to allow me to create a new event code and use that event code to create an alarm.



    The fact that this is so difficult between CA products produced by the same group is a little telling.



  • 9.  Re: NFA traps with trap OID different of the MIB

    Broadcom Employee
    Posted 10-04-2017 10:38 AM

    How to import NFA Mib into Spectrum

    Both Mibs can be found in the above doc.



  • 10.  Re: NFA traps with trap OID different of the MIB

    Posted 10-04-2017 11:00 AM

    Compiled both those mibs. Neither includes the definition for 1.3.6.1.4.1.4498.10.1.6.2.  Still coming in as unknown alert.



  • 11.  Re: NFA traps with trap OID different of the MIB

    Broadcom Employee
    Posted 10-04-2017 04:58 PM

    Perhaps a silly question but did you map the trap to an event after compiling the MIB?





  • 12.  Re: NFA traps with trap OID different of the MIB

    Posted 10-05-2017 12:40 PM

    Couldn't get that far because this trap isn't listed in the mib tools after compiling the mib.



  • 13.  Re: NFA traps with trap OID different of the MIB

    Posted 10-06-2017 09:21 AM

    Stuart,



    I downloaded the NFA.txt and Reported.txt files from How to import NFA Mib into Spectrum and compiled them into Spectrum 10.2.1 MIB Tools.



    In your original post, you have the NQreporter-MIB highlighted in MIB Tools which shows traps 8-13. Traps 1-7 are not in the NQreporter-MIB. They are located in the NFA-MIB. See below:





    Joe



  • 14.  Re: NFA traps with trap OID different of the MIB

    Posted 10-11-2017 10:48 AM

    My OP has a screenshot of the first MIB I compiled, which is the one that comes with NFA. I had since deleted that one and tried the other two suggested in the KB article.



    It looks like those two may be working after all. I didn't check the map tab since the traps weren't defined in the tree (why would they show up in the map and not in the tree when some do?). This speaks to the unintuitiveness of the Spectrum OC GUI MIB Tools. Now that I can see the 10.1.0.6 trap in the map tab, I have to create a new map, right? Does that create a new event? Since 10.1.0.7 is the closing trap for 10.1.0.6, how do I setup the alarm to open when receiving the 10.1.0.6 trap and close when the 10.1.0.7 trap comes in, knowing that 10.2.10 and 10.2.11 are the distinguishing factors?



  • 15.  Re: NFA traps with trap OID different of the MIB

    Posted 10-06-2017 03:37 PM

    Hi Stuart, sorry for the late answer.



    I uploaded the two mibs to my dropbox folder, i think the custom one should solve your problem, but use for your own risk ok?



    Original MIB

    Custom MIB



  • 16.  Re: NFA traps with trap OID different of the MIB

    Broadcom Employee
    Posted 10-04-2017 05:06 PM

    I am not too familiar with the Spectrum side, but I know other users got this working with those mibs.  There may be some additional configuration on the spectrum end as Robert noted above.



  • 17.  Re: NFA traps with trap OID different of the MIB

    Broadcom Employee
    Posted 10-23-2017 02:47 PM

    I changed line 35 of the nfa.txt mib from How to import NFA Mib into Spectrum from



         traps OBJECT IDENTIFIER ::= {notifications 0}



    To:

         traps OBJECT IDENTIFIER ::= {notifications 6}



    It looks like this may work.





  • 18.  Re: NFA traps with trap OID different of the MIB

    Broadcom Employee
    Posted 10-24-2017 10:33 AM
      |   view attached

    Attached is the edited NFA.mib which should have the correct OID values.

    Attachment(s)

    zip
    updatedNFA.mib.zip   1K 1 version
