Not sure why the training lab does not work

Jump to Best Answer
  • 1.  Not sure why the training lab does not work

    Broadcom Employee
    Posted 06-14-2018 03:12 PM

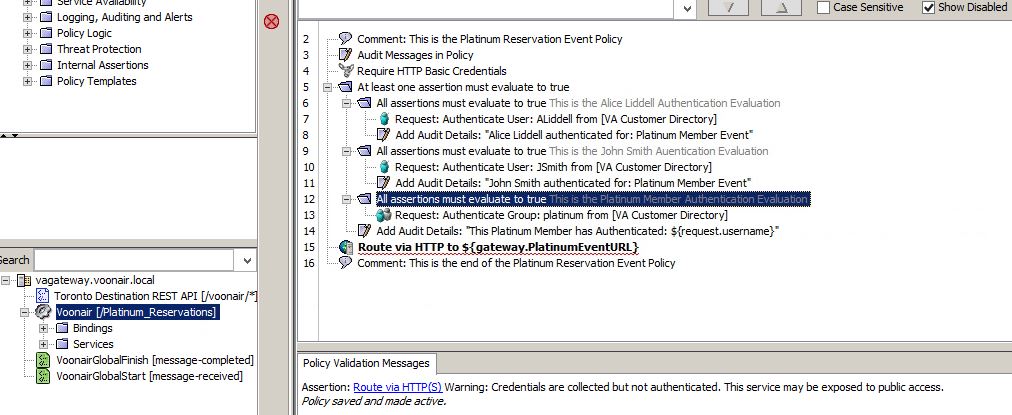

    I am leaning API Gateway. I followed the 40AGW2001 training lab PDF for SOAP API assertions example. I create it as the lab said in API gateway. This is my final policy, like the lab showed on page 43:

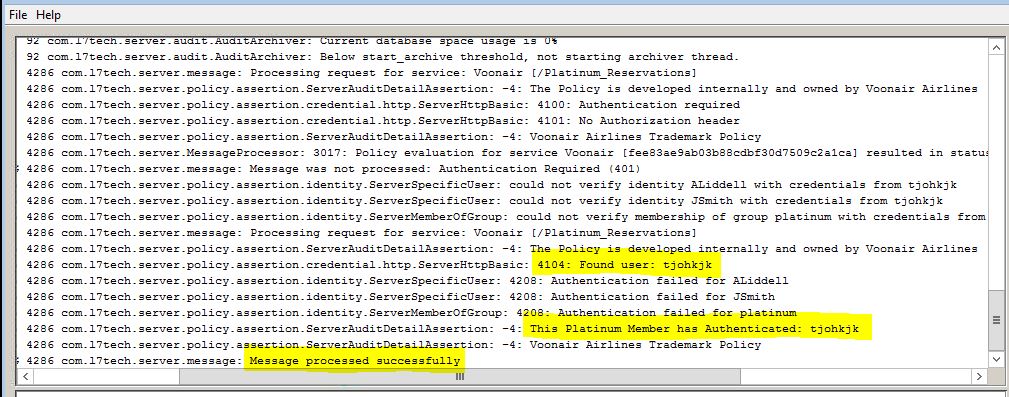

    However, not sure why still get Warnings? When I am testing the API in SOAPUI, as long as I have some data in the HTTP header for authentication (for example, a non-existing user name "tjohkjk" in my testing), I can get the good result back. This is the log.



    I think it is the logic issue in the assertions, but not sure what is the correct configuration. Anyone can help me on this?



  • 2.  Re: Not sure why the training lab does not work

    Broadcom Employee
    Posted 06-14-2018 03:30 PM

    The audit on line 14 should belong to the all assertions folder on line 12. Drag it into that folder and it should fix the warning in the Policy Validation section.



  • 3.  Re: Not sure why the training lab does not work
    Best Answer

    Broadcom Employee
    Posted 06-14-2018 03:37 PM

    Thank you, that does fix the warning, but why I always get the good response back as long as I gave some dummy authentication data?



  • 4.  Re: Not sure why the training lab does not work

    Broadcom Employee
    Posted 06-14-2018 03:42 PM

    Add audit detail assertions always return true. You had it as a direct child of an at least one assertion folder. No Matter what authentication you provided it was always true because the last assertion is always true fulfilling the requirement of line 5.



  • 5.  Re: Not sure why the training lab does not work

    Broadcom Employee
    Posted 06-14-2018 03:40 PM

    After the warning is fixed, the API works as designed. So there cannot have any compilation warnings in policy, otherwise, the policy will not work as designed.



    Thanks
