Customize #OTK Fail with error message

  • 1.  Customize #OTK Fail with error message

    Posted 03-28-2018 10:03 AM

    I have a requirement to customize OTK error message.

    OTK Version : 4.1

    Gateway version : 9.2



    1. OTK error message default error message format is :

    "error_description":"Custom error description"

       2. Expecting OTK error message error message format is :

    "error": {
    "status": "400",
    "errors": [
    "fields": "["invalid_request"]",
    "key": "error. missingDuplicate.parameters"
    "data": {}

    Please have a look at below approach and let me know how to achieve it.

    Approach 1 : Override message creation in "OTK Fail with error message"

    Approach 2 : Capture error message in "Global Message completed" and modify format

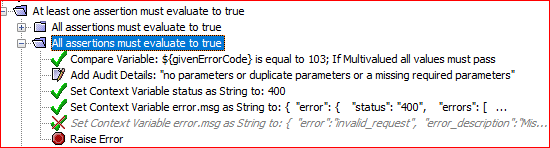

    Approach 3 : Able to modify error message for each status code in customizations/#OTK Fail with error message

    Challenges :

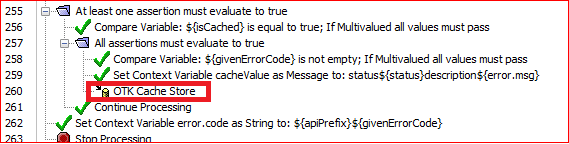

    1. challenges in Approach 1 : how to disable "OTK Cache Store" and override error.msg context variable.
    2. challenges in Approach 2 : Unable to get error message as part of ${response.mainpart} or ${resp.mainpart} and unable to expose as  "Export Variables from Fragment" in customizations/#OTK Fail with error message.
    3. challenges in Approach 3 : Have to override all error code policy assertions, which is not a good practice.


    I failed to achieve even though, was trying to modify "#OTK Cache Look Up Customization / "#OTK Cache Store Customization" . Please share your inputs.

  • 2.  Re: Customize #OTK Fail with error message

    Broadcom Employee
    Posted 04-02-2018 10:41 AM

    I would not recommend Approach 1  and modifying OTK Fail with error message directly. To  disable caching of error messages completely you can copy the "isCached" context variable to the top of "#OTK Fail with error message" and set its value to true which will cause cache logic you show at line 255 to not cache error messages.


    Approach 3 is the recommended approach and will persist upgrades.

  • 3.  Re: Customize #OTK Fail with error message

    Posted 04-04-2018 06:52 AM

    Thank you Stern for your valuable inputs,


    I am able to disable cache but unable to modify/customize error.msg. Is there any way to get ${error.msg} inside "#OTK Fail with error message" or "Global Message completed"?

  • 4.  Re: Customize #OTK Fail with error message

    Broadcom Employee
    Posted 04-04-2018 09:54 AM

    ${error.msg} is set further down in the "OTK Fail with error message" assertion. TO override all OOB error messages you would need to copy all the error handling branches to "#OTK Fail with error message" and modify them accordingly.


    I would avoid using "Global Message completed" for this.
