port used for network device monitoring

[kamal rath]

Hi Team,

Please let me know if we need to monitor a n/w device in spectrum do I need to open port 161 and 162 bidirectionally between spectrum server and the n/w device.

------------------------------
KR
------------------------------

[Joseph Ackley]

Spectrum speaks to snmp devices on default port 161 open from Spectrum to the devices.

Spectrum listens for traps on default port 162 from the devices to Spectrum.

Please reference the Communication Across Firewalls section of the documentation for mode details.

Joe

[kamal rath]

Hi Joe,

Could you tell me if these tcp/udp and is it bidirectional.
Also can you please let us know what parameters can be monitored by using spectrum, i didn't find in the document.

[Catalin Farcasanu]

I think the communication matrix is quite detailed. You just have to read it.

------------------------------
Senior Consultant
SolvIT Networks
------------------------------

[kamal rath]

Hi Catalin,

Its not clear whether its tcp or udp or both. Please confirm.

[Joseph Ackley]

Kamal,

The documentation shows if the communication is tcp or udp.

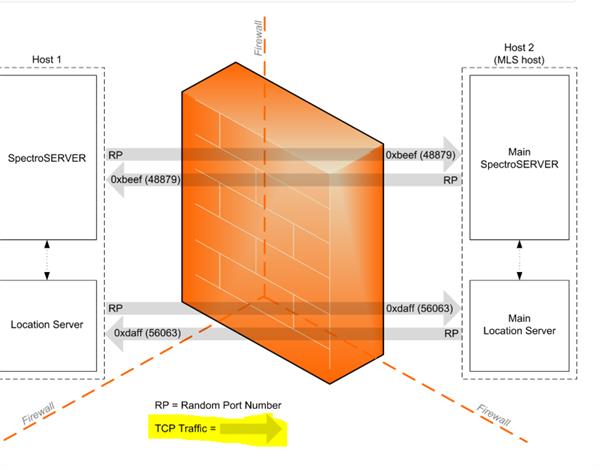

For example, at https://community.broadcom.com/enterprisesoftware/communities/community-home/digestviewer/viewthread?MessageKey=882b2086-c514-4545-b8fc-d2c6083e3f20&CommunityKey=671164c3-e575-4b08-96ab-edc2e1ceed13&tab=digestviewer#bm882b2086-c514-4545-b8fc-d2c6083e3f20 at the bottom of the page it states communication is TCP.
