Cisco IPSLA

[Hector Ivan Briceno Carranza]

Hi, Everyone

I like know how to monitoring CISCO IPSLA with snmpcollector or probe similar alredy check the probe list and none work for this. I need monitoring IP for the last mile of ISP services.

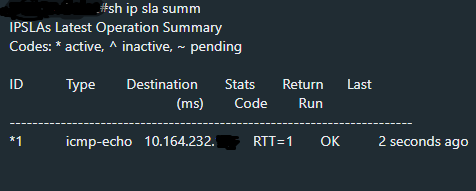

This is the cisco router command output


Thanks for your answers

Regards.

[Marius Nitu]

Hello,

You can look for the MIBs for IP SLA and monitor with snmpcollector or snmptd.
Found these links:
https://snmp.cloudapps.cisco.com/Support/SNMP/do/BrowseMIB.do?local=en&step=2&mibName=CISCO-RTTMON-MIB
https://networkengineering.stackexchange.com/questions/18078/what-are-the-snmp-mibs-for-cisco-ipsla-icmp-echo
http://www.circitor.fr/Mibs/Html/C/CISCO-IPSLA-ECHO-MIB.php
https://community.cisco.com/t5/network-management/ip-sla-mib/td-p/1193195

snmpcollector self certification:
https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/ca-unified-infrastructure-management-probes/GA/alphabetical-probe-articles/snmpcollector-snmp-data-monitoring/snmp-device-self-certification.html

[David Michel]

Via UIM all that comes to mind is setup a robot at that last mile point and use the icmp probe to ping the target device.

Otherwise perhaps this is a good fit for the AppNeta application which is part of the NetOps suite.
The question can be posted there:
https://community.broadcom.com/enterprisesoftware/communities/communityhomeblogs?CommunityKey=671164c3-e575-4b08-96ab-edc2e1ceed13

[Christopher Pearson]

Check out the saa_monitor probe. I am checking on getting the documentation posted. It looks like it was accidently removed at some point.

[Hector Ivan Briceno Carranza]

Hi everyone

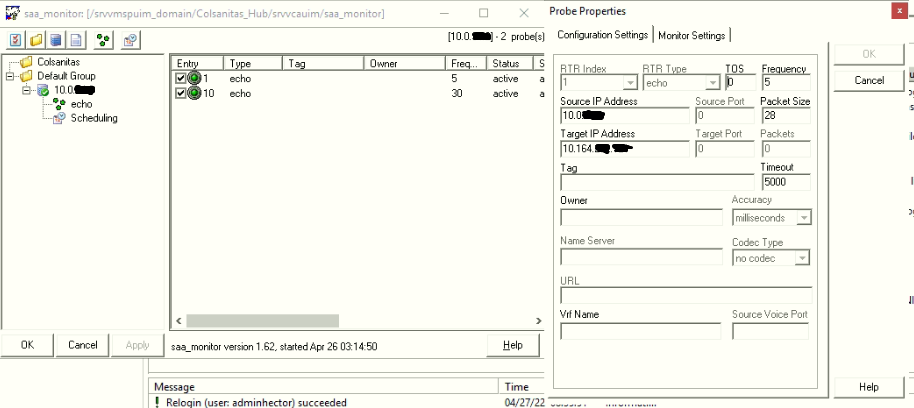

Thanks a lot for the answers. I used probe saa_monitor alredy configure monitoring. Next comunication i will confirmed if this work.



Regards

[Hector Ivan Briceno Carranza]

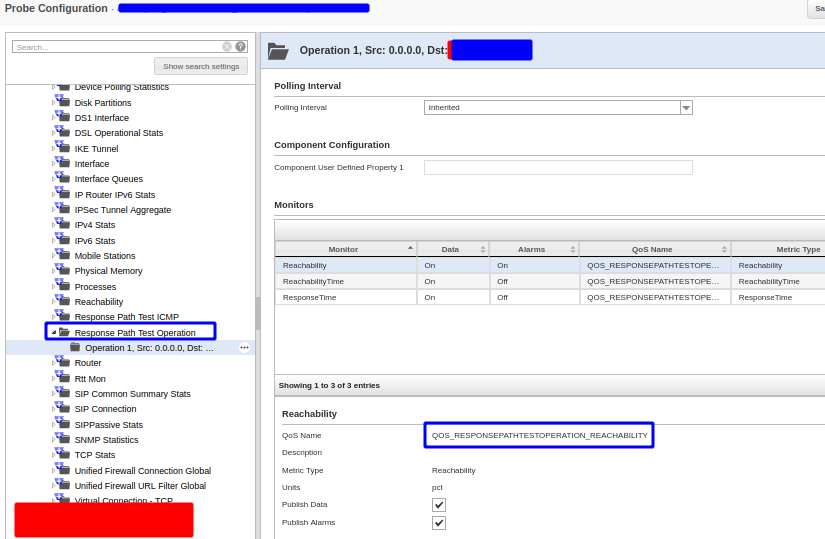

Hi all, Marius Nitu thank you very much for your answer, I have solved it by configuring the snmpcollector option as shown in the image below.
