VMware Cloud Director Container Service Extension

  • 1.  CSE with Multisite

    Posted Aug 08, 2022 10:28 AM

    I have tried CSE.next on multisite setup, where I have two VCD sites paired on system and organization level.

    So, sites are rs-bg-1-ec and rs-bg-2-ec and I can see VDCs and VMs from both sites in VCD.

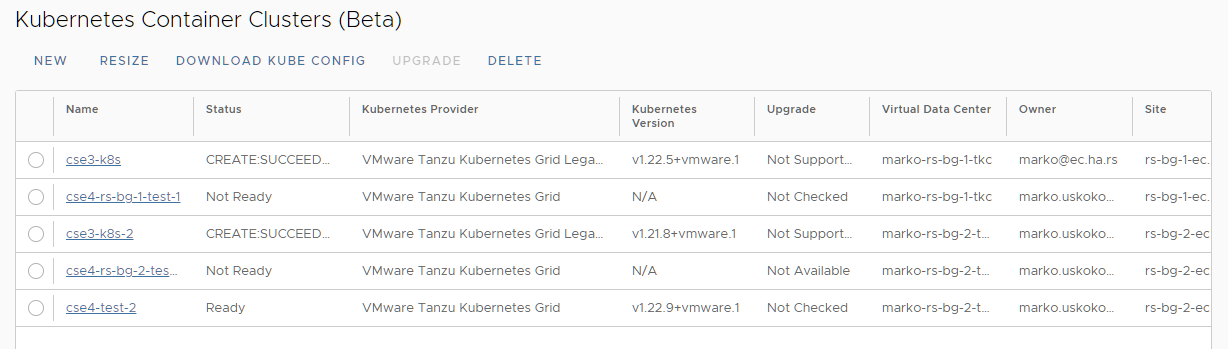

    Also, in CSE UI plugin on rs-bg-2-ec site I can see k8s clusters from both sites:


    If I click on cse4-rs-bg-1-test-1 link, it will open rs-bg-1-ec site in new browser tab, but it will not accept my current SSO login and I will need to login again to manage my cluster. Annoyance, but bearable.

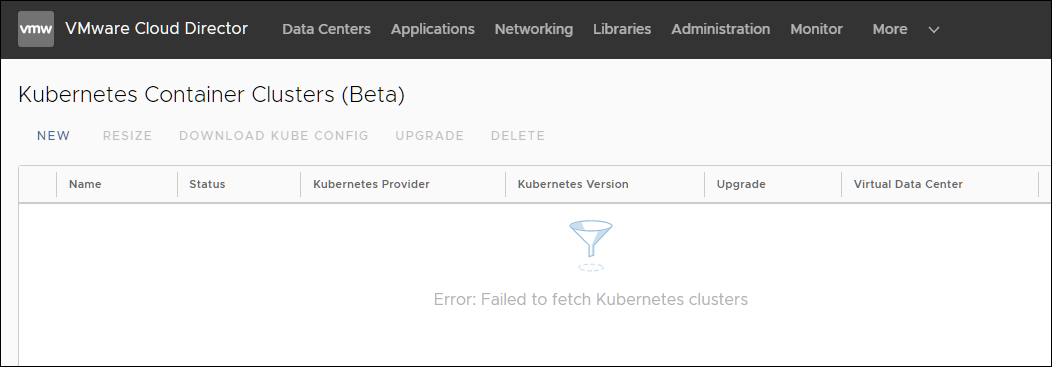

    The real problem is, if I login to rs-bg-2-ec site, and go to another site by SSO, and then open CSE UI plugin, it will not be able to show any clusters, it will display message "Error: Failed to fetch Kubernetes clusters"


    There is 401 Unauthorized HTTP request to rs-bg-1-ec site's /api/session url and there is a "CSE UI: Error fetching sites" message in browser console.



    Note: Similar problems were noticed in CSE 3.1 when using multisite setup.







  • 2.  RE: CSE with Multisite

    Broadcom Employee
    Posted Aug 26, 2022 02:59 PM

    Hi ,

    Thank you for your feedback. We are looking into this.

    When SSO login fails after clicking the cse4-rs-bg-1-test-1 link on the rs-bg-2-ec, do you see any specific error?

    Would you please also elaborate on when you log into the rs-bg-2-ec site and go to another site by SSO, what specific steps do you do to get to the other site?



    Thank you,



    Timothy



  • 3.  RE: CSE with Multisite

    Posted Aug 26, 2022 03:18 PM
      |   view attached

    I don't see any specific error, because it opens in new tab without inspect element so I can't track http requests. Will report if I find some error.

    When I login to rs-bg-2-ec site and want to go to another site by SSO I just click on site name in "Data Centers" -> "Virtual Data Center" like in picture attached





  • 4.  RE: CSE with Multisite

    Broadcom Employee
    Posted Sep 08, 2022 01:42 PM

    Hi

    Sorry for the delay; my message did not go through.



    Would you please log into each site and go to the container plugin on each site? Does each site show clusters successfully?



    Thank you



  • 5.  RE: CSE with Multisite

    Posted Sep 09, 2022 07:11 AM

    Yes, it does, but only If I login to each site separately.

    If I login to rs-bg-2 and switch to rs-bg-1 site from the "Data centers" page of tenant portal, then I get "Error: Failed to fetch Kubernetes clusters" because of "401 Unauthorized" request to /api/session and the rezulting "CSE UI: Error fetching sites".

    Since this is evident even on CSE 3, should I open SR and debug it there and give VMware with screen sharing session so someone can better describe problem and collect what is going on?



  • 6.  RE: CSE with Multisite

    Posted Sep 09, 2022 07:47 AM

    PS. Sent on behalf of



  • 7.  RE: CSE with Multisite

    Broadcom Employee
    Posted Sep 15, 2022 04:03 PM

    Hi
    I apologize that my messages are not going through. Yes please open an SR; please let me know when this is submitted and the number if possible.
