Hi,
I created a script that takes a CSV file and creates DNAT and SNAT rules in vCloud Director on the NSX-T Edge. SNAT works without issues, DNAT rules that do have an applicationPortProfile work as well, but when the applicationPortProfile should be ANY, I can't get it to work.
Normally the JSON I send when a ApplicationPortProfile is used looks like this:
{
"logging": true,
"type": "DNAT",
"name": "GabeTest",
"description": "Test Rule",
"dnatExternalPort": "any",
"applicationPortProfile": {
"name": "LDAP-tcp-636",
"id": "urn:vcloud:applicationPortProfile:ede2c52a-xxxxxx"
},
"firewallMatch": "MATCH_EXTERNAL_ADDRESS",
"enabled": true,
"externalAddresses": "92.xx.xx.xx",
"internalAddresses": "192.xx.xx.xx"
}
That works fine.
But for "ANY", I can't seem to find the correct way to create the JSON. When I leave out ApplicationPortProfile completely, the API accepts my command, but in vCloud Director I get an error creating the rule:
[ fbd0158b-xxxxxxxx ] Bad Request: Error occurred in the backing network provider: Field level validation errors: {value 'any' of property translated_ports violates format 'port-or-range'}, error code 255
I tried several options with the applicationportprofile, leaving the fields in it, but empty or setting to $null, but nothing works. Last resort is to create an ANY application group but I don't think that is the way to do it.

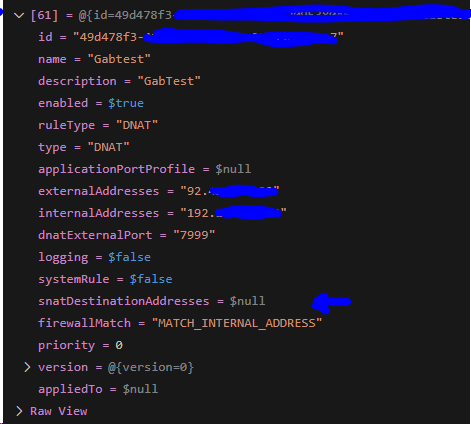

When I create such a rule manually and then read the rule from the api, it looks like this in vscode (powershell):
I have no idea how to address this, any tip is welcome
