NSX-T 3.1.2 Advance Networking and Security tab missing

[kgohel06]

Hi All,

I am new to NSX-T, I have deployed NSX-T in my lab, and working on installing Vm-Series (north-south). however, I don't see Advance Networking and Security tab.

Any suggestions?

[ShahabKhan]

Hi, There is no Advance Networking and Security tab in NSX-T. For Security related configuration like dFW go to Security & if you want to configure any Network services like Routing, Segments or NAT, then go to Networking.

Below are the links for NSX-T documentation which you can refer to learn about the same.

Design Guide: https://nsx.techzone.vmware.com/resource/nsx-t-reference-design-guide-3-0#_Toc505156081

Administration Guide: https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-FBFD577B-745C-4658-B713-A3016D18CB9A.html

Installation Guide: https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/installation/GUID-3E0C4CEC-D593-4395-84C4-150CD6285963.html

Happy Learning !!!

[kgohel06]

no, I want to deploy PAN firewall Vm-series on NSX-T. based on the PAN documentation, I need to deploy it from NSX-manager.  I added screenshots and link to PAN doc to my original post.

any suggestions?



[Sree]

If you have registered PA with NSX-T, you will be able to select it under Service Deployment Tab (System-Service Deployments), later you can create the policies under Security->Network Introspection(E-W)

[kgohel06]

As per my understanding, to deploy E-W PAN firewall, you can deploy is through System>Service Deployment. but for N-S PAN firewall, it can be deployed from "Advance Networking and Security". Is that not true anymore?

[Jefferson Cowart]

If you're looking for a vCenter plugin like NSX-V provides, you won't (generally) find that. NSX-T has it's own UI separate from vCenter.

There is an option for deploying NSX for security-only use cases from vCenter. In that case you do get a limited plugin. See https://www.youtube.com/watch?v=9-mdB2cpvBw for more details.

[kgohel06]

no, I want to deploy PAN firewall Vm-series on NSX-T. based on the PAN documentation, I need to deploy it from NSX-manager.  I added screenshots to my original post.

[kgohel06]

If you see attached screenshot, I don't see "Advance Networking and Security tab in version 3.1.

I see other blogger's running 2.4 version, I see "Advance Security and Networking tab."

I want to install VM-series firewall in NSX-T.

Based on https://docs.paloaltonetworks.com/vm-series/9-1/vm-series-deployment/set-up-the-vm-series-firewall-on-nsx/set-up-the-vm-series-firewall-on-nsx-t/deploy-the-vm-series-firewall-on-nsx-t/configure-the-service-definition-on-panorama#id94ddc10d-8ed8-45f2-8d68-4780432e136d

Step 10- I need to configure it from NSX-T manager "Advance Networking and Security".  Any suggestions?



[Yamato Sakai]

In short, NSX changes the UI many times.

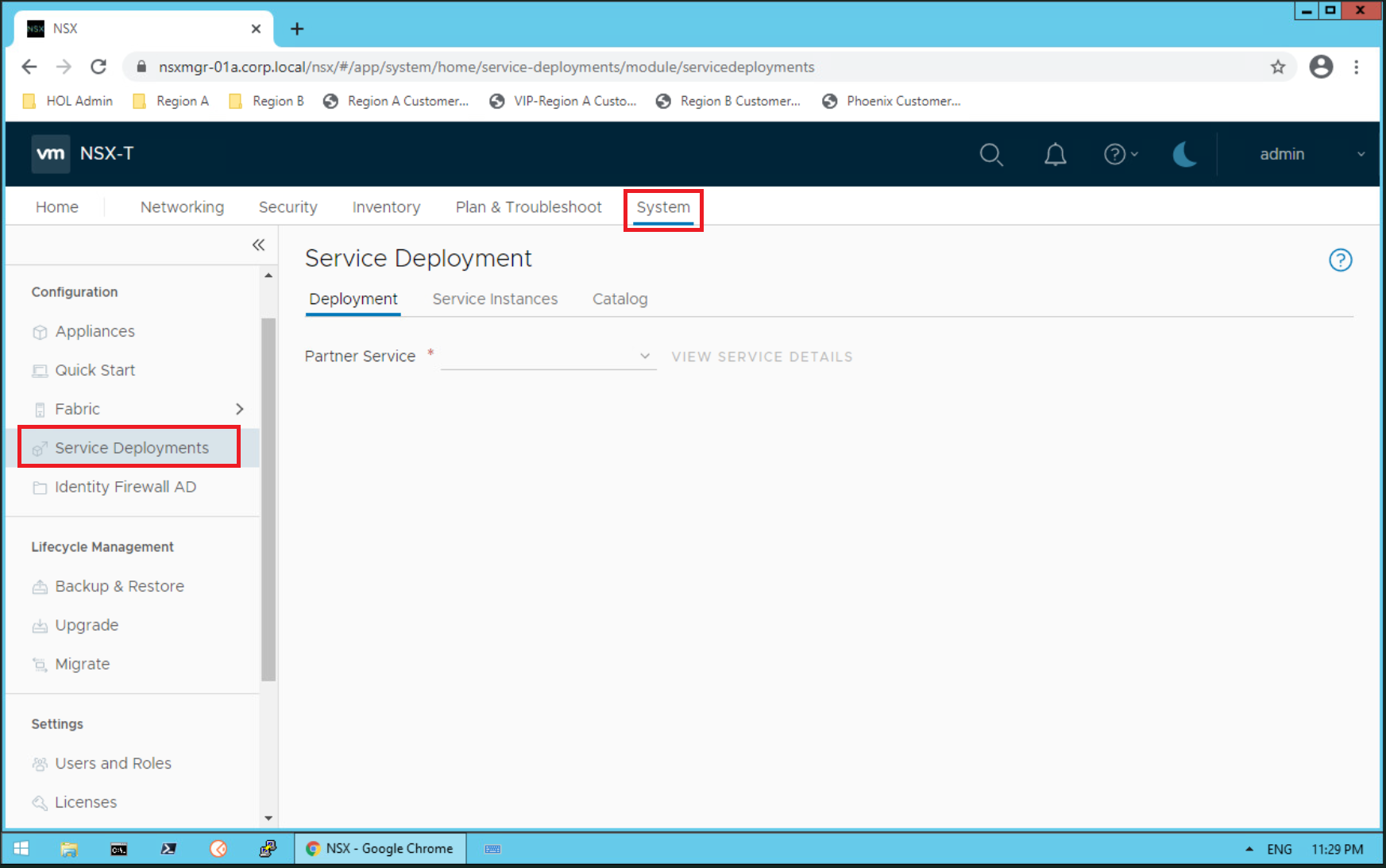

The menu you would like to operate is in Ssystem as below.

This is an appendix. This is a video that how to deploy VM Series in NSX-T (But this video is old NSX-T, so different UI.)

https://www.youtube.com/watch?v=x4gGRCr3yMg

Please use the menu in System.
