  • 1.  Configuring Transport nodes for NSX-t

    Posted Mar 18, 2022 08:26 PM

    I have a 2 node cluster in a nested environment, and whenever I try to configure the hosts for NSX i get this error :

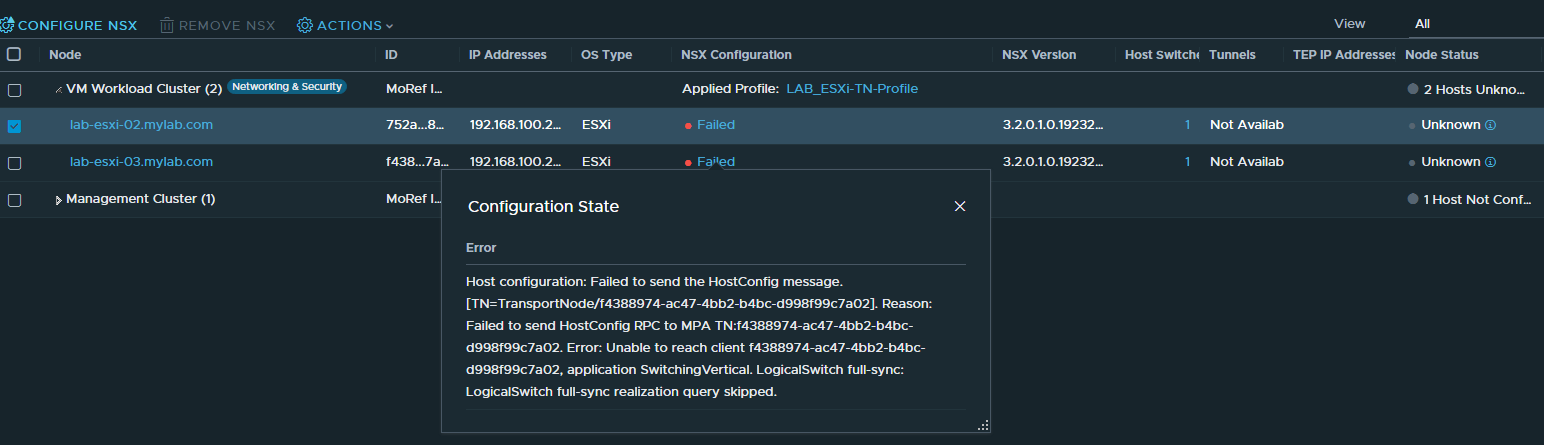

     Host configuration: Failed to send the HostConfig message. [TN=TransportNode/3a82b3c5-1dc3-49cd-b72a-65e4cf5546ed]. Reason: Failed to send HostConfig RPC to MPA TN:3a82b3c5-1dc3-49cd-b72a-65e4cf5546ed. Error: Unable to reach client 3a82b3c5-1dc3-49cd-b72a-65e4cf5546ed, application SwitchingVertical. LogicalSwitch full-sync: LogicalSwitch full-sync realization query skipped.



    Anyone ever had this ? Thanks for reading



  • 2.  RE: Configuring Transport nodes for NSX-t

    Posted Mar 22, 2022 06:59 AM

    Can the manager reach the esxi hosts? Routing maybe ? Or a firewall ?







  • 3.  RE: Configuring Transport nodes for NSX-t

    Posted Apr 26, 2022 07:37 AM

    I had same issue in my home lab setup.

    From NSXT mamanger can ping to host, no issue.

    NO firewall or anything.

    Anyone have solution to this problem


    thanks





  • 4.  RE: Configuring Transport nodes for NSX-t

    Posted Apr 27, 2022 06:49 AM

    Hi all,

    Problem resolved.

    The memory of the ESXi host need to be minimum 16GB.

    https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.1/installation/GUID-AECA2EE0-90FC-48C4-8EDB-66517ACFE415.html

    Due to my nested lab had limited memory I set the ESXi host (transport node) memory to only 8GB.

    Actually the host is not utilize even 20% of memory as I only loaded with 2 VMs (tiny linux) per host.

    8GB memory ,It failed with many error message, and end up totaly failed to prepare ESXi host as TN.



    After I changed the memory of ESXi host to 16GB , the configration/installation  of ESXI as TN went smoothly and sucessfully.

    The ESXI host need to have 16GB memory as stated in document to comply with the NSX-T 3.1 for transport node configuration/installtion process.



    p/s: after sucessfully configure NSX on host transport node , I change the node memory back to 8GB & 12GB to test it actual requirement. It work perfectly with 12GB but failed  with 8GB ( it went to power off state).

    ESXi host with NSX-T , the memory resouce is 16GB . Not include the VMs resource.





  • 5.  RE: Configuring Transport nodes for NSX-t

    Posted Apr 26, 2022 05:46 PM

    Lynxo,



    I am having same issue now on my home lab setup.

    How do you solve this issue ?



    thanks





  • 6.  RE: Configuring Transport nodes for NSX-t

    Posted Oct 12, 2023 07:37 AM

    I solve this problem by adding "nsx-user" and "da-user" on Lockdown mode for the concerned ESXi.



  • 7.  RE: Configuring Transport nodes for NSX-t

    Posted Feb 07, 2024 01:31 PM

    HI There

    this NSXT alert appeared on one of my hosts in a 3 node vpshere cluster. esxi 7.0.3 NSXT 3.2.2.

    Rebooting the esxi host did not solve the problem.

    However this API call did solve the problem

    POST <NSXT-FQDN>/api/v1/transport-nodes/<transportnode-id>?action=resync_host_config

    you will get the transport-id from the ID displayed for the esxi hosts in NSXT (click on "View Details" and copy the ID value)

    regards
