  • 1.  Configure static route

    Posted Jan 03, 2023 01:42 PM

    Dear Team,

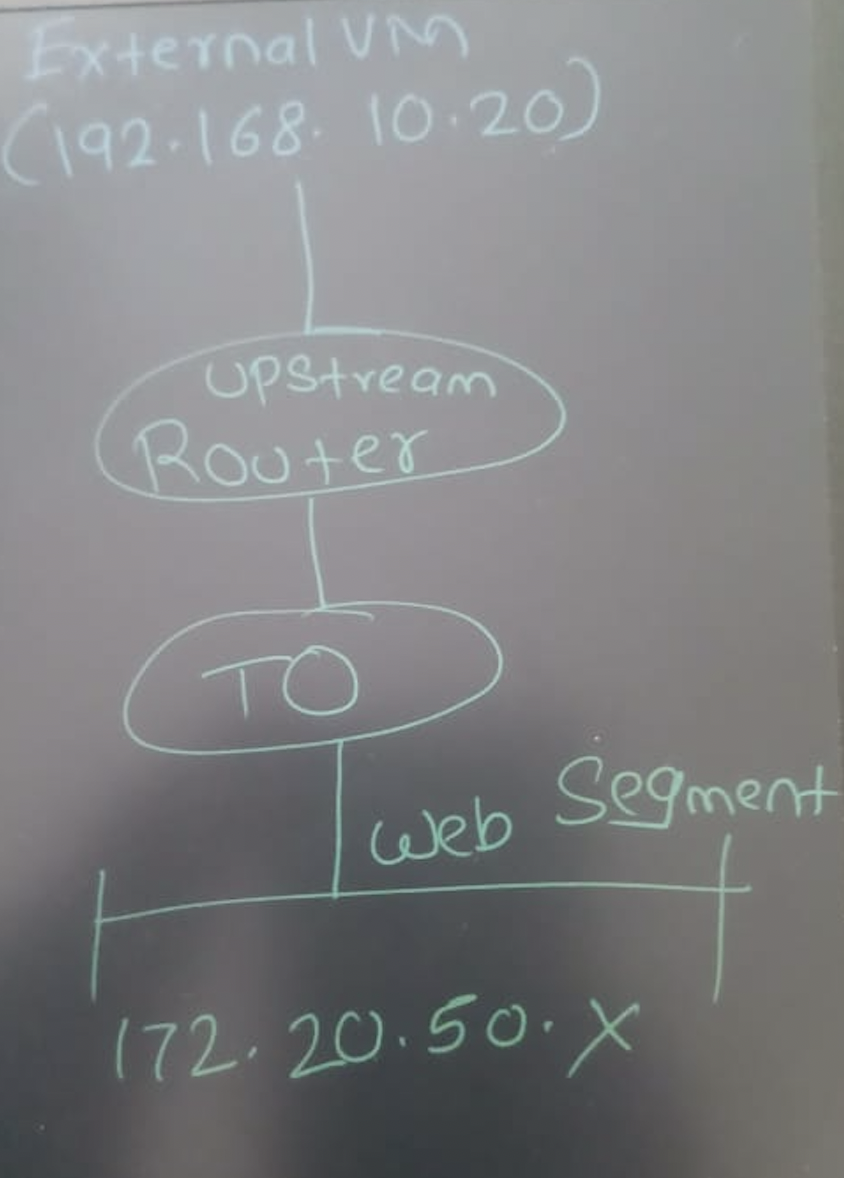

    As per below topology, I would like to configure static route so that Web VM Should reach external VM (vice versa).


    Uplink Interface IP: 192.168.70.2 => Upstream Router Ip: IP: 192.168.70.1

    Uplink Interface IP: 192.168.80.2 => Upstream Router Ip: IP: 192.168.80.1



    How to configure the static route so that i can establish connectivity between them. I don't want to enable BGP/OSPF routing to achieve this.



    Thank you in advance.









  • 2.  RE: Configure static route

    Posted Jan 04, 2023 08:24 AM

    Hi,

    Follow the below link to configure the static route on T0.

    https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-BC6A4474-C93C-4FE7-A834-9E6D516909F9.html

    Since you have two paths available, you have to configure the static route for both paths.

    Ex.

    0.0.0.0/0 -> 192.168.70.1

    0.0.0.0/0 -> 192.168.80.1

    Also, you have to configure a static routes on the Upstream Router as well for the Web VM Network/Subnet.

    ip route 172.20.50.0 255.255.255.0 192.168.70.2

    ip route 172.20.50.0 255.255.255.0 192.168.80.2

    Regards



  • 3.  RE: Configure static route

    Posted Jan 04, 2023 03:46 PM

    Thank you Sir,



    I tried to create static route on T0 and Upstream router.

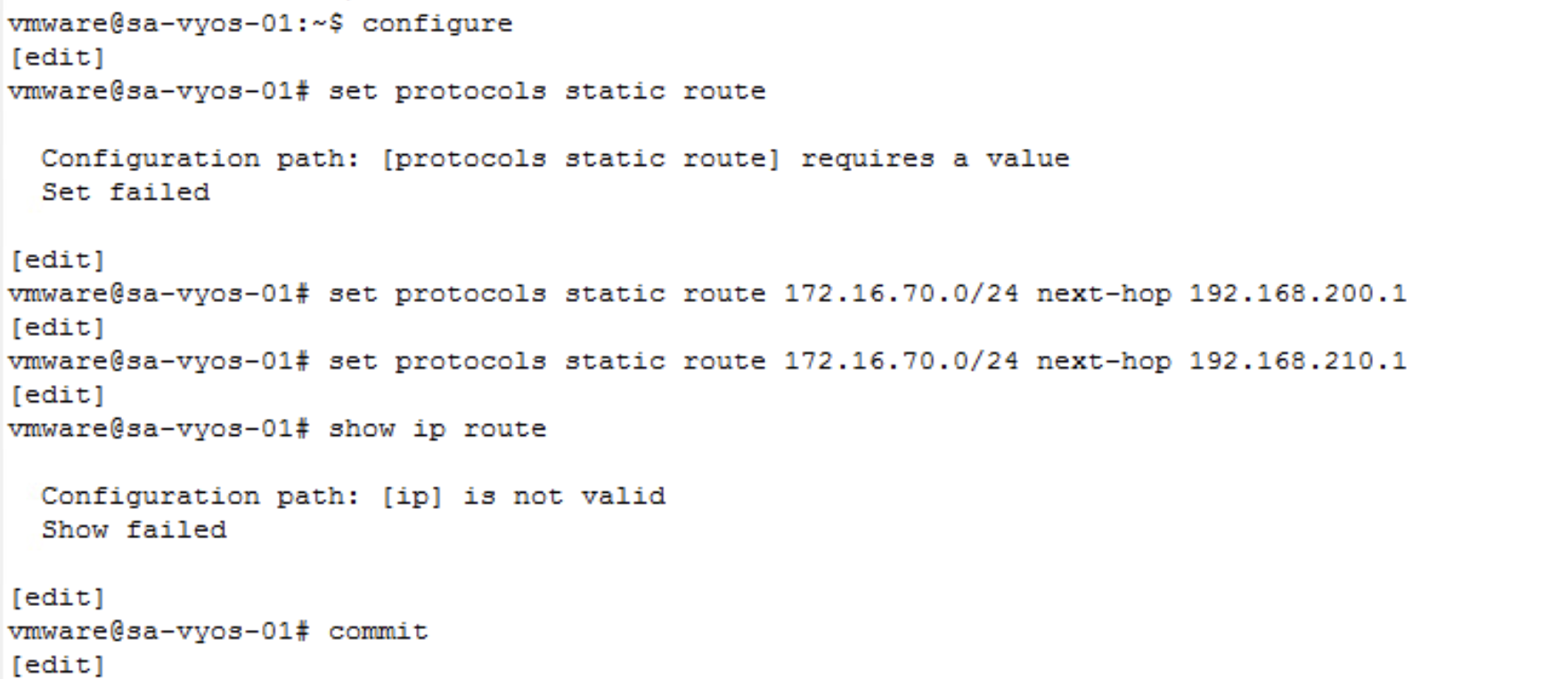

    Create static route on Upstream Router:

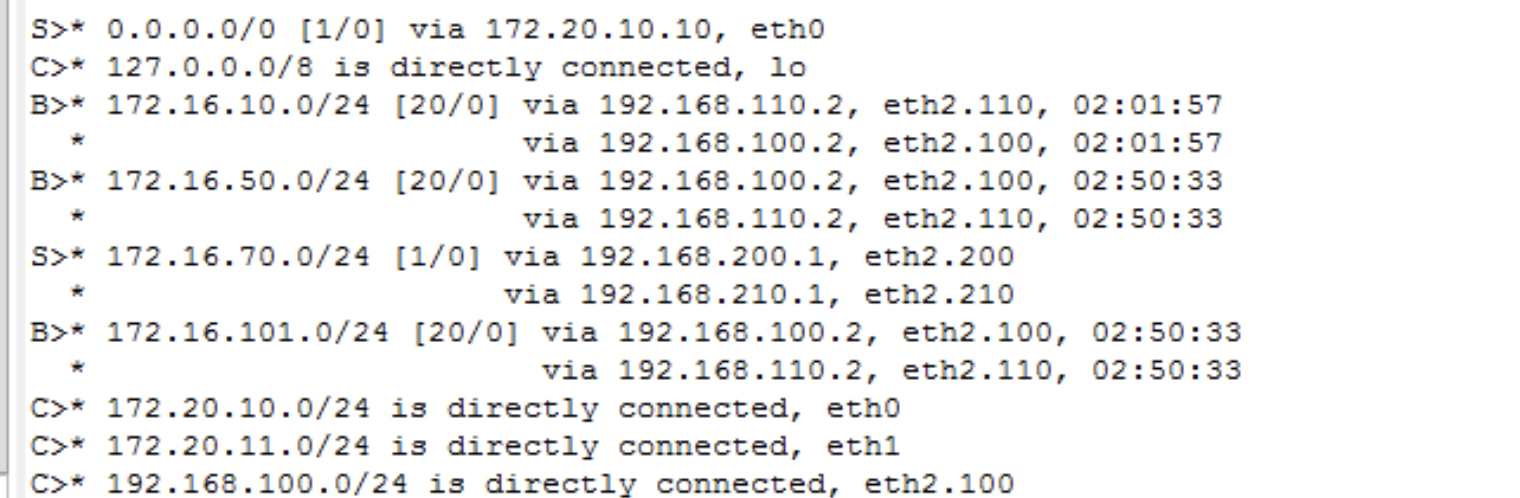

    Static route on upstream router:

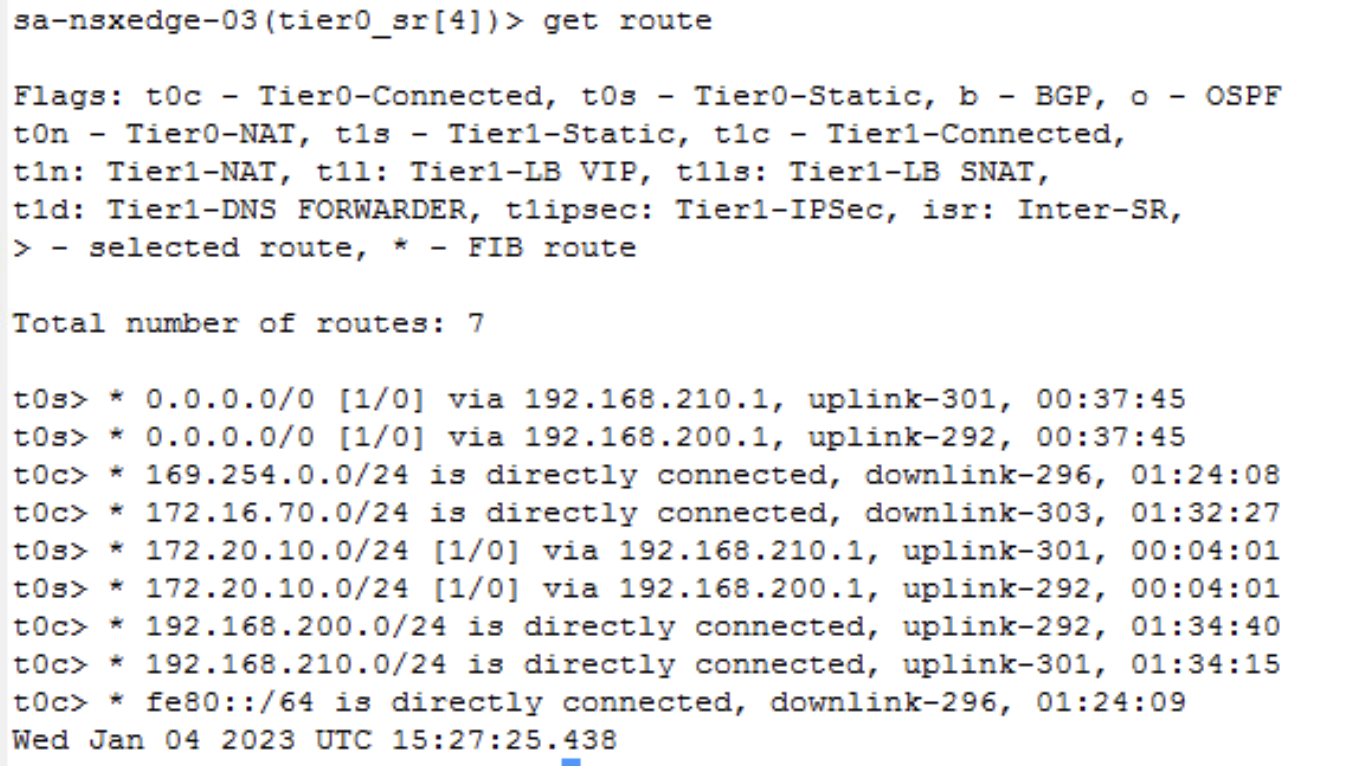

    Static route created on T0:

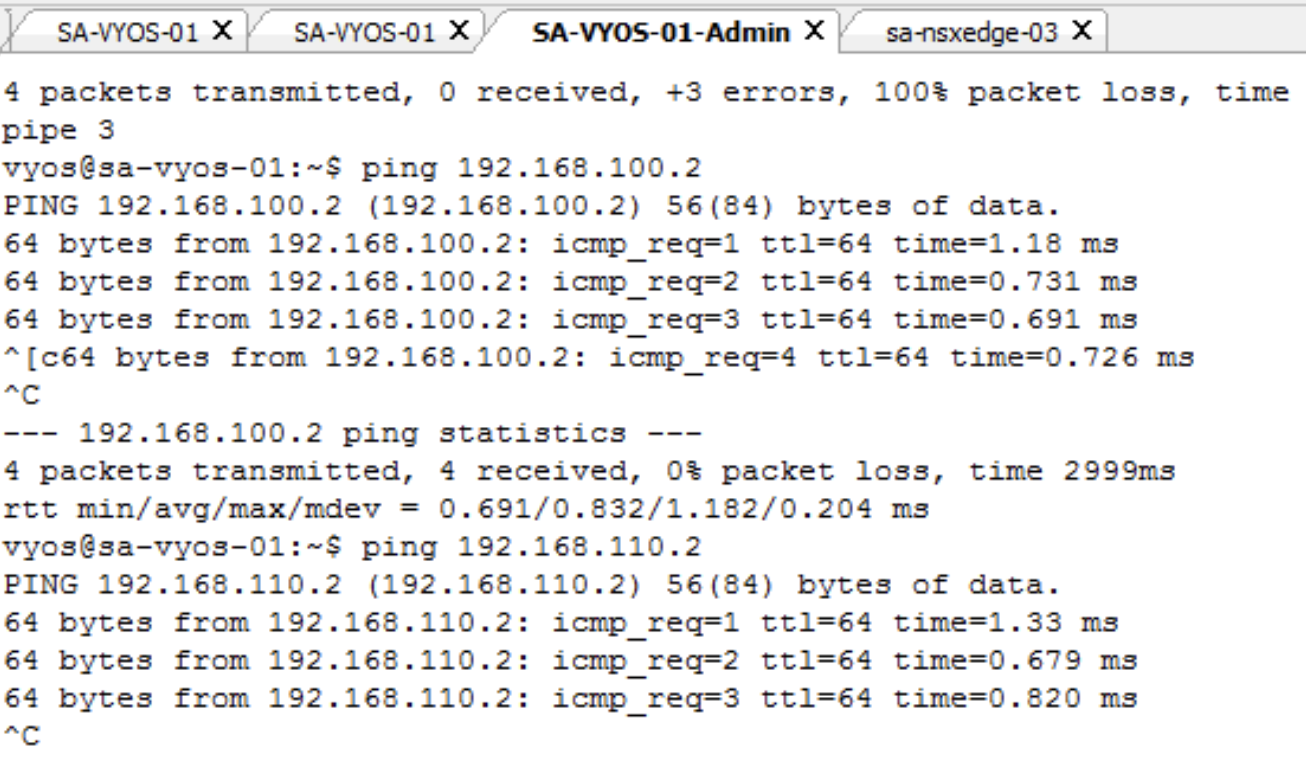

    Able to ping the T0 IP from Upstream router:




    Also able to ping upstream route from T0 but still not able to ping external servers from VM (vice versa), Please asisst how to resolve the same.





















  • 4.  RE: Configure static route

    Posted Jan 06, 2023 04:04 AM

    Dear Team,



    I tried to configure static route but still it doesn't work for me, Could some1 please assist me how to resolve the same.



    thank you in advance
