  • 1.  vSAN default Storage Policy Raid Configuration

    Posted Jun 22, 2017 01:38 AM

    Hi All,

    I am new to vSAN. In default vSAN storage policy, there is no raid configuration information. My requirement is to have Raid-1 as default.

    Unfortunately, I cant find any documentation on this. Hope some experts can advise on this.

    Thanks,

    Max



  • 2.  RE: vSAN default Storage Policy Raid Configuration
    Best Answer

    Posted Jun 22, 2017 08:32 AM

    Hello Max,

    Welcome to Communities and welcome to vSAN!

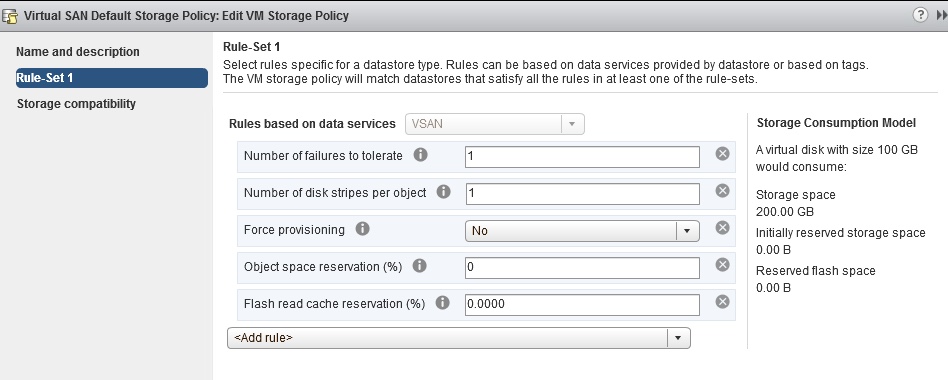

    As you can see from your screenshot the 'Virtual SAN Default Storage Policy' has 'Failures To Tolerate = 1' (FTT=1), this is a Raid-1 configuration in that there are two replica data components created for each Object that this policy is applied to.

    This document gives an overview of some of the different Rule-sets that can be applied using Storage Policies and their function:

    pubs.vmware.com/vsphere-60/index.jsp?topic=%2Fcom.vmware.vsphere.virtualsan.doc%2FGUID-08911FD3-2462-4C1C-AE81-0D4DBC8F7990.html

    Bob

    -o- If you found this comment useful please click the 'Helpful' button and/or select as 'Answer' if you consider it so, please ask follow-up questions if you have any -o-



  • 3.  RE: vSAN default Storage Policy Raid Configuration

    Posted Jun 22, 2017 11:11 PM

    Got it. Thank you!
