Need active & standby uplink details of standard & distributed switches/portgroups

[JDMils_Interact]

I'm using this code to get the Standard & Distributed switch active & standby uplinks, however I only get the active/standby uplink names for the Standard switches and not the dvSwitches:

Standard switch results:

"ESX","vSwitch","vSwitch Active NIC","vSwitch Standby NIC","vSwitch Unused NIC","Portgroup","PortGroup VLAN","Device","IP","PortGroup Active NIC","PortGroup StandBy NIC","PortGroup Unused NIC"
"MyHost01","vSwitch0","vmnic0","vmnic6",,"Management Network","100","vmk0","172.2.12.3","vmnic0,vmnic6","",""

dvSwitch results:

"ESX","vSwitch","vSwitch Active NIC","vSwitch Standby NIC","vSwitch Unused NIC","Portgroup","PortGroup VLAN","Device","IP","PortGroup Active NIC","PortGroup StandBy NIC","PortGroup Unused NIC"
"MyHost01","dvSwitch-MGT-01",,,,"mgmt_100",,"","","","",""

I have the following setup:

vCenter Name: VC01 (Build 22837322)
Host Name: MyHost01
Standard Switch set to vmnic0=Active, vmnic6=Standby (vLAN100 thus using the same uplinks)
dvSwitch port group 100 shows dvUplink2=Active, dvUplink1=Standby.

Why does the code not show the vLAN uplink active & standby values for each portgroup in the dvSwitch?

Code:

Original code form here:

http://www.underthefleece.co.uk/2015/06/powercli-generating-network.html

[LucD]

Didn't you ask a similar question 2 years ago in Export PortGroup uplink details

It looks like the code I provided then was not migrated along with the VMTN migration

------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------

[JDMils_Interact]

That was to get the uplink details for each host. Code is:

Write-Host "Script Starting" -ForegroundColor Green
$report = @()
foreach($sw in (Get-VirtualSwitch -Distributed)){
    $uuid = $sw.ExtensionData.Summary.Uuid
    $sw.ExtensionData.Config.Host | %{
        $esx = Get-View $_.Config.Host
        $netSys = Get-View $esx.ConfigManager.NetworkSystem
        $netSys.NetworkConfig.ProxySwitch | where {$_.Uuid -eq $uuid} | %{
            $_.Spec.Backing.PnicSpec | %{
                $row = "" | Select Host,dvSwitch,PNic
                $row.Host = $esx.Name
                $row.dvSwitch = $sw.Name
                $row.PNic = $_.PnicDevice
                $report += $row            }
        }
    }
}
$report

Write-Host "Script Ended" -ForegroundColor Green

The output is this:

Host                                        dvSwitch          PNic
----                                        --------          ----
MyHost01                             dvSwitch-01   vmnic6
MyHost01                             dvSwitch-01   vmnic8

I'm now expanding to getting the active & standby uplinks of Standard switches AND dvSwitches via their port groups thus the different code.

[LucD]

Is this reporting everything you want to see?

Get-VirtualSwitch -PipelineVariable switch |
Get-VirtualPortGroup -PipelineVariable pg |
ForEach-Object -Process {
    $obj = New-Object -TypeName PSObject -Property ([ordered]@{
            VMHost = ''
            Switch = $switch.Name
            Portgroup = $pg.Name
            ActivepNIC = ''
            StandbypNIC = ''
        })
    if ($pg -is [VMware.VimAutomation.ViCore.Impl.V1.Host.Networking.VirtualPortGroupImpl]) {
        $obj.VMHost = (Get-View $pg.VMHostId).Name
        $obj.ActivepNIC = $pg.ExtensionData.Spec.Policy.NicTeaming.NicOrder.ActiveNic -join '|'
        $obj.StandbypNIC = $pg.ExtensionData.Spec.Policy.NicTeaming.NicOrder.StandbyNic -join '|'
        $obj
    } elseif ($pg -is [VMware.VimAutomation.ViCore.Impl.V1.Host.Networking.DistributedPortGroupImpl]) {
        if ($pg.ExtensionData.Host) {
            $ports = Get-VDPort -VDSwitch $switch.Name -ActiveOnly
            Get-View -Id $pg.ExtensionData.Host -PipelineVariable esx |
            ForEach-Object -Process {
                $esxObj = $obj.PSObject.Copy()
                $esxObj.VMHost = $esx.Name
                $esxObj.ActivepNIC = ($ports | Where-Object { $_.ProxyHost.Name -eq $esx.Name -and
                        $_.Name -in $pg.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.ActiveUplinkPort }).ConnectedEntity -join '|'
                $esxObj.StandbypNIC = ($ports | Where-Object { $_.ProxyHost.Name -eq $esx.Name -and
                        $_.Name -in $pg.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.StandbyUplinkPort }).ConnectedEntity -join '|'
                $esxObj
            }
        }
    }
}

------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------

[JDMils_Interact]

I don't understand the output of your script- there's a lot pf duplication of results?

[LucD]

Not sure what you mean, but the output is per ESXi node, and each ESXi node has the same numbering for vNICs (vmnic01, vmnic02, ...)

------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------

[JDMils_Interact]

The output looks like this:

VMHost      : MyHost15.MyDomain.Com
Switch      : dvSwitch-MySwitch
Portgroup   : dvSwitch-My-DVUplinks-47
ActivepNIC  : vmk5|vmk3|vmk6|Network adapter 1|Network adapter 1|Network adapter 1
StandbypNIC : vmk5|vmk3|vmk6|Network adapter 1|Network adapter 1|Network adapter 1

Not sure how you can have the same connections as active AND standby?

What I'd like to see is this:

Switch01 (standard & dv)

Host01

vLAN01 Name & ID

which uplink the vLAN has active, standby and unused

vLAN02 Name & ID

which uplink the vLAN has active, standby and unused

Host02

vLAN01 Name & ID

which uplink the vLAN has active, standby and unused

vLAN02 Name & ID

which uplink the vLAN has active, standby and unused

Switch02 (standard & dv)

....

[LucD]

There was an error in the

$esxObj.VMHost

line for a VDS. I corrected the code above.

Is that a VDS with only one ESXi node connected?
Can you show what Get-VDPort returns for that VDS?

Are you sure the 2nd condition (after the -and) is taken correctly?
It shouldn't be showing VMKernel or VM Network Adapters in the output.

------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------

[JDMils_Interact]

The vDS has multiple hosts attached to it. Output of the Get-DVPort shows the following (removed confidential data) result:

Key	Name	ConnectedEntity	Portgroup	IsLinkUp	MacAddress	Vlan	Switch
---	----	---------------	---------	--------	----------	----	------
28		vmk3	Site03_vMotion_103	TRUE	00:50:56:6c:e1:01		dvSwitch-MySwitch
29		vmk1	Site03_vMotion_103	TRUE	00:50:56:65:11:e5		dvSwitch-MySwitch
30		vmk1	Site03_vMotion_103	TRUE	00:50:56:65:f7:26		dvSwitch-MySwitch
31			Site03_vMotion_103				dvSwitch-MySwitch
32			Site03_vMotion_103				dvSwitch-MySwitch
33			Site03_vMotion_103				dvSwitch-MySwitch
34			Site03_vMotion_103				dvSwitch-MySwitch
35			Site03_vMotion_103				dvSwitch-MySwitch
36			Site03_vMotion_103				dvSwitch-MySwitch
37			Site03_vMotion_103				dvSwitch-MySwitch
38			Site03_vMotion_103				dvSwitch-MySwitch
39			Site03_vMotion_103				dvSwitch-MySwitch
40			Site03_vMotion_103				dvSwitch-MySwitch
142		vmk3	Site03_vMotion_103	TRUE	00:50:56:67:b6:cc		dvSwitch-MySwitch
404		Network adapter 1	Site03_Mgmt_100	TRUE	00:50:56:c0:11:21		dvSwitch-MySwitch
405		Network adapter 1	Site03_Mgmt_100	TRUE	00:50:56:c0:bf:c5		dvSwitch-MySwitch
406			Site03_Mgmt_100				dvSwitch-MySwitch
407		Network adapter 1	Site03_Mgmt_100	TRUE	00:50:56:c0:c5:b1		dvSwitch-MySwitch
408		Network adapter 1	Site03_Mgmt_100	TRUE	00:50:56:c0:cb:54		dvSwitch-MySwitch
409			Site03_Mgmt_100				dvSwitch-MySwitch
410			Site03_Mgmt_100				dvSwitch-MySwitch
411			Site03_Mgmt_100				dvSwitch-MySwitch
412			Site03_Mgmt_100				dvSwitch-MySwitch
413			Site03_Mgmt_100				dvSwitch-MySwitch
414			Site03_Mgmt_100				dvSwitch-MySwitch
415			Site03_Mgmt_100				dvSwitch-MySwitch
416			Site03_Mgmt_100				dvSwitch-MySwitch
417			Site03_Mgmt_100				dvSwitch-MySwitch
418			Site03_Mgmt_100				dvSwitch-MySwitch
419			Site03_Mgmt_100				dvSwitch-MySwitch
420			Site03_Mgmt_100				dvSwitch-MySwitch
421			Site03_Mgmt_100				dvSwitch-MySwitch
422			Site03_Mgmt_100				dvSwitch-MySwitch
423			Site03_Mgmt_100				dvSwitch-MySwitch
424			Site03_Mgmt_100				dvSwitch-MySwitch
425			Site03_Mgmt_100				dvSwitch-MySwitch
426			Site03_Mgmt_100				dvSwitch-MySwitch
1574	dvUplink1	vmnic1	dvSwitch-Site03-DVUp...	TRUE	00:00:00:00:00:00		dvSwitch-MySwitch
1575	dvUplink2	vmnic6	dvSwitch-Site03-DVUp...	TRUE	00:00:00:00:00:00		dvSwitch-MySwitch
1576	dvUplink3		dvSwitch-Site03-DVUp...				dvSwitch-MySwitch
1577	dvUplink4		dvSwitch-Site03-DVUp...				dvSwitch-MySwitch

[LucD]

That looks like what I expected.
But it should only show those last 4 ports, provided the ProxyHost corresponds with the ESXi node.

Can you check what is listed as Active and Standby for that VDS?

$pg = Get-VDSwitch -Name 'dvSwitch-MySwitch' | Get-VDPortgroup -Name 'dvSwitch-My-DVUplinks-47'

Write-Host 'Active'
$pg.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.ActiveUplinkPort
Write-Host 'Standby'
$pg.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.StandbyUplinkPort

------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------

[JDMils_Interact]

I just get this:

Active
Standby

And I think this is correct because uplinks in the dvSwitch do not have active & standby ports, at least not in vSphere 7.0u3p. They are just representations for the physical connections between the host and the upstream switch and are not teamed. My belief is that the individual port groups are the ones which can be "pinned" to uplinks and this seems to be the case when viewing the properties of the UPLINKS and the port groups.

The Teaming and failover of a port group is represented by:

dvUplink1, dvUplink2, dvUplink3 & dvUplink4

The actual uplink is based on the host as to which vmnic is being used as the uplink for that dvSwitch. This is why I suggested we change the way we look at this and use this format instead:

Switch01 (standard & dv)

Host01
vLAN01 Name & ID
which uplink the vLAN has active, standby and unused

vLAN02 Name & ID
which uplink the vLAN has active, standby and unused

Host02
vLAN01 Name & ID
which uplink the vLAN has active, standby and unused
vLAN02 Name & ID
which uplink the vLAN has active, standby and unused

Switch02 (standard & dv)

....

My eventual goal is to have a CSV file in this format:

Switch Name, Host Name, vLAN Name, vLAN ID, Active uplink (vmnic#), Standby uplink (vmnic#), Unused uplink (vmnic#)

[LucD]

Since I don't have that older vSphere version running anymore, I can't verify your claim that "... dvSwitch do not have active & standby ports" I'm afraid.
But I don't think that is correct.

You can check via the Web client to verify that there are Teaming options on a VDS and its Portgroups.

The reasons that no Active or Standby ports are shown, could be twofold.

• No Teaming was defined
• The Teaming is defined on the VDS and not on the portgroup



------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------

[JDMils_Interact]

From the vCenter GUI, dvSwitch uplink settings do not show teaming:

Port Group uplink settings:

As you can see, the distributed switch only defines which uplink on each host are used for the dvSwitch.

The Portgroup is then teamed across the uplinks defined in the dv switch for each host.

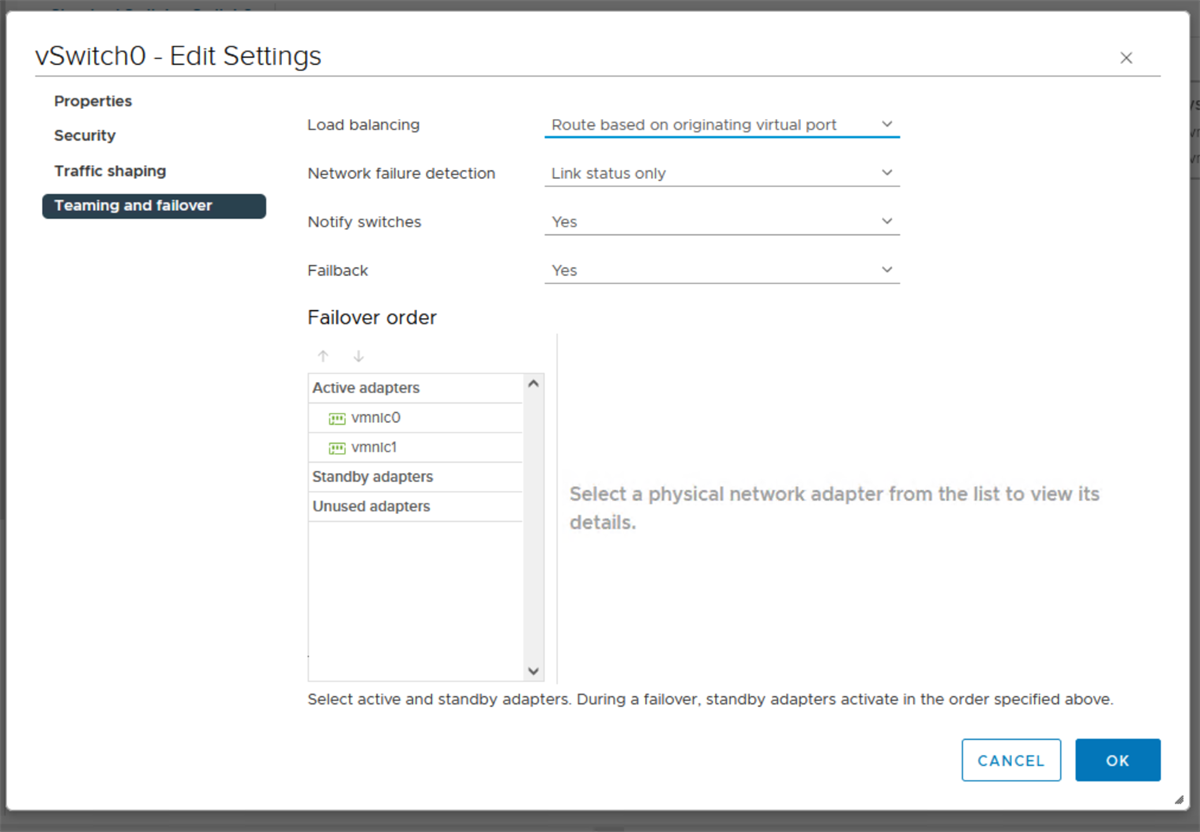

The Standard switch on the hosts is different. The switch itself has Teaming and Failover settings which can be user defined.

Standard Switch PortGroup teaming:

[JDMils_Interact]

The original code here: http://www.underthefleece.co.uk/2015/06/powercli-generating-network.html, works well on Standard switches but on dvSwitches the nic usage is blank.

[JDMils_Interact]

I got the following code to work somewhat. It cycles through all hosts and from the standard & distributed switches on each host, it derives the uplinks used by each port group. The only problem I have now is that for the distributed switches, the Active & Standby links for each port group shows as dvUplink1, dvUplink2, etc and I need to convert these to the actual physical vmnics used by each host.

The code:

#
# ===========================================================
# Function Start
# ===========================================================
#
Function GetDVSwitchDetails
    {
    param(
        [Object]$ESXiHost,
        [Object]$oSwitchObject
        )

    $PG = get-virtualportgroup -VMHost $esxihost -VirtualSwitch $oSwitchObjects -Distributed
    $tmpAllPortGroups = @()
    ForEach ($ESXiPG in $PG)
        {
        $Item = New-Object PSObject
        Write-Host "+-------------------------------------------------------------------------------------+"
        Write-Host "PortGroup Name: $($ESXiPG.Name)"
        Write-Host "PortGroup Key: $($ESXiPG.Key)"

        Write-Host "Is Uplink: $($ESXiPG.ExtensionData.Config.UpLink)"
        Write-Host "vLAN: $($ESXiPG.extensionData.Config.DefaultPortConfig.VLAN.VLANID)"
        Write-Host "Active Uplinks: $($ESXiPG.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.ActiveUplinkPort )"
        Write-Host "Standby Uplinks: $($ESXiPG.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.StandbyUplinkPort )"
        Write-Host "+-------------------------------------------------------------------------------------+"
        Write-Host ""
        $Item | Add-Member -type NoteProperty -Name "Switch Name" -Value  $($oSwitchObject.Name)
        $Item | Add-Member -type NoteProperty -Name "Switch Type" -Value "Distributed"
        $Item | Add-Member -type NoteProperty -Name "Host Name" -Value  $($ESXiHost.Name)
        $Item | Add-Member -type NoteProperty -Name "PortGroup Name" -Value  $($ESXiPG.Name)
        $Item | Add-Member -type NoteProperty -Name "PortGroup Key" -Value   $($ESXiPG.Key)
        $Item | Add-Member -type NoteProperty -Name "Is Uplink" -Value       $($ESXiPG.ExtensionData.Config.UpLink)
        $Item | Add-Member -type NoteProperty -Name "vLAN" -Value            $($ESXiPG.extensionData.Config.DefaultPortConfig.VLAN.VLANID)
        $Item | Add-Member -type NoteProperty -Name "Active Uplinks" -Value  $($ESXiPG.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.ActiveUplinkPort -join ", ")
        $Item | Add-Member -type NoteProperty -Name "Standby Uplinks" -Value $($ESXiPG.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.StandbyUplinkPort -join ", ")
        $tmpAllPortGroups += $Item
        }
    Return $tmpAllPortGroups
    }

Function GetSTDSwitchDetails
    {
    param(
        [Object]$ESXiHost,
        [Object]$oSwitchObject
        )

    $PG = get-virtualportgroup -VMHost $esxihost -VirtualSwitch $oSwitchObjects -Standard
    $tmpAllPortGroups = @()
    ForEach ($ESXiPG in $PG)
        {
        $Item = New-Object PSObject
        Write-Host "+-------------------------------------------------------------------------------------+"
        Write-Host "PortGroup Name: $($ESXiPG.Name)"
        Write-Host "PortGroup Key: $($ESXiPG.Key)"

        Write-Host "Is Uplink: NA"
        Write-Host "vLAN: $($ESXiPG.VLANID)"
        Write-Host "Active Uplinks: $($ESXiPG.extensionData.Spec.Policy.NICTeaming.NICOrder.ActiveNIC )"
        Write-Host "Standby Uplinks: $($ESXiPG.extensionData.Spec.Policy.NICTeaming.NICOrder.StandbyNIC )"
        Write-Host "+-------------------------------------------------------------------------------------+"
        Write-Host ""
        $Item | Add-Member -type NoteProperty -Name "Switch Name" -Value  $($oSwitchObject.Name)
        $Item | Add-Member -type NoteProperty -Name "Switch Type" -Value "Standard"
        $Item | Add-Member -type NoteProperty -Name "Host Name" -Value  $($ESXiHost.Name)
        $Item | Add-Member -type NoteProperty -Name "PortGroup Name" -Value  $($ESXiPG.Name)
        $Item | Add-Member -type NoteProperty -Name "PortGroup Key" -Value   $($ESXiPG.Key)
        $Item | Add-Member -type NoteProperty -Name "Is Uplink" -Value       "NA"
        $Item | Add-Member -type NoteProperty -Name "vLAN" -Value            $($ESXiPG.VLANID)
        $Item | Add-Member -type NoteProperty -Name "Active Uplinks" -Value  $($ESXiPG.extensionData.Spec.Policy.NICTeaming.NICOrder.ActiveNIC -join ", ")
        $Item | Add-Member -type NoteProperty -Name "Standby Uplinks" -Value $($ESXiPG.extensionData.Spec.Policy.NICTeaming.NICOrder.StandbyNIC -join ", ")
        $tmpAllPortGroups += $Item
        }
    Return $tmpAllPortGroups
    }
#
# ===========================================================
# Function End
# ===========================================================
#
#
# ===========================================================
# Code Start
# ===========================================================
#
#
# Check if connected to vCenter server.
#
Write-Host "Script Starting." -ForegroundColor Green
Try
    {
    $ConnectionvCenter = $global:DefaultVIServers
    if ($ConnectionvCenter.Count -gt 0)
        # Connection exists.
        {
        Write-Host "Already connected to vCenter server '$($ConnectionvCenter.name)'. Continuing..." -foregroundcolor "Green"
        }
    Else
        {
        # No connection to vCenter.
        Write-Host "ERROR: Not connected to any vCenter servers. Try the command:" -ForegroundColor "Red"
        Write-Host "     Connect-ViServer <vCenterServerName>" -ForegroundColor "White"
        Write-Host "Stopping script." -ForegroundColor "Red"
        Write-Host ""
        Throw "Not connected to vCenter server."
        }
    }

# Ideally this would be in a Try..Catch block:

Catch
    {
    Exit
    }

$AllPortGroups = @()
foreach($esx in Get-VMHost)
    {
    Write-Host "Host Name: $($esx.name):"
    $oSwitchObjects = Get-VirtualSwitch -VMHost $esx -Standard

    ForEach($oSwitchObject in $oSwitchObjects)
        {
        Write-Host "Switch: $($oSwitchObject.Name):"
        $AllPortGroups += GetSTDSwitchDetails -ESXiHost $esx -oSwitchObject $oSwitchObject
        }

    $oSwitchObjects = Get-VirtualSwitch -VMHost $esx -Distributed
    ForEach($oSwitchObject in $oSwitchObjects)
        {
        Write-Host "Switch: $($oSwitchObject.Name):"
        $AllPortGroups += GetDVSwitchDetails -ESXiHost $esx -oSwitchObject $oSwitchObject
        }
    }

# This script will create a filename with the vCenter server name & date/time serial as part of the name:

$CurrPath = (Get-Location).path
$DateTimeSerial = Get-Date -Format "yyyy-MM-dd_HH_mm_ss"
$Filename = "$CurrPath\$($ConnectionvCenter.Name)_SwithAndPortGroups_$($DateTimeSerial).csv"
Write-Host "Exporting results to log file: [$Filename]" -ForegroundColor Yellow
$AllPortGroups | Export-CSV -Path $Filename -NoTypeInformation -UseCulture
Write-Host "Script Stopping." -ForegroundColor Green

Here's what the output looks like:

[LucD]

That is exactly what I'm doing in my snippet with these lines.
But I still don't understand why you get these strange results, for me that snippet is working.

                $esxObj.ActivepNIC = ($ports | Where-Object { $_.ProxyHost.Name -eq $esx.Name -and
                        $_.Name -in $pg.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.ActiveUplinkPort }).ConnectedEntity -join '|'
                $esxObj.StandbypNIC = ($ports | Where-Object { $_.ProxyHost.Name -eq $esx.Name -and
                        $_.Name -in $pg.extensionData.Config.DefaultPortConfig.UplinkTeamingPolicy.UplinkPortOrder.StandbyUplinkPort }).ConnectedEntity -join '|'

------------------------------

Blog: lucd.info  Twitter: @LucD22  Co-author PowerCLI Reference

------------------------------
