  • 1.  iscsi target from Red Hat to Esxi

    Posted Apr 17, 2019 08:00 PM

    Hello,

    I am doing a lab using vmware workstation v15. I have two guests, One is the esxi host (v.6.7.0) and the other guest is running RedHat Enterprise Linux 7.6.

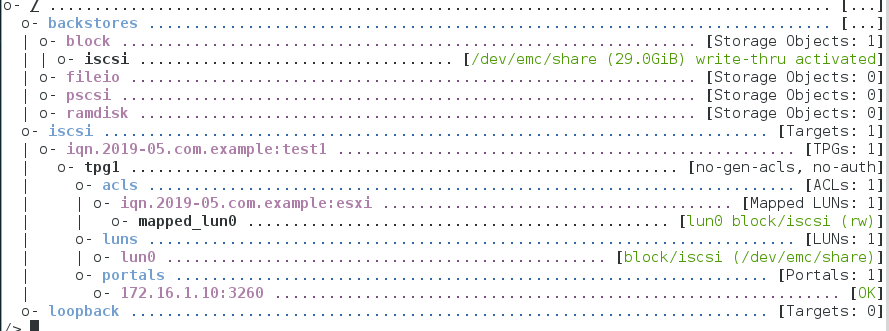

    The ip of the redhat guest is 172.16.1.10 and here is the output of targetcli. Firewall-cmd is enabled to accept traffic to port 3260

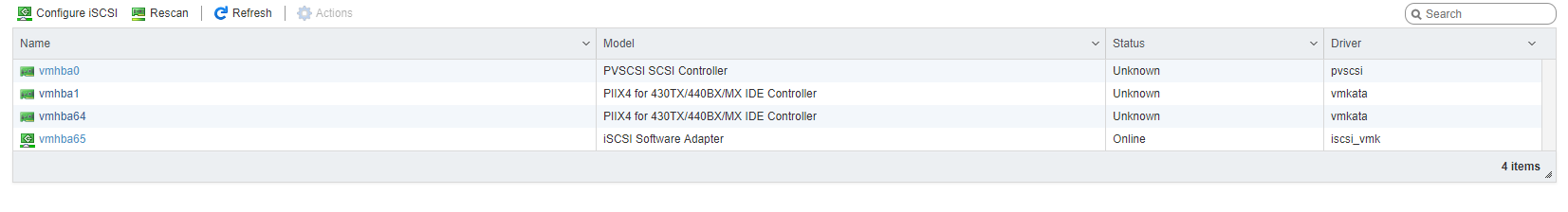

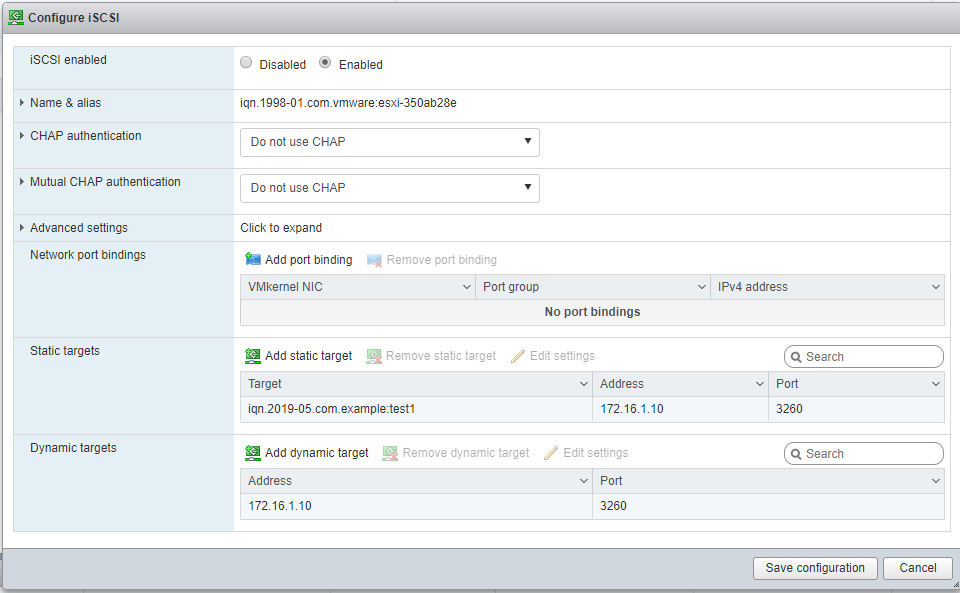

    And here is the configuration of my esxi

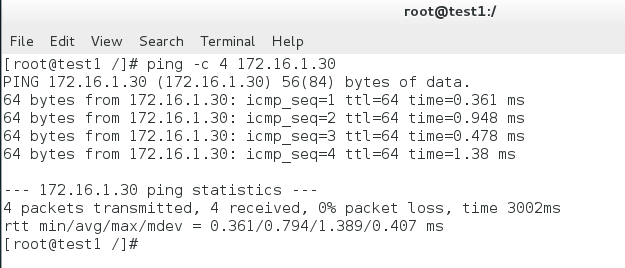

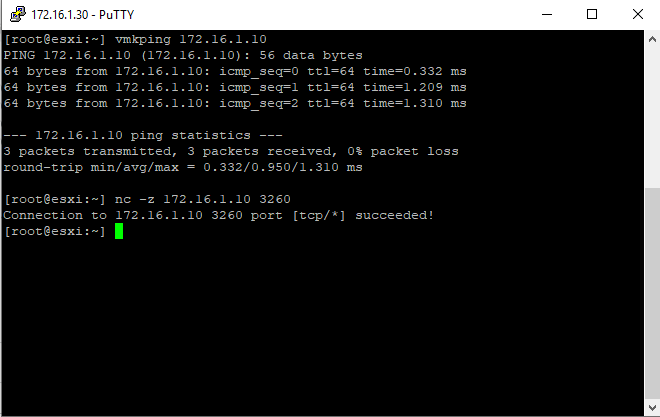

    as well there is a picture that it show there is a communication between my target (Rhel)  and Esxi Host

    please advise us how we can resolve this issue , since my iscsi adapter is online but i'm not able to see my iscsi storage device

    Thank you



  • 2.  RE: iscsi target from Red Hat to Esxi

    Posted Apr 18, 2019 02:27 PM

    Probably because you do not have anything added to Network port binings, the host does not know what interfaces and ip addresses to use for iscsi connections
