Customize aria service alert

[azuser]

I created a customized Service Discovery regEx like MySer.*. The area discovered the services, and now I want to set up an alert if a service goes down. How do I create an alert definition/symptom for these services?

[Allan Solomon Mejia]

Since your custom service is already being discovered successfully using the MySer.* regex, the next step is to create an alert based on the service object's availability/status, rather than on the regex itself.



In Aria Operations, I would approach it this way:



1. Go to Configure > Alerts > Symptom Definitions.
2. Create a new Metric Symptom and select the object type associated with the discovered/monitored service.
3. Select the service availability metric, typically System > Availability where available.
4. Configure the condition so the symptom becomes critical when availability is down. Aria Operations uses the convention 1 = available/up and 0 = unavailable/down. Broadcom documents this availability behavior for monitored objects.
5. Go to Configure > Alerts > Alert Definitions and create an alert such as: Custom MySer Service is Down
6. Add the symptom you created and configure the desired severity and wait/cancel cycles.
7. Finally, verify that both your custom Alert Definition and Symptom Definition are activated in the policy assigned to the service objects. A custom alert can be configured correctly but still not trigger if it isn't enabled in the active policy.



You may also want to use a wait cycle of 2–3 collection intervals so a brief service restart doesn't immediately generate an alert.



One important point: Service Discovery requires the custom service to be associated with a listening TCP/UDP port. Since your regex-based definition is already discovering the services, it sounds like you've satisfied that requirement.



If you open one of the discovered MySer.* service objects under Inventory and share the exact Object Type and the metrics shown under Metrics, I can suggest the exact symptom condition to use rather than guessing which availability metric your Aria Operations version exposes.

[azuser]

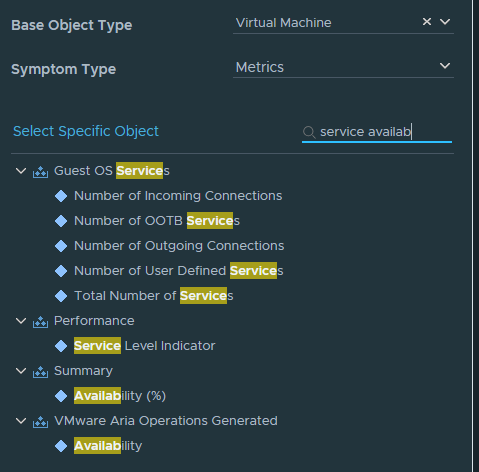

I found this in the Symptom Definition. It looks like there is a condition we can use when the service becomes unavailable? not specifically when the service is down.
