Very first steps

[Marc R8O2dGhl]

I'd like to get familar with Clarity PPM.

Therefor I worked through the learning path:
https://docs.broadcom.com/doc/exam-study-guide-proven-professional-exam-250-609

Now I'd like to get some experience on my own and installed an environment by:
Clarity PPM Installation

My installation ends up as in the documentation:

My main question: How can I activate / where to find the menu bars?
Do you know any 1st steps or project walkthrough videos or documentations, please?

Thx.

Rgds
Marc

[Suman Pramanik]

HI Marc

Welcome to Clarity, the menu are on the left  and the top are called modules which you can configure using blueprint. Here is the documentation on blueprint and you can also review the section Clarity: First Time Login Experience

[Marc R8O2dGhl]

Hello Suman,

thank yu for the support. But Ii seems, I'm looking at the very wrong location.!?

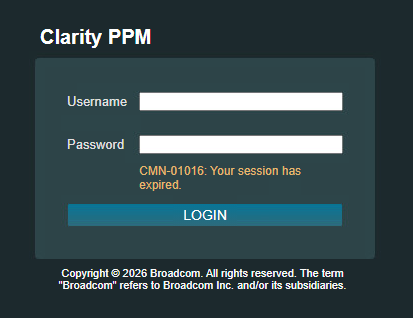

My logon mask:

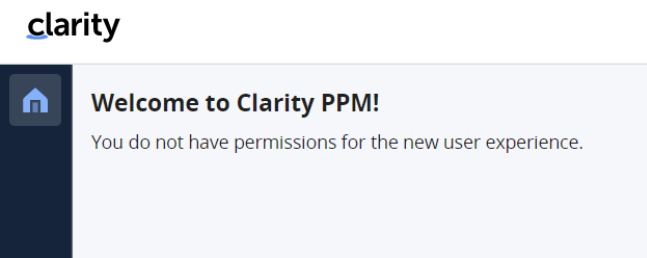

My page:

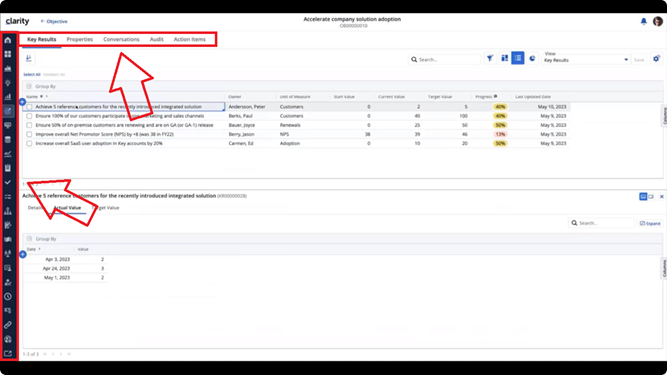

And all examples from the documentations:

[Suman Pramanik]

Hi Marc

Since you have logged into the Classic PPM, there are few configuration needed in order to navigate to Clarity MUX . Here are the list of things to be done

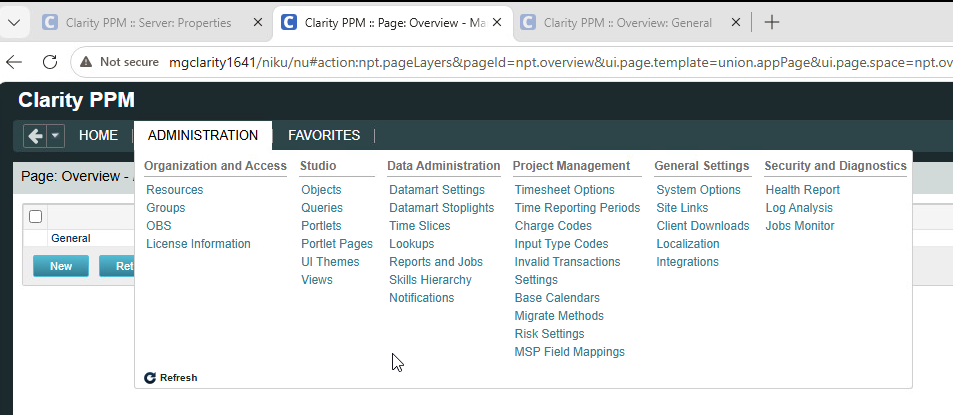

• Provide your user with all the rights by Navigating to Administration --> Organization and Access --> Resources
• Search for your resource and under sub menu Resource Access Rights --> Global and grant all

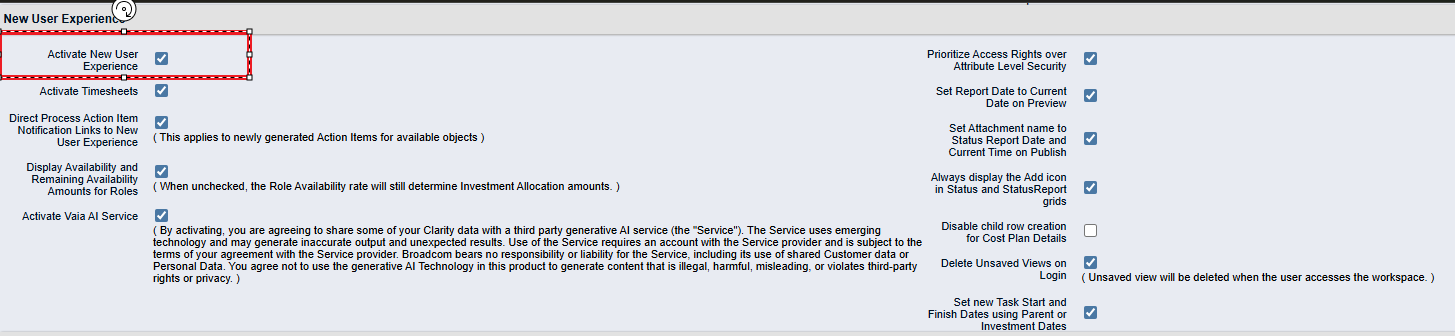

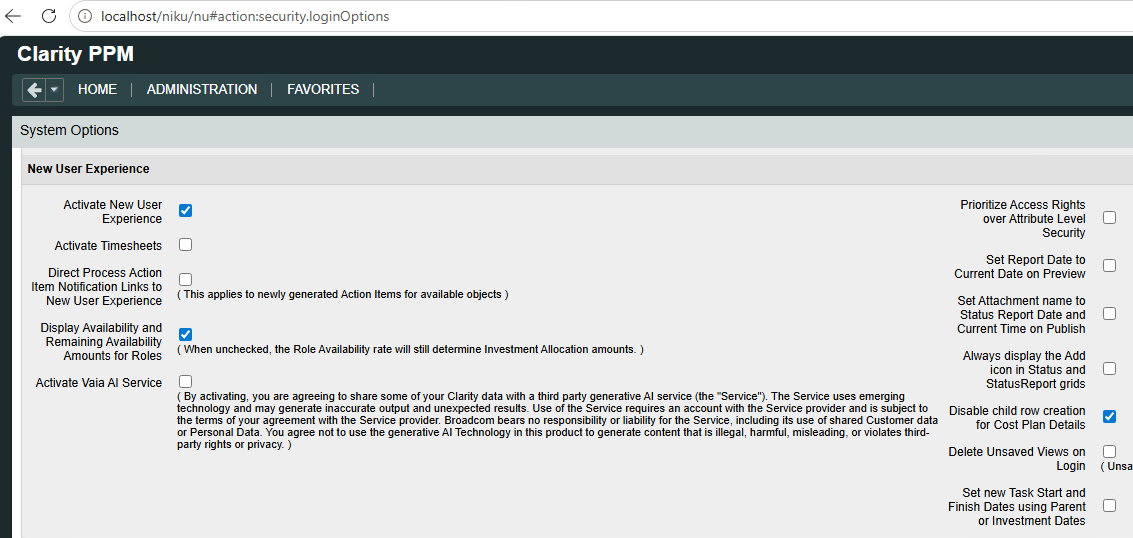

• Now navigate to Administration --> System Options --> New User Experience --> Check Activate New User Experience

Above information is also documented under section activate Modern UX

Also there are two trainings which can help you and you can register using this link

• Clarity 101
• Get Started with Clarity

Let me know if you need any additional information

[Marc R8O2dGhl]

I'm right before installing all from scratch again...

-------------

D:\admin content csk

Current product version: 16.4.1.1278

The minimum product version(s)
that are supported: 16.4.1

Validating the current product version against
the minimum supported version: 16.4.1

The product version has been validated as supported

Installation properties for CA PPM Accelerator: Program Management Office
ID: csk
reports.apply=false
package.addin.release=16.4.1
package.addin.version=16.4.1.0001
force=false
verifyTSVReferenceAttributes=false
Unable to connect to the Data Warehouse
---------------------------------------------------------------------------------------------------------------------
Data Warehouse schema does not exist. Add-ins which are dependent on the Data Warehouse schema will not be installed.
---------------------------------------------------------------------------------------------------------------------
Failed to install content pack. ID: csk: Exiting the installation.
Failed to install content pack. ID: csk: Exiting the installation.
Error occurred: D:\Clarity\PPM\META-INF\content\xog\csk\install.xml:617: Exiting the installation.
Check admin.log or use -verbose for more information.

-------------

And as I try to installJaspersoft, I get:

D:\admin content csk

Current product version: 16.4.1.1278

The minimum product version(s)
that are supported: 16.4.1

Validating the current product version against
the minimum supported version: 16.4.1

The product version has been validated as supported

Installation properties for CA PPM Accelerator: Program Management Office
ID: csk
reports.apply=false
package.addin.release=16.4.1
package.addin.version=16.4.1.0001
force=false
verifyTSVReferenceAttributes=false
Unable to connect to the Data Warehouse
---------------------------------------------------------------------------------------------------------------------
Data Warehouse schema does not exist. Add-ins which are dependent on the Data Warehouse schema will not be installed.
---------------------------------------------------------------------------------------------------------------------
Failed to install content pack. ID: csk: Exiting the installation.
Failed to install content pack. ID: csk: Exiting the installation.
Error occurred: D:\Clarity\PPM\META-INF\content\xog\csk\install.xml:617: Exiting the installation.
Check admin.log or use -verbose for more information.

While the EXE is defenitely there.



[Suman Pramanik]

Clarity has two database one is transactional and another one is Datawarehouse, in order to install the PMO accelerator you will need to ensure you import the Datawarehouse template schema we provide, configure the same in CSA and then install the PMO accelerator addin.

[Marc R8O2dGhl]

Do you know any kind of documentation or walkthrough for installing the Datawarehouse, please?

[Suman Pramanik]

Review the installation documentation here

[Marc R8O2dGhl]

I reinstalled all the System
granted all possible user rights

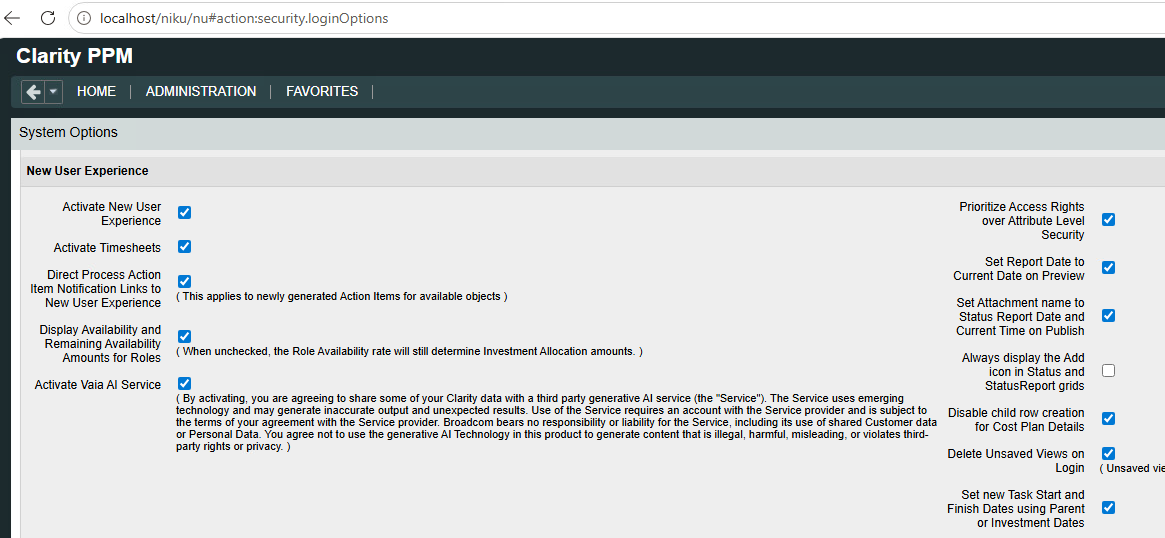

sat/checked the new user experience


or

stoped the Services
cleared the browser Cache
restarted the Services
went back to http://localhost/niku/

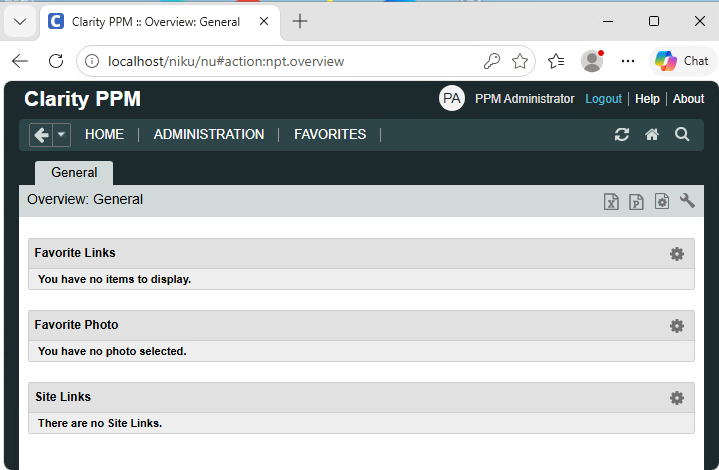

..and everything Looks as bebore. 😢

[Suman Pramanik]

Now you will need to navigate to /PM instead of /niku to see the MUX and also the necessary rights.

[Marc R8O2dGhl]

It seems to work fine, now.

Thank you very much for the support!

Is there any way to import a demo project, to populate my test environment, please?

Thx.

[Suman Pramanik]

Glad to know, we provide a demo dataset just like you installed PMO accelerator the command is below

 admin content-demo csk

Documentation for that is available here
