Idea Details

ADA Performance for Capacity Planning and Management Views

Last activity 28 days ago
jonje09's profile image
09-26-2016 12:29 PM

Today, we can provide the Average metrics for a selectable timeframe including last 30 days (see screenshots 1 and 2 below),this gives customers the visibility of where they really should focus their efforts based on historical performance per data center for a server, network, or application.



The challenge is there is no way to show historical month over month performance which is useful for long term capacity planning at a management or a 95th/90th engineer level.



The request is that we provide:

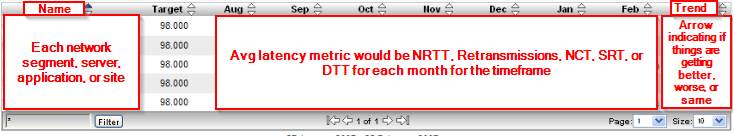

1) A CA PC/ADA Master Console/UIM Top N multi-month view for management where:

-Name would be either the network segment, server, or site @ MasterConsole if CA PC drive

-Metric would be NRTT, Retransmissions, NCT, SRT, or DTT

-Trend arrow indicating if over the timeframe performance is getting better, worse, or staying the same

-Would be nice to be able to apply this to all, a CA PC Group or site, a UIM USM Group, or a ADA Master Console for filtering purposes

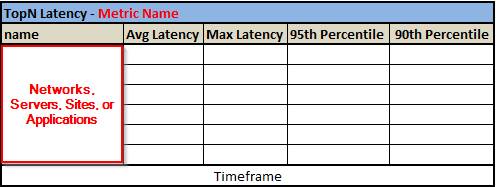

2) A CA PC/ADA Master Console/UIM Top N chart Avg, 95th, 90th percentile Engineer view where:

-Name would be either the network segment, server, or site @ MasterConsole if CA PC drive

-Metric would be NRTT, Retransmissions, NCT, SRT, or DTT

-Would be nice to be able to apply this to all, a CA PC Group or site, a UIM USM Group, or a ADA Master Console for filtering purposes

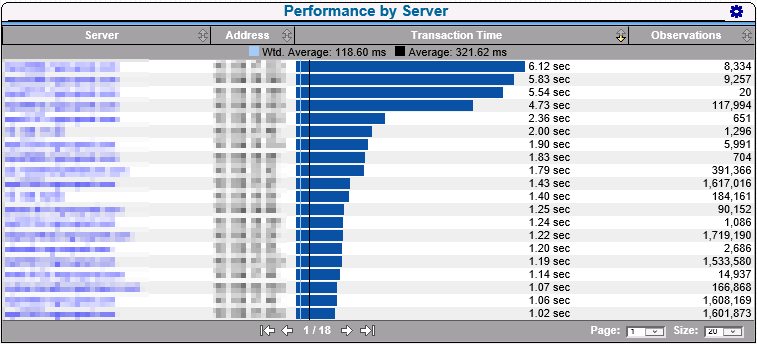

Screenshot 1 (Engineering Tab, Timeframe = last month):

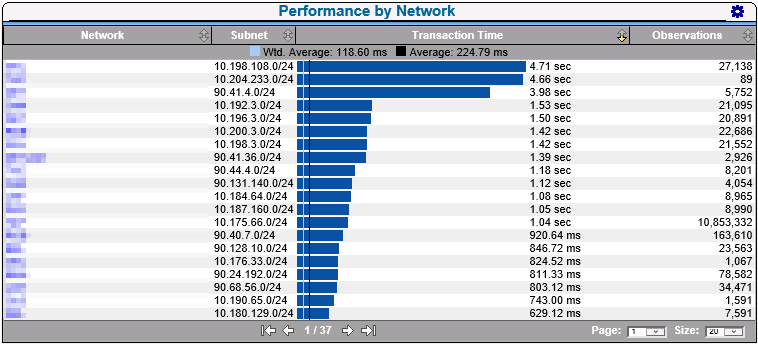

Screenshot 2 (Engineering Tab, Timeframe = last month):
