DX Infrastructure Management

Tech Tip: UIM integration with NFA Error: HTTP request to NFA status line: HTTP/1.1 404 Not Found

08-03-2015 12:19 PM

Summary

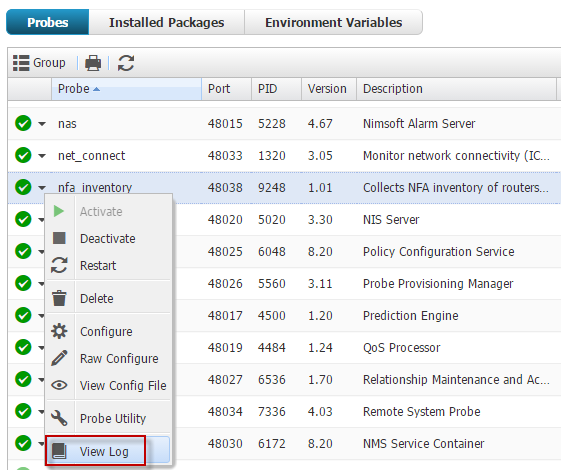

When attempting to integration UIM 8.2 with the NFA 9.3.1 using the nfa_inventory probe, you may see the error below in the nfa_inventory probe log:


[Connection tester - 0, nfa_inventory] **** NFA API URI: http://x.x.x.x:80/ReporterDataSource/InventoryWS.svc/GetNFAUrls

[Connection tester - 0, nfa_inventory] HTTP request to NFA status line: HTTP/1.1 404 Not Found

[Connection tester - 0, nfa_inventory] Response from HTTP request to NFA was: 404

[Connection tester - 0, nfa_inventory] Exception occurred while attempting HTTP request to NFA at x.x.x.x

[Connection tester - 0, nfa_inventory] org.apache.http.client.HttpResponseException: Response from API was not 200 OK. The status code was: 404

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeHttpRequest(RestfulClient.java:116)

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeGet(RestfulClient.java:84)

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeGet(RestfulClient.java:74)

  at com.nimsoft.probe.network.nfa_inventory.InventoryCollector.getNfaUrlsFromNfa(InventoryCollector.java:166)

  at com.nimsoft.probe.network.nfa_inventory.Inventory.getNfaDrillinUrls(Inventory.java:56)

  at com.nimsoft.probe.network.nfa_inventory.InventoryProbe.testResource(InventoryProbe.java:321)

  at com.nimsoft.probe.framework.genprobe.sdk.GenSession.testConnection(GenSession.java:131)

  at com.nimsoft.vm.BaseProbe$2.run(BaseProbe.java:203)

  at java.util.concurrent.Executors$RunnableAdapter.call(Unknown Source)

  at java.util.concurrent.FutureTask.run(Unknown Source)

  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)

  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)

  at java.lang.Thread.run(Unknown Source)





[Connection tester - 0, nfa_inventory] Failed to connect to x.x.x.x

[Connection tester - 0, nfa_inventory] java.lang.IllegalStateException: Failed to communicate with the NFA console.

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeHttpRequest(RestfulClient.java:124)

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeGet(RestfulClient.java:84)

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeGet(RestfulClient.java:74)

  at com.nimsoft.probe.network.nfa_inventory.InventoryCollector.getNfaUrlsFromNfa(InventoryCollector.java:166)

  at com.nimsoft.probe.network.nfa_inventory.Inventory.getNfaDrillinUrls(Inventory.java:56)

  at com.nimsoft.probe.network.nfa_inventory.InventoryProbe.testResource(InventoryProbe.java:321)

  at com.nimsoft.probe.framework.genprobe.sdk.GenSession.testConnection(GenSession.java:131)

  at com.nimsoft.vm.BaseProbe$2.run(BaseProbe.java:203)

  at java.util.concurrent.Executors$RunnableAdapter.call(Unknown Source)

  at java.util.concurrent.FutureTask.run(Unknown Source)

  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)

  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)

  at java.lang.Thread.run(Unknown Source)

Caused by: org.apache.http.client.HttpResponseException: Response from API was not 200 OK. The status code was: 404

  at com.nimsoft.probe.network.nfa_inventory.util.RestfulClient.executeHttpRequest(RestfulClient.java:116)

  ... 12 more



Solution

You must install WCF Activation under the .NET Framework 3.5.1 features in Server Manager.

1. Open Server Manger - Start->Administrative Tools->Server Manager

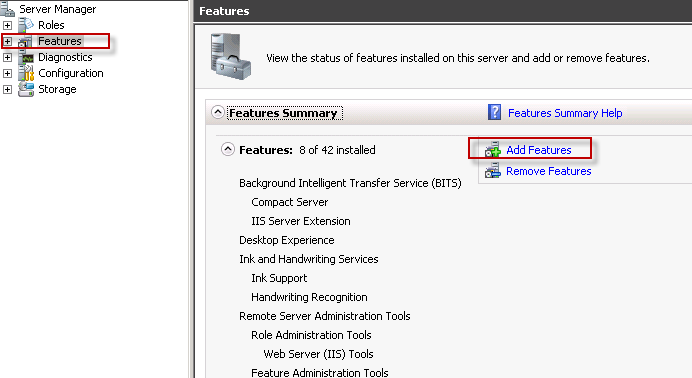

2. Click on Features then Add Features

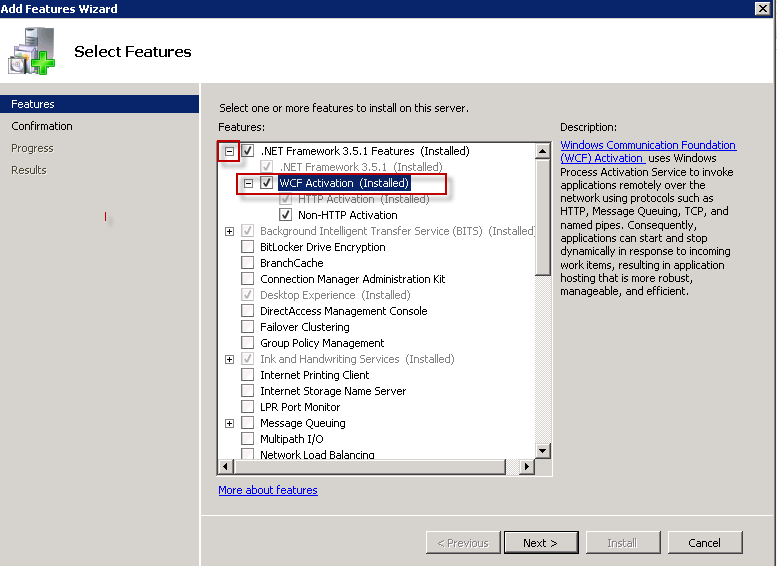

3. Expand .NET Framework 3.5.1 Features and check the box for "WCF Activation"




4. Click Next and then Install.



5. Once installed recycle the nfa_inventory probe in UIM and check to see that the error no longer appears.


Statistics
0 Favorited
1 Views
0 Files
0 Shares
0 Downloads

Tags and Keywords

Comments

11-18-2015 01:56 PM

Pictures should be visible now, let me know if there is still an issue.

11-18-2015 01:53 PM

Glad to hear this helped you out, I will get the image issues corrected.

11-18-2015 01:34 PM

Just a note that those links to the images don't work.  Was still able to fix my problem though.  Many thanks!
