TDM export API execution through Javelin

  • 1.  TDM export API execution through Javelin

    Posted Apr 01, 2021 02:28 PM

    Hi,

    I want to execute TDM EXPORT [TDMModelService] Api through Javelin.

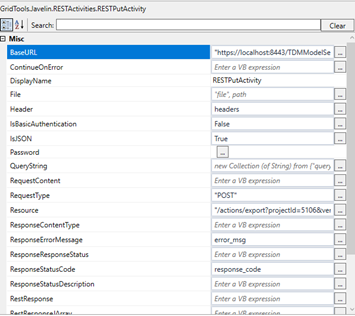

    This Is how I'm executing the API after creating a authentication token, that is being passed into headers.

    baseUrl: https://localhost:8443/TDMModelService/api/ca/v1/objects/33960

    resource: "/actions/export?projectId=5106&versionId=5107"

    While executing this API through Javelin, I'm getting this error. As per my understanding it is because of resource in that '&' symbol is creating error while parsing.

    Can you please suggest something for this, and how to export the JSON files successfully using Javelin?



  • 2.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 01, 2021 02:32 PM

    What version of TDM are you using and what version of Javelin?

    I would suggest you try the latest 64-bit version of Javelin and see if it helps.

    You can download it at the below link
    https://support.broadcom.com/external/content/release-announcements/Test-Data-Manager-TDM-Patches/16649



    ------------------------------
    Gene Howard
    Principal Support Engineer
    Broadcom
    ------------------------------



  • 3.  RE: TDM export API execution through Javelin

    Posted Apr 01, 2021 02:50 PM
    For Javelin I'm  using Javelin v4.9.100 and TDM 4.9.1, I believe they are latest one you are talking about as per the url.


  • 4.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 01, 2021 02:52 PM
    No, the latest Javelin version is 4.9.155
    https://ftp.broadcom.com/user/downloads/priv/cbtmaint/zahab01/TDM/Javelin/Javelin-4.9.155.0.zip

    ------------------------------
    Gene Howard
    Principal Support Engineer
    Broadcom
    ------------------------------



  • 5.  RE: TDM export API execution through Javelin

    Posted Apr 06, 2021 05:38 AM
    Hi Gene,

    I tried upgrading to the specified Javelin version 4.9.155.0, but still same error. Please can you suggest.




  • 6.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 06, 2021 05:50 AM
    Hello all. I believe the problem is that javelin has not been set up with the correct parameters to deal with the returning data type, eg a zip file.  When tracing the TDM backend, the rest api appears to be working.  The final part back to javelin is not.   I dont have a solution to offer as I dont know what parameters/values need to be specified.  Still investigating



  • 7.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 07, 2021 06:47 AM
    Mahesh I recommend that you open a support ticket for this problem.



  • 8.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 07, 2021 11:29 AM
    Kran and Mahesh.  The problem is that the REST API is not handling the zip file that is being returned.  It is expecting json or an array.  A colleague found an optional value that you can add to the API, async=true

    http://localhost:8080/TDMModelService/api/ca/v1/objects/793/actions/exportprojectId=2347&versionId=2348&async=true

    Please give it a try





  • 9.  RE: TDM export API execution through Javelin

    Posted Apr 09, 2021 07:24 AM
    Edited by Karan Aggarwal Apr 09, 2021 07:29 AM


  • 10.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 07, 2021 01:50 PM
    Test



  • 11.  RE: TDM export API execution through Javelin

    Broadcom Employee
    Posted Apr 14, 2021 06:19 PM
    Hi Mahesh,

    As Billy said, Rest API works fine but Javelin's RestPutActivity function does not have ability to download files which are returned in response body. It requires enhancement on that.

    However, I would suggest you to use "async" option when calling that API which will help you to export and download the files asynchronously.

    Give a try with adding "asycn=true" in the end.

    i.e.

    /TDMModelService/api/ca/v1/objects/33960/actions/export?projectId=5106&versionId=5107&async=true

    That should save the files under

    C:\ProgramData\CA\CA Test Data Manager Portal\objects\projects_5106\versions_5107\****

    Hope this helps

    Cihan



  • 12.  RE: TDM export API execution through Javelin

    Posted Apr 15, 2021 11:20 AM
    Hi Billy, Cihan,

    Thanks for the feedback. I could see the file exported to the specified server path with the suggested approach.

    Thanks
