Active MQ error

Jump to Best Answer
  • 1.  Active MQ error

    Posted 12-27-2017 10:38 PM
      |   view attached

    Hi all,


    we have log error active mq ( attached) and impacted to our services dadaemon Data Aggregator, and also CAPC  2.5 unable to contact to DA.



    Any suggest for this case?


    activemq.log.zip   3 KB 1 version

  • 2.  Re: Active MQ error

    Broadcom Employee
    Posted 12-28-2017 12:04 AM

    I also experienced the same problem.

    Attach much more memory as following


    Modify the External ActiveMQ Memory Limit



    Restart DA/ActiveMQ


  • 3.  Re: Active MQ error

    Posted 12-28-2017 02:12 AM

    Here our configurations on Data Aggregator :

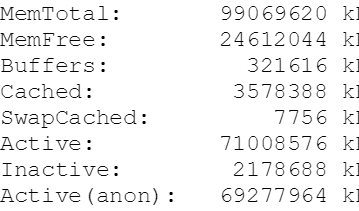

    • System Memory :

    • On /opt/IMDataAggregator/broker/apache-activemq-5.5.1d/bin/activemq :


    ACTIVEMQ_OPTS_MEMORY=" -Xms9675M -Xmx19349M -Xmn4837M -server -XX:SurvivorRatio=6 -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:TargetSurvivorRatio=90 -XX:InitialTenuringThreshold=16 -XX:MaxTenuringThreshold=31 -XX:+ScavengeBeforeFullGC -XX:+ExplicitGCInvokesConcurrent -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -XX:+CMSClassUnloadingEnabled

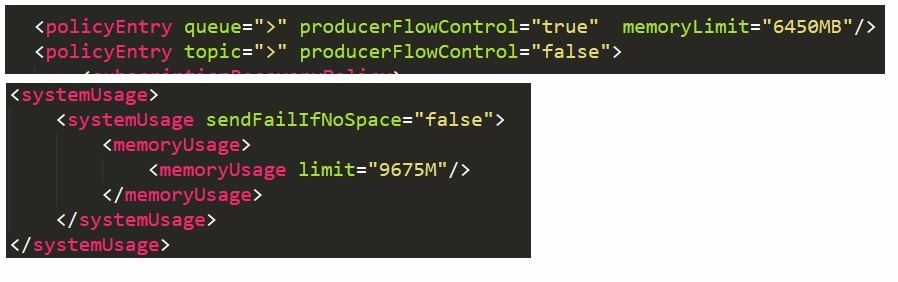

    • On /opt/IMDataAggregator/broker/apache-activemq-5.5.1d/conf/activemq.xml :

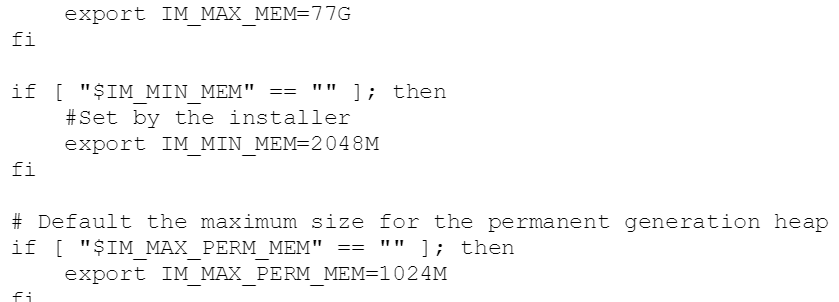

    • On /opt/IMDataAggregator/apache-karaf-2.3.0/bin/setenv :

    Just info, we have 3 Collector. There are missing configurations activemq or data aggregator memory in our machine?



  • 4.  Re: Active MQ error

    Posted 01-01-2018 11:41 PM

    Hallo Naruhiro_Yoneshige, have suggest for this case? like above Irsan already share existing active MQ configuration.

  • 5.  Re: Active MQ error

    Broadcom Employee
    Posted 01-04-2018 07:29 PM

    Hi Eksi,


    Yes Irsan is correct.

    To say one word of this problem, the queue becomes full beyond the ActiveMQ capacity.

    So I resolved following three actions:


    1, Allocate much more memory to ActiveMQ.

    2, Allocate much more memory to Data Aggregator

    3, Reduce the managed device by filtering or deleting


    Thanks Regards, Naruhiro

  • 6.  Re: Active MQ error

    Broadcom Employee
    Posted 01-04-2018 12:49 PM

    Hello Eksi - I see your on version 2.5 of CAPM - this release reached its end of life as of June 30, 2017. I would suggest upgrading as soon as possible to take advantage of improvements made in the many releases since 2.5, CAPM 3.5 should be available to you if your current on maintenance.


    Link to EOL letter:


    Announcement for CA Performance Management Releases 2.4.0, 2.4.1, and 2.5.0 All Languages

  • 7.  Re: Active MQ error
    Best Answer

    Broadcom Employee
    Posted 01-08-2018 12:48 PM

    I would also add there is a new version of activemq in the current version of the product.  Here is some documentation for planning the upgrade to 3.5




    I am going to close this thread as getting to a supported version of the product will certainly improve stability

  • 8.  Re: Active MQ error

    Posted 01-19-2018 03:48 AM

    hi @joseph, can we upgrade directly to 3.5 from 2.5? Or step by step from 2.6, 2.7 etc? let me know soon

  • 9.  Re: Active MQ error

    Broadcom Employee
    Posted 01-19-2018 09:29 AM



    Unfortunately it isn't a direct update from r2.5->r3.5. With your current release you would need to perform two consecutive updates to get to r3.5.


    First the server needs to be updated from r2.5 to r3.0. Then from r3.0 you go direct to the new r3.5 release.


    This section of the documentation is where you'll want to focus when planning the upgrade.


    Plan the Upgrade or Migration - CA Performance Management - 3.5 - CA Technologies Documentation
