Jasperserver -- spectrum_ds data source tables

  • 1.  Jasperserver -- spectrum_ds data source tables

    Posted 01-14-2017 08:19 PM

    I recently update my #spectrum and #jasperserver to 10.2 and 6.3, and when I was exploring the Jasperserver I had the dificulty of creating a new customized data domain, because I didn't knew the the OC reporting tables relationship.

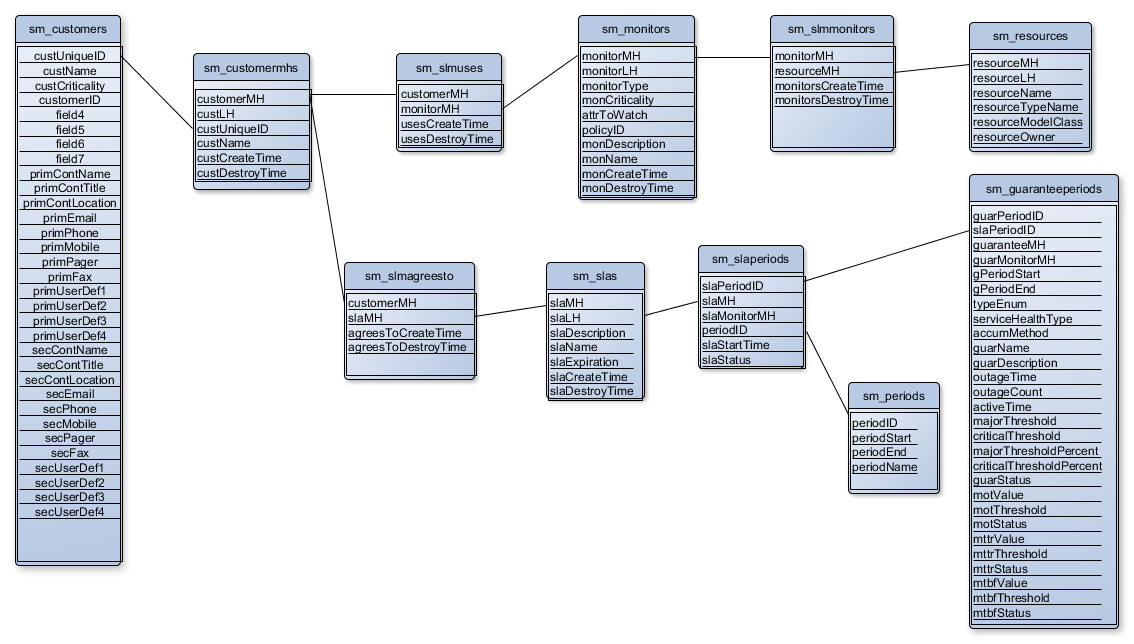

    So I created that diagram by making sql querys to OC mysql database,  that I hope to be usefull to other users, and if some one have any opinion to improve it please comment in order to create a better diagram,
