Upgrade of the oi_connector probe from 2.03 to 2.11 FAILS

[Pat O'Connor]

Hello,

we have recently upgraded our apm_bridge probe from 2.03 to 2.11 with no issues, we have uim up to 23.4.6.

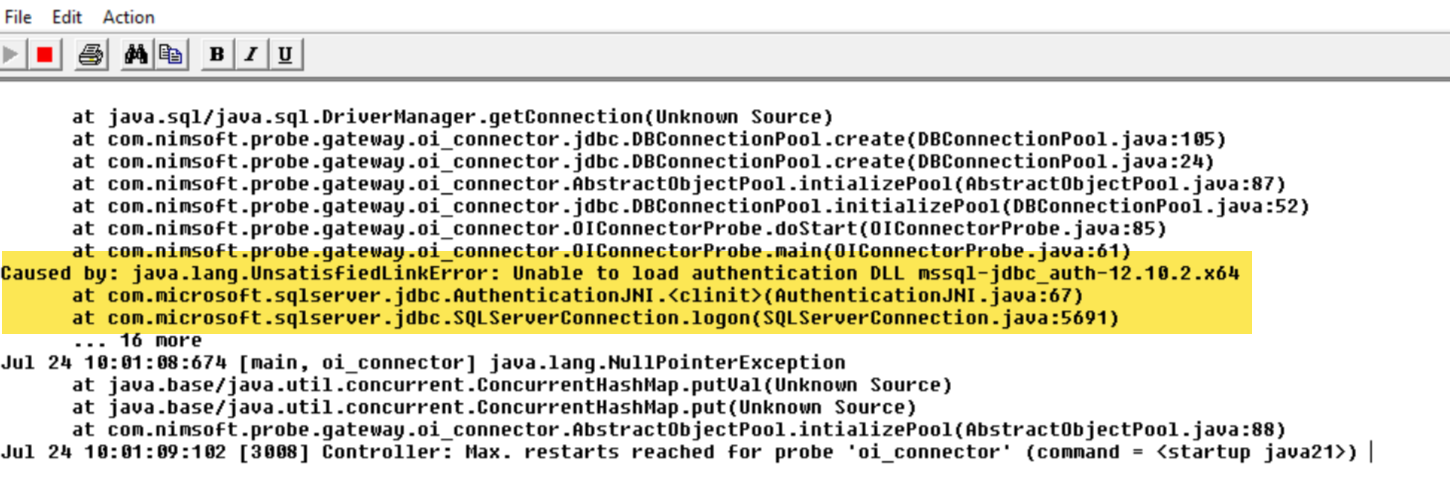

when we attempted to upgrade the oi_connector probe from 2.03 to 2.11 it fails with the error of:

Unable to load authentication DLL mssql-jdbc_auth-12.10.2.x64

Has anyone else experienced this, we have to roll back to 2.03 for the oi_connector

Regards,

Patrick

------------------------------
Pat O'Connor
Performance Team
DCSS
[JobTitle]
[CompanyName]
[City] [State]
------------------------------

[Stephen Danseglio]

Hi Pat,

Is your oi_connector's data_engine_address parameter configured with the correct NimBUS address for the data_engine?

Was the authentication type for the data_engine recently changed to Microsoft Windows Authentication?

This error usually occurs because a Java application is attempting to connect to Microsoft SQL Server using Windows Integrated Authentication (integratedSecurity=true), but the JVM can't find the required native 64-bit Windows authentication lib (mssql-jdbc_auth-12.10.2.x64.dll) in its search path.

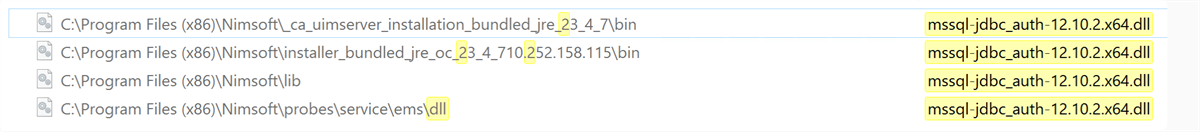

Do you see these files on your Primary hub?

Steve

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Jason Allen]

It may help to download and deploy the latest versions of the java_jre and java_jre21 packages.

[Pat O'Connor]

Hi Steve,

I can not see the 4 items highlighted in Yellow…. Any chance you can make it bigger for me to verify?

Thank you for your time…

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Stephen Danseglio]

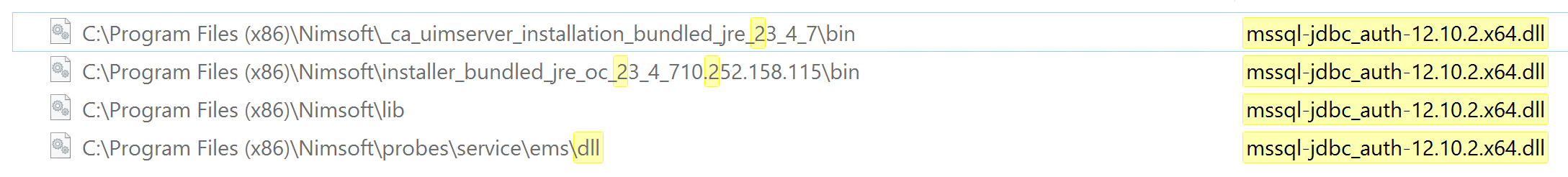

is this better?

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Pat O'Connor]

Steven,

Hello… yes, was able to expand it…

I checked your four highlighted location on our UIM Hub.

Yours shows: mssql-jdbc_auth-12.10.2.x64.dll

Mine shows: mssql-jdbc_auth-12.10.0.x64.dll



[cid:image001.png@01DD1DAB.D36EA5C0]

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Stephen Danseglio]

Pat,

Did you already upgrade the UIMAPI on the OC robot to 23.4.6? Sometimes that gets missed.

DX UIM 23.4 CU6 requires uimapi v23.4.6. The error may be a bit misleading.

Upgrade it via drag and drop and cold start oi_connector again and share the results.

Steve

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Pat O'Connor]

Hi Steve,

Yes, we have the uimapi 23.4.6 on the OC.

After reviewing with team members, they will leave the oi connector at 2.03 until we upgrade to either cu7 or cu8…

Hopefully, cu7 or cu8 has that specific .dll file….


THANK YOU For your time and sharing your knowledge with me….

Pat

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Pat O'Connor]

Steve,

Lastly, just curious, I do not see a “uimapi’ probe via IM for the OC, however, I do see uimapi files under the wasp directory from 3/2026

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Stephen Danseglio]

Hi Pat,

Please keep this KB Article and guide handy as well to guide you through the oi_connector and apm_bridge installs.

Has the certificate.pem file been copied from the Primary hub over to the dedicated robot where the oi_connector and apm_bridge are running?

In any case, check all prereqs and best practices in my guide below.

DX Operational Observability-Quick Start Integration Guide for UIM

Best Regards,
Steve

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Pat O'Connor]

Thank You Steve for this KB article…. And your time…

Have a good afternoon!

Pat

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Stephen Danseglio]

Hi Pat,

Did you open a support case? If not please do and ask for it to be assigned to me.

This needs to be be fixed in the code and engineering is already working on it.

There were vulnerability fixes addressed and as part of it, the mssql java driver was updated from the 6.2.2.jre8 driver to the 12.10.2.jre11 driver. The 12.10.2.jre11 refers to mssql-jdbc_auth-2.10.2.x64.dll and the .pkg contains the 'old sqljdbc_auth.dll' instead of mssql-jdbc_auth-2.10.2.x64.dll.

We have a potential workaround for you in the meantime that we can share but I will test it first.

Steve

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Christopher Pearson]

It looks like the version that you have is consistent with CU6, but the probe was updated with MSSQL JDBC Driver v12.10.2.jre11 with 2.10. Probably best to open a ticket with support.

I have CU8 installed, and had to copy mssql-jdbc_auth-12.10.2.x64.dll (from one of the directories that Steve listed previous) to my: C:\Program Files (x86)\Nimsoft\jre21\jre21.0.11_10\bin

I do not think that this process will work for you as the probe is explicitly asking for mssql-jdbc_auth-12.10.2.x64.dll, which was included as part of the CU7 update.

[Pat O'Connor]

Christopher,

Hello,

Thank you for the information, I will pass the information along to my team members and most likely leave the oi_connector at 2.03 until we upgrade to either cu7 or cu8.

I appreciate your knowledge share….

Pat

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Stephen Danseglio]

Hi Pat,

uimapi (UIM Web Services API) is a package in the hub's local archive.

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Pat O'Connor]

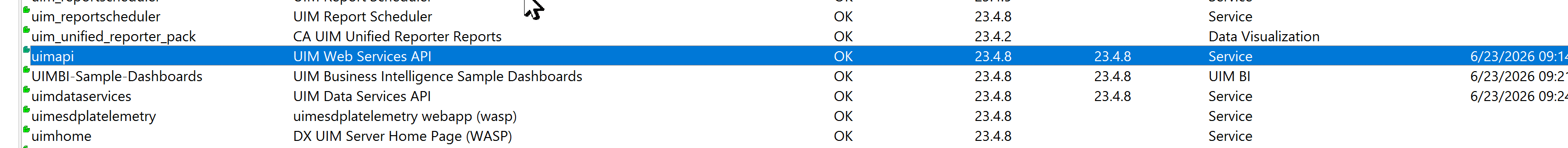

Thanks Steve for the clarification….uimapi is in the local archive on our hub, 23.4.6….

[cid:image001.png@01DD1DBC.A3198A00]

Regards,
Pat O’Connor
Batch Operations, Performance and Planning
[phone]
[California Child Support Services Logo]<https: childsupport.ca.gov>

[Stephen Danseglio]

My pleasure Pat!

Steve

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Stephen Danseglio]

Hi Pat,

We can more effectively track and manage this issue if you open a support case. We know the underlying cause and we have a workaround for the issue. We would like to help you implement the workaround.

In the meantime, engineering will work on a fix.

Best Regards,
Steve

------------------------------
Steve Danseglio
Senior Principal Support Engineer (Technical Support Engineer 5)
Broadcom Software-IMS Division
UIM Certified Expert
KCSv6 Practices Certified
Certified Customer Success Manager (CCSM) Level 1
Generative AI Leader (Google Cloud)
------------------------------

[Pat O'Connor]

Steve,

Good Afternoon,

After reviewing with my team members, they will wait for the next cummulative update to proceed with the upgrade of the oi_connector probe, we are at 2.03. thank you for all of your information...Regards, Pat

------------------------------
