  • 1.  AEAT9922 repetitive readings

    Posted 29 days ago

    Hi

    while reading the AEAT9922 every 250us sometimes I am getting many exactly the same readings (between few to thousands) while magnet is moving.

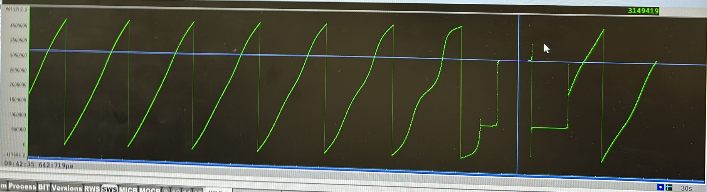

    this is how it looks on a graph:

    the scope also show that the output values of the IC are the same while the Ready bit is OK.

    why is it happening? what can cause the component to output same data for many consecutive readings?

    Regards,





    -------------------------------------------


  • 2.  RE: AEAT9922 repetitive readings

    Community Manager
    Posted 29 days ago

    @or samoocha  - we do not have a support community for AEAT9922 on the Broadcom Community.   Please reach out to support or check https://www.broadcom.com/products/motion-control-encoders/accessories/evaluation-kit/heds-9922prgevb  for specific docs.   Thanks  @Jason McClellan, Platform Admin



    ------------------------------
    Thank you
    Jason
    Broadcom Community Platform Admin, IT
    ------------------------------

    Original Message
