CA Service Desk - Create a new table - out-of-box

07-10-2015 04:01 PM

Publish Schema Modifications

What you need know? (Web Screen Painter Help Release 12.9.00)





ImagesDescription
CASDM_20150710_Publish_01.jpgOpen a WSP - Web Screen Painter


   OR


Open Schema Designer, you have two options to open, you can do a click on icon or you can do it on menu, Tools... Schema Designer

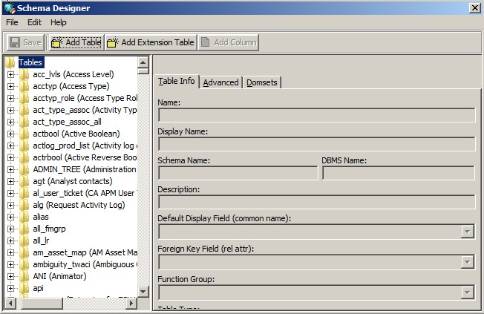

CASDM_20150710_Publish_05.jpgClick on Add Table button
CASDM_20150710_Publish_06.jpgClick on Add Table button

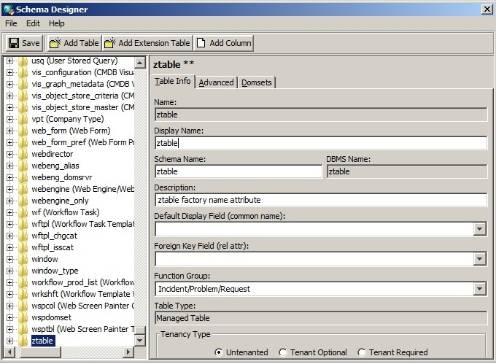

CASDM_20150710_Publish_07.jpgtype a New table name


type Table info



Add the new reference table to the appropriate Function Group (e.g. 'Change Order Reference')

CASDM_20150710_Publish_09.jpgClick on Add New Column icon

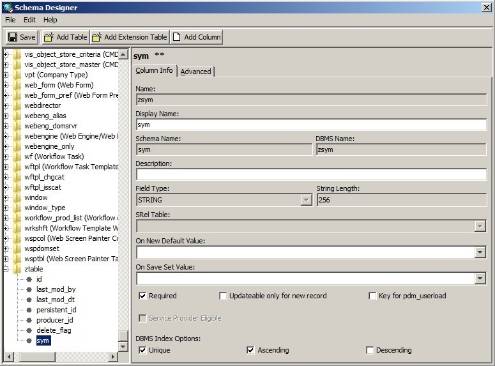

CASDM_20150710_Publish_10.jpgtype a new column name


flag Required

flag as unique;


Add how many fields you'll need.



sym and delete_flag is a common fields to identify our tables




check 'Required'


set a default value of '0'

CASDM_20150710_Publish_14.jpgClick on Save button

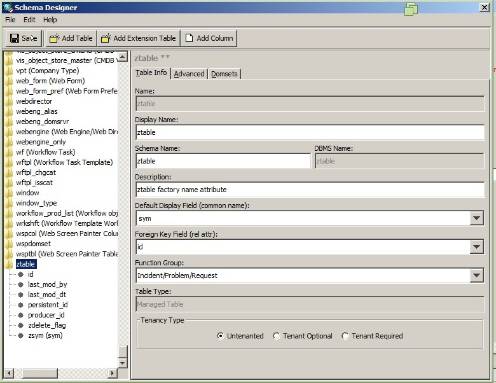

set 'sym' as the Default Display Field;

CASDM_20150710_Publish_15.jpgClick on Save and Publish menu

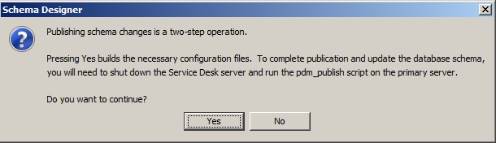

CASDM_20150710_Publish_16.jpgClick Yes

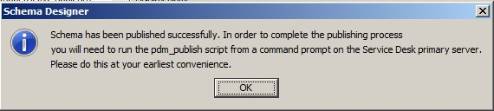

CASDM_20150710_Publish_17.jpgClick ok

Open a Command Prompt

Run pdm_halt command, it´ll stopped CA Service Desk Services

CASDM_20150710_Publish_20.jpgrun pdm_status for a check, CA Service Desk services need be stopped to publish

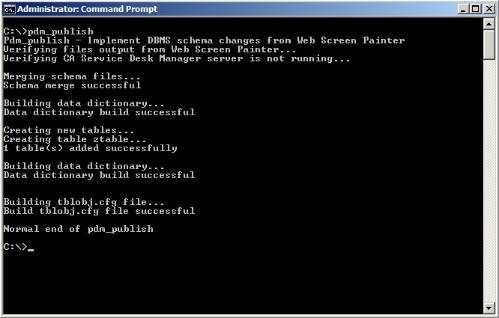

CASDM_20150710_Publish_21.jpgRun pdm_publish command

Start CA Service Desk services -



net start pdm_daemon_manager



Check SDM Log files and looking for errors $NX_ROOT\log normally: C:\Program Files (x86)\CA\Service Desk Manager\log

By: Kyle_R



CASDM_20150710_Publish_24.jpgCheck your new table on Schema Designer





Do you need more information about custom tables/columns cdtj wrote more improving this doc  How to create custom BREL/QREL/LREL attribute




References:

CA CMDB Technical Reference Guide 12.5

Web Screen Painter Help Release 12.9.00

     To add new tables to the database

     To add new columns

     Test new Schema

      Publish Schema Modifications

CA Service Desk Manager | CA Service Management Cookbook@





Was this information helpful? left a comment.

Statistics
0 Favorited
4 Views
0 Files
0 Shares
0 Downloads

Tags and Keywords

Comments

09-17-2015 10:27 AM

Hi Raghu,



    Thank You, sharing knowledge, we can make the difference.



Regards

09-16-2015 10:51 PM

Great document Tiago, appreciate you sharing this with the community !



_R

09-10-2015 03:15 PM

HI Kyle_R,



  Really, it's a very important step: looking for errors



Thank You

08-07-2015 12:34 AM

Thanks Tiago, another great article.



You don't include a reference to (a) restarting the Service Desk Manager service after this and (b) checking the logs at startup the first time for customisation errors.



Kind of obvious, but you've spelled everything else out, so I thought I'd throw that in.



Thanks, Kyle_R.

07-22-2015 05:27 PM

Hi, diogo.nobrega,



  Thank You, one hand washes the other..

07-22-2015 05:10 PM

Nice article! I think this quick guide will help a lot for who is looking for creating new tables.

07-22-2015 09:56 AM

Hi Gutis,



   You spoke about this procedure? CA Service Desk - Create a new Menu Tree - New node - out-of-box, i wrote following your last comment, please look it.



Thank You

07-14-2015 10:38 AM

Great article. Thanks for share this.

07-14-2015 10:00 AM

Hi James,camja06



   Thank You for your comments, this document was changed.



Good Work.

07-13-2015 09:16 AM

It will not insert any z to attribute for custom table, only the table name will mandatory contain z at the begining. As mentioned before this allows you to add common antrybutes like sym and delete_flag and have standart functionality for them.

07-13-2015 08:45 AM

AHD04662





Hy cdtj,





   Thank you, i know, i´ll change this article.





   Now, we dont need type "z" because CA SDM will insert on the begins for us but if we type "z" CA SDM won't change our field.





Thank You

07-12-2015 10:17 PM

I would recommend using labels 'sym' and 'delete_flag' rather than 'zsym' and 'zdelete_flag', for consistency with the other reference tables.  The following are also good practice:

  • set a default value of '0' for 'delete_flag';
  • check 'Required' for both 'sym' and 'delete_flag';
  • flag 'sym' as indexed and unique;
  • set 'sym' as the Default Display Field;
  • add the new reference table to the appropriate Function Group (e.g. 'Change Order Reference')

After these little adjustments, when you come to create the detail and list forms for your new reference table (using the templates that WSP provides) they will inherit the behaviour that you would expect from the out-of-box forms, including access controls.

07-11-2015 04:17 AM

Hi,

seems like you have started to create one more great article!

I also want to notice that you can publish attributes without "z" prefix in your own tables.



Regards,

cdtj

07-10-2015 05:00 PM

Hi Gutis,



    Thank you for your comment, I´ll use it.



Regards

07-10-2015 04:51 PM

It would be nice to add instructions how to expose this table to SDM interface in order to add some information to it. From may experience additional tables are mostly created to have some additional classificators for incidents, CI and etc. So almost each time we create new table we have to expose it under administration tab somewhere under servicedesk node to allow add some values to this table.
