AWA EMI(External Monitoring Interface) does not capture TASK events(Tasks ended abnormally etc) .

  • 1.  AWA EMI(External Monitoring Interface) does not capture TASK events(Tasks ended abnormally etc) .

    Posted 05-21-2017 04:17 AM

    I have some issue in capturing task related messages( Tasks ended abnormally ) from EMI interface.

    I can successfully subscribed to the MessageBox Bean and can capture Agent's start/stop events but not the Task/Jobs ended with “ended abnormally” kind of events.

     I'm sure this is something related to a config and need someones help from the community.

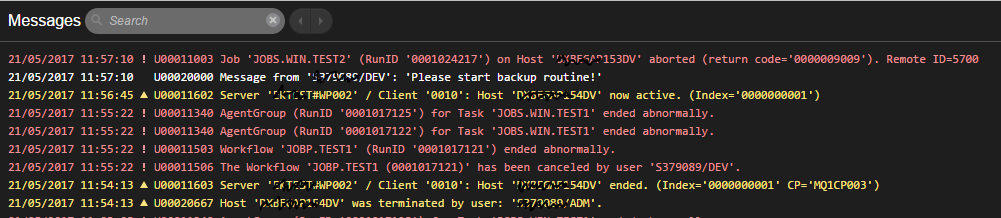

    My EMI conf is as below and the screenshot from java JMC console and the message window from AWI also attached below.

    ================================================================

    [COLLECTIONS]

    agents=300

    cache=600

    client=3600

    database=600

    licences=3600

    queues=120

    servers=300

    usage=1800

    users=300

    tasks=20



    [TASKS]

    state=1560-1564,1800-1899,1300-1999

    object=*

    type=JOBS,JOBP,C_HOSTG,SCRI

    user=*

    queue=

    ================================================================

     7q0i5oli2xhe.pnghttps://us.v-cdn.net/5019921/uploads/editor/4d/7q0i5oli2xhe.png" width="1158">


    Rgds,

    IP



  • 2.  AWA EMI(External Monitoring Interface) does not capture TASK events(Tasks ended abnormally etc) .

    Posted 05-21-2017 06:35 AM
    Found the issue...
    In addition to the EMI config,  Message window settings of AWI user used to configure EMI also should be modified to the correct scope ...
    see the attached screenshot..
    bf0m0k5b1vs5.pnghttps://us.v-cdn.net/5019921/uploads/editor/45/bf0m0k5b1vs5.png" width="487">

    So now the Task events are captured in the EMI
    knqcy3nqgmjo.pnghttps://us.v-cdn.net/5019921/uploads/editor/9r/knqcy3nqgmjo.png" width="951">
